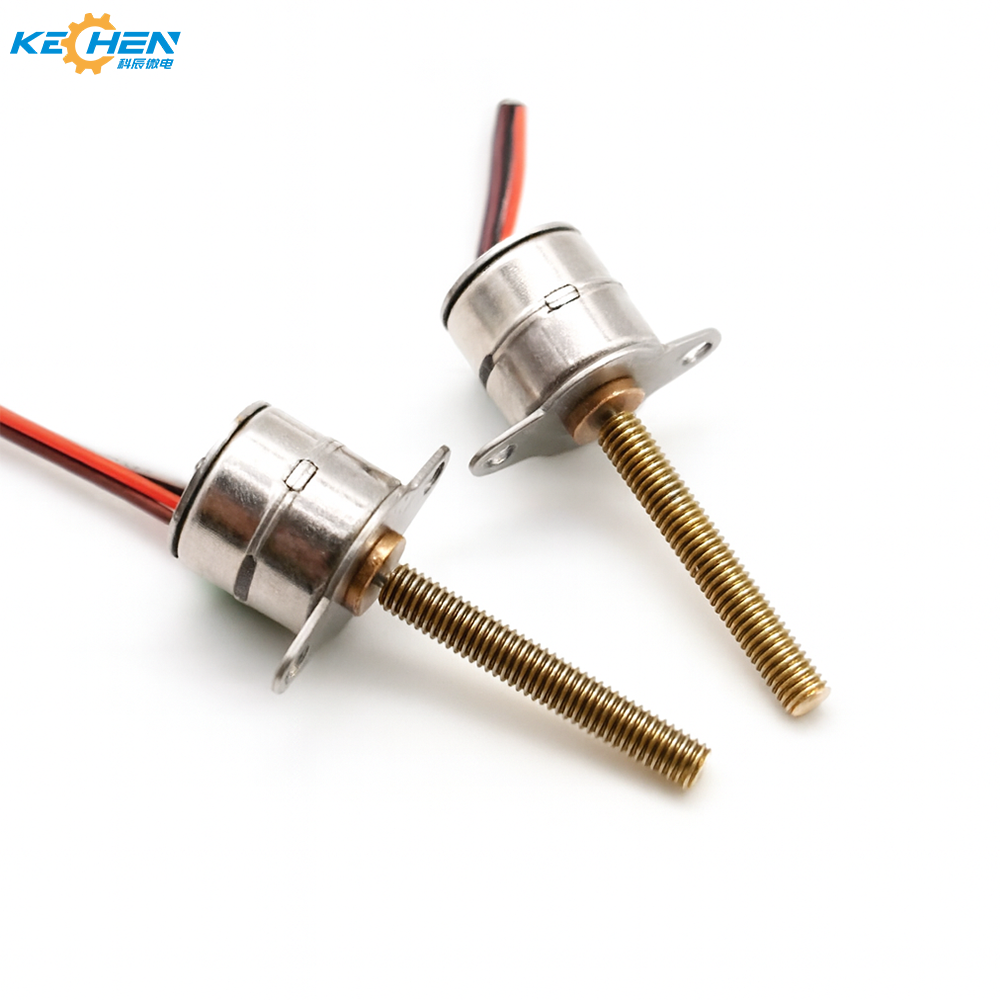

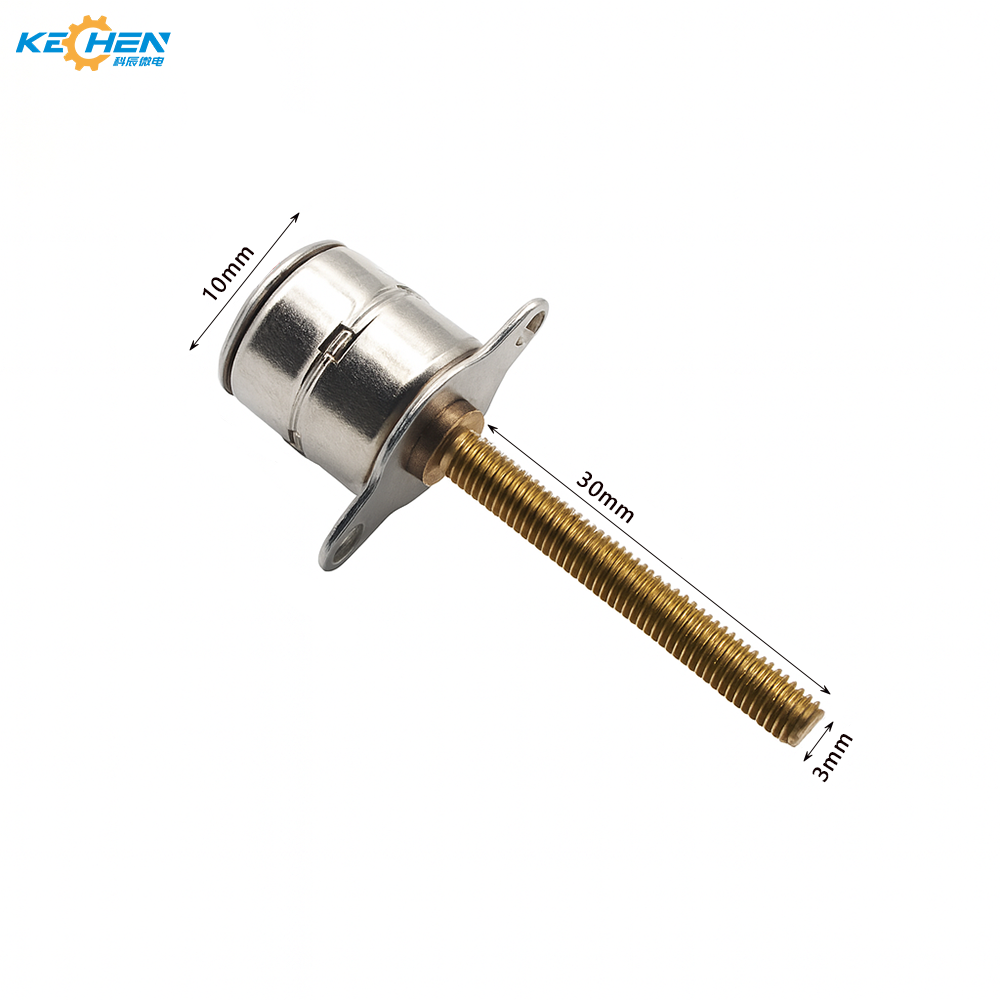

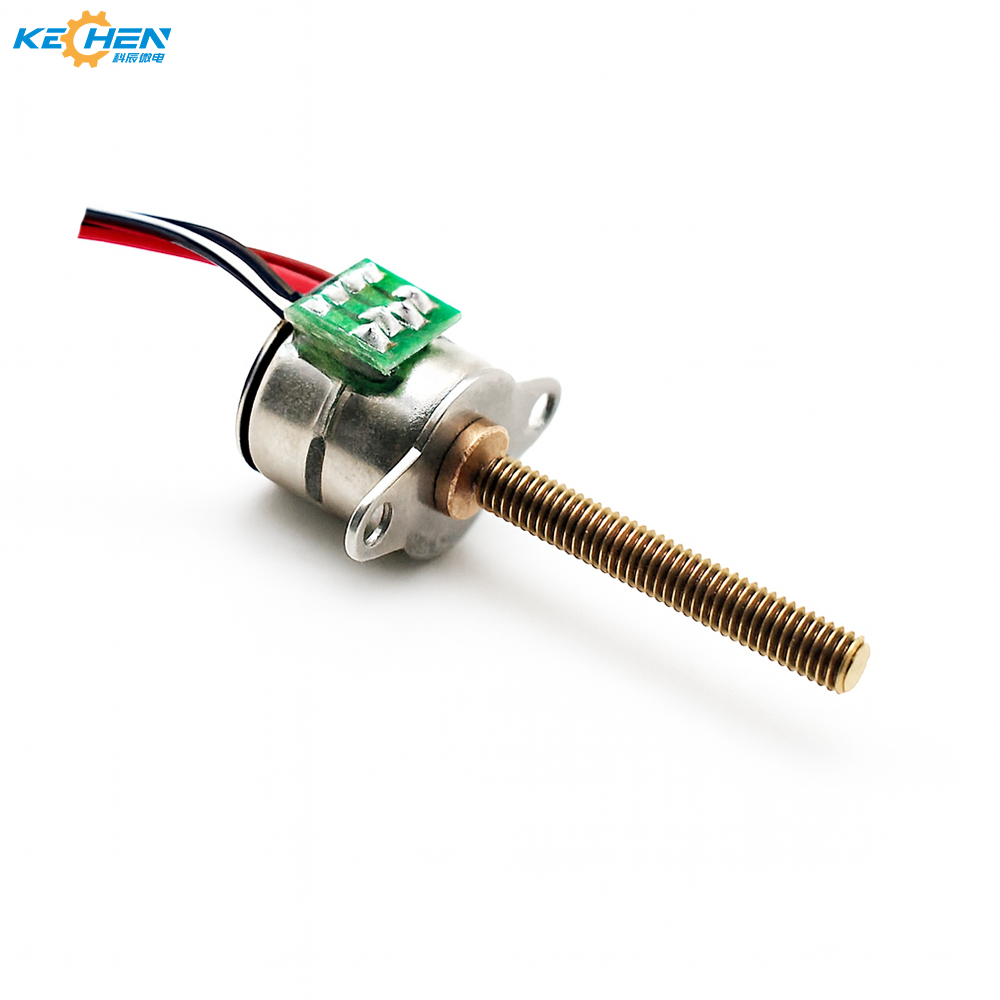

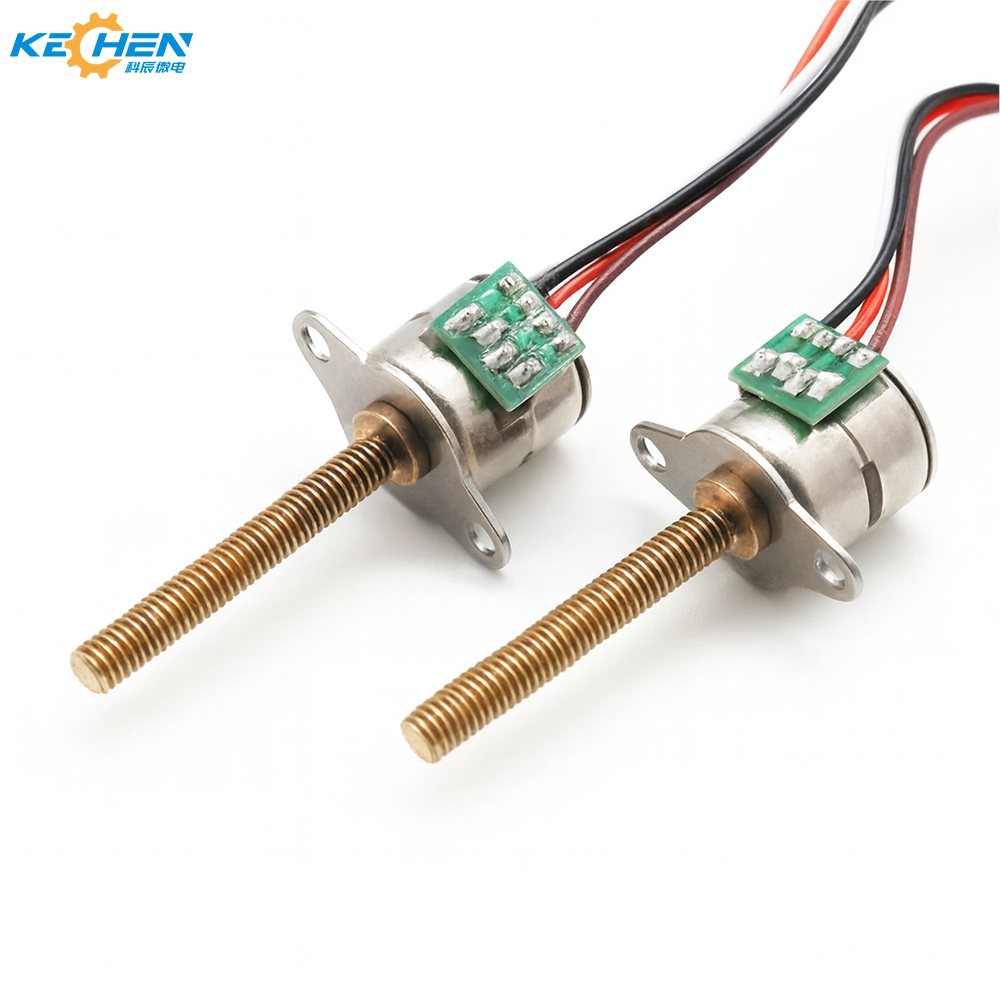

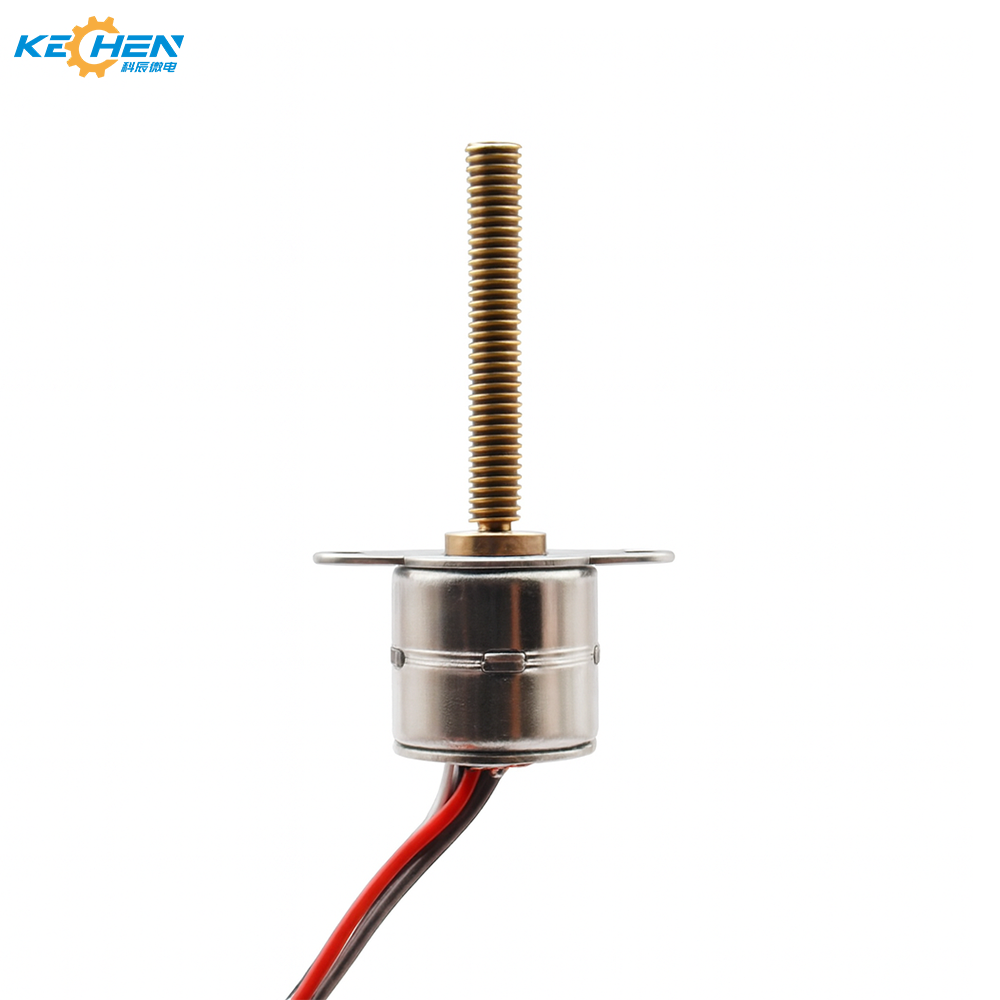

10mm Permanent Magnet Linear Stepper Motor with M3 Leadscrew 10BY Micro Precision Linear Actuator 3V/5V 2-Phase for Automation

Product Description

Products Description
10mm Stepper Motor - Specifications
Motor Diameter 10 mm
Shaft Diameter 3.0 mm (customizable)
Shaft Length 4–10 mm customizable
Step Angle 18°
Phases 2-phase
Driving Mode Bipolar or Unipolar
Rated Voltage 3.3 V / 5 V / 6 V
Rated Current 80–200 mA per phase
Coil Resistance 10–50 Ω
Holding Torque 25 gf·cm
Pull-in Frequency 200–500 pps
Pull-out Frequency 400–800 pps
Operating Temperature −10 °C to +60 °C
Noise Level <40 dB
Line sequence A+A-B+B-
Weight 7 g
10mm Stepper Motor Specification Drawing 1
10mm Stepper Motor Specification Drawing 2
10mm Stepper Motor Product Image
Recommend Products
Recommended Products Showcase
Motor raw materials
Motor Raw Materials Chart
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Manufacturing Facilities
Facility Image 1
Facility Image 2
Facility Image 3
Certifications
Product Quality Certifications
Application Scenario
Application Scenario Overview
Application Area Details
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Share Chart
Market Distribution Graphic
Logistics and Transport Distribution
Frequently Asked Questions
Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend a suitable motor according to your request.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC, we can make it too.
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may require a mold charge and design fee.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirming the required motor specs, we will quote and provide a proforma invoice for samples. Once we receive the payment, we will proceed with sample preparation.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we check signed samples and drawings to ensure material quality; for the production process, we conduct tour inspections in-process and a final inspection to guarantee qualified products before shipping.
Q: What certifications do you have?
A: We currently have CE, RoHS, ISO13485, IATF16949, and REACH certifications.
