Axon Motor
1 / 5
| Model No. | GM1812-N20 |

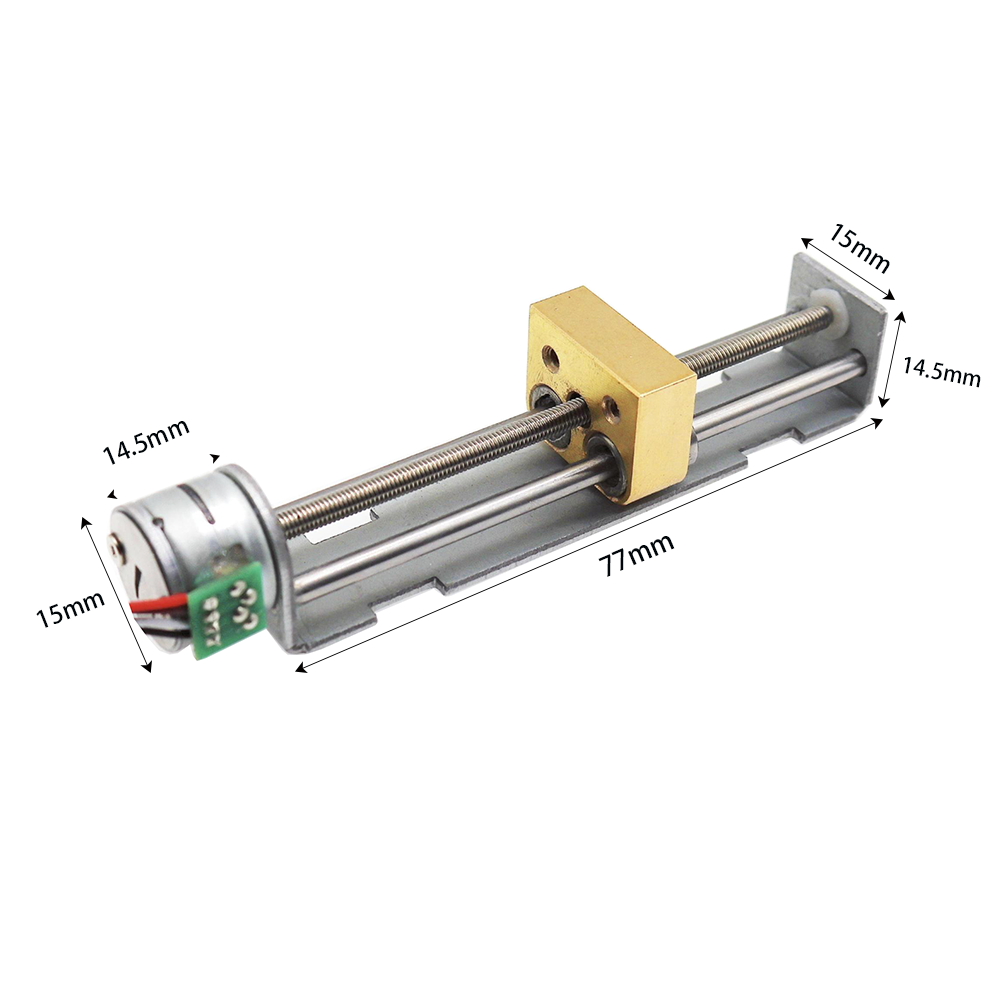

| Motor diameter | 15mm |
| Rated Voltage | 3.7V/5V/12V |
| RATED VOLTAGE | 9V DC |
| CURRENT PER PHASE | 500 mA/PHASE |
| NO.OF PHASES | 2 PHASES |
| EXCITATION METHOD | 1-2 PHASES EXCITATION |
| DRIVE MODE | BIPOLAR DRIVE |
| PULL-OUT Thrust | MORE THAN 230g AT 125PPS |
| MAX RESPONSE FREQUENCY | MORE THAN 1300PPS |
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
This micro stepper motor is highly versatile and widely used in medical equipment, 5G applications, automotive electronics, smart home systems, smart commercial locks, smart grid tech, and automated consumer devices.
Yes, this micro motor series can be configured for various rated voltages including 3.7V, 5V, and 12V, or customizable up to 9V DC depending on project requirements.
The motor delivers a pull-out thrust greater than 230g at 125PPS, and supports a maximum response frequency of more than 1300PPS.
Yes. Customizations for shaft configurations, output gears, gearboxes, and leads/connectors are fully supported to match specific mechanical designs.
Absolutely. All materials, including stators, rotors, and housing components, undergo rigorous screening to ensure compliance with global environmental regulations.
The production processes are certified under strict quality management standards, ensuring consistent, high-precision manufacturing output for all micro motor lines.
