Q1:
What are the key technical advantages of the GMP16-030 Planetary Gear Motor?

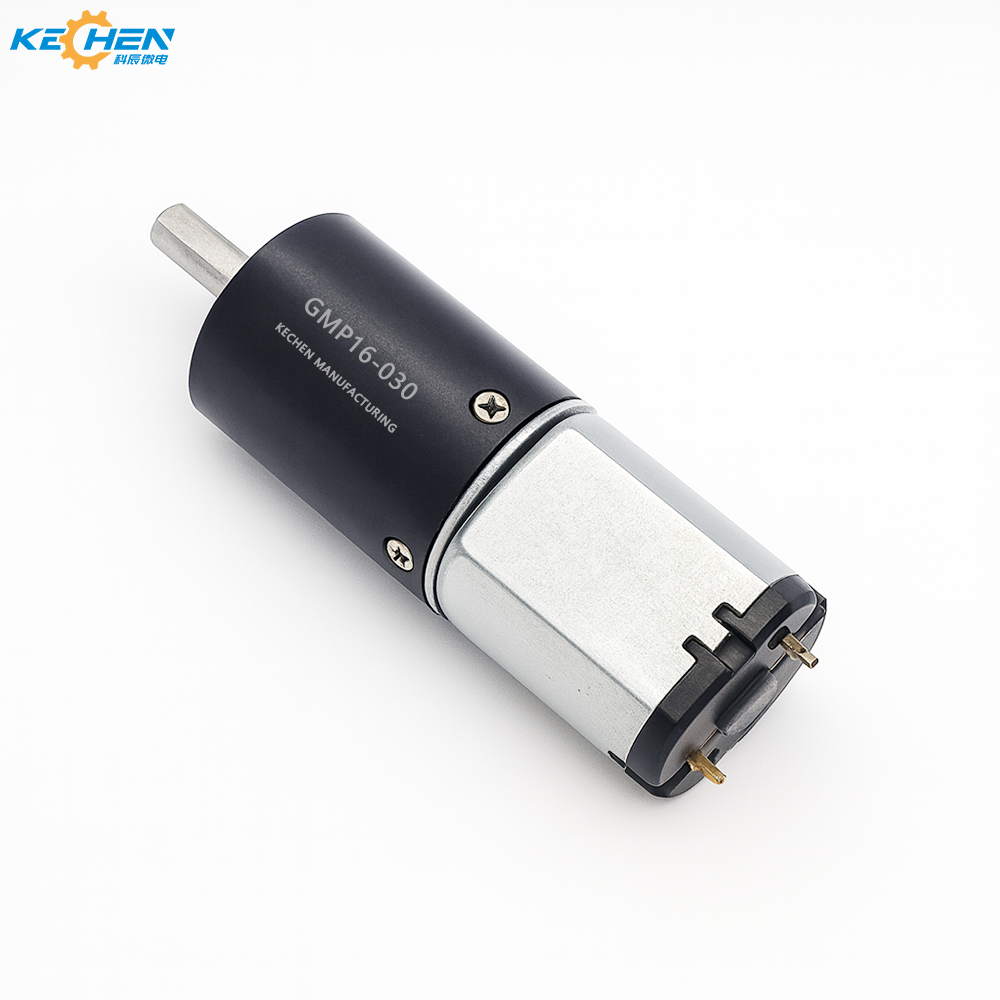

The GMP16-030 motor features high torque efficiency in a compact 15.4mm diameter size. By using a planetary gear system, it distributes loads across multiple gears, allowing for higher rated torques (up to 3.5 Kgf-cm) and enhanced durability compared to standard spur gearboxes.
Q2:
Can the motor shaft design be customized?

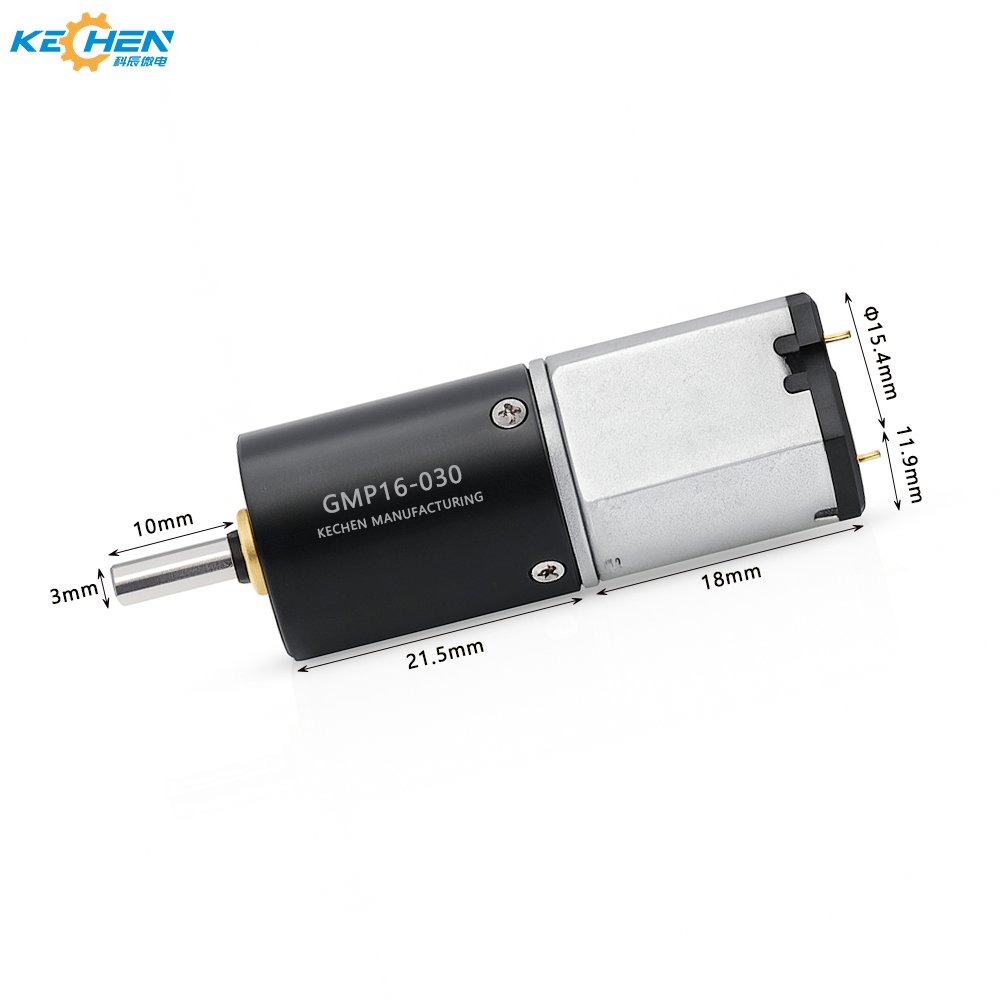

Yes. The standard configuration comes with a Φ3mm D-cut (0.5mm depth) shaft. However, custom configurations, including different shaft lengths, round shafts, or special keyways, can be manufactured to fit your specific application demands.
Q3:
What rated voltages are available for this motor model?
The GMP16-030 planetary gear motor is designed for versatility and is available in multiple rated voltage variants, including 3V, 5V, 6V, 9V, 12V, and 24V.
Q4:
Does this planetary gear motor support closed-loop speed control?
Yes. It supports encoder options with resolutions of 3ppr, 7ppr, and 12ppr, allowing developers to implement precise closed-loop speed and position feedback controls.
Q5:
What certifications do these motors comply with for international markets?
All components are produced under high-standard quality control, conforming to ISO9001 and ISO13485 systems. The product meets CE, REACH, ROHS, and IATF16949 requirements, ensuring compliance for medical, automotive, and consumer electronics applications globally.
Q6:
What is the typical weight and power range for the GMP16-030?

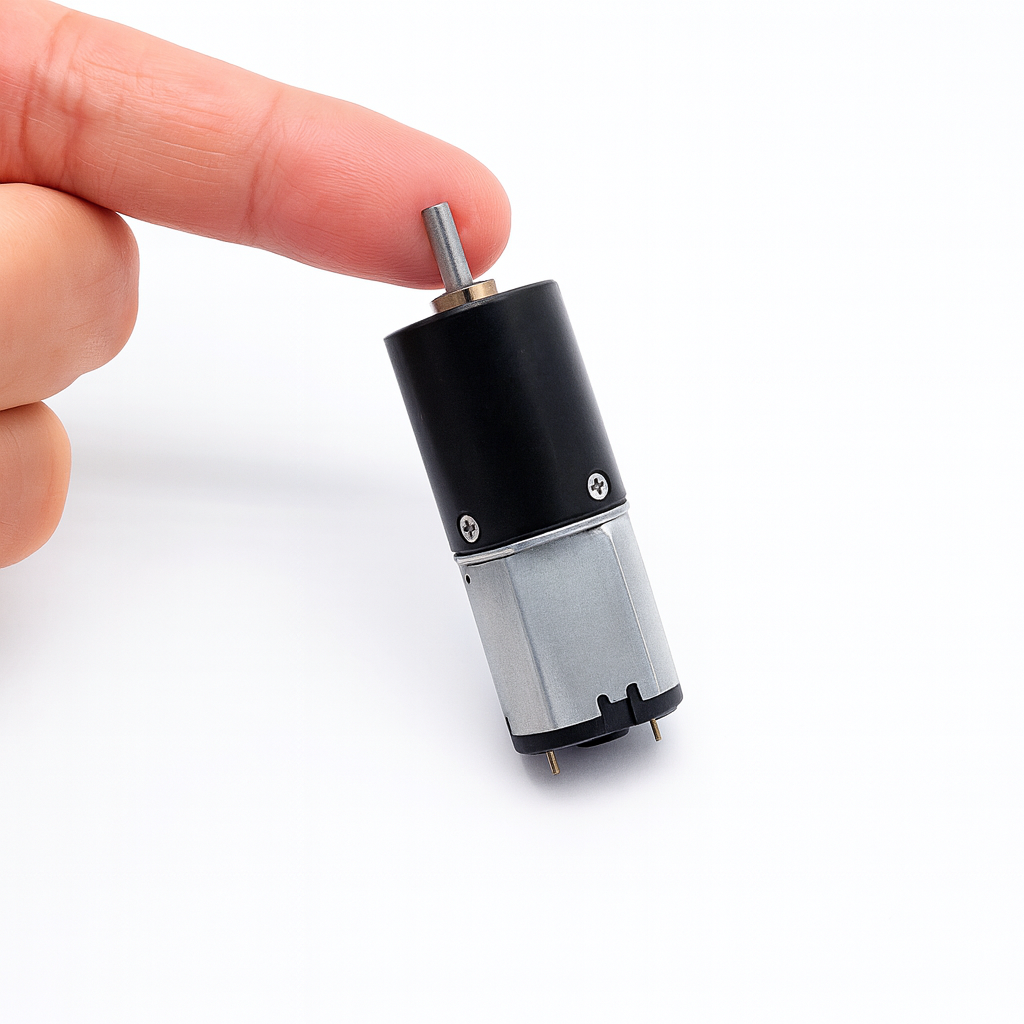

The motor has an ultra-lightweight design weighing approximately 35g. It operates efficiently within a power range of 1.6W to 1.8W, making it ideal for battery-operated handheld devices and portable electronics.
