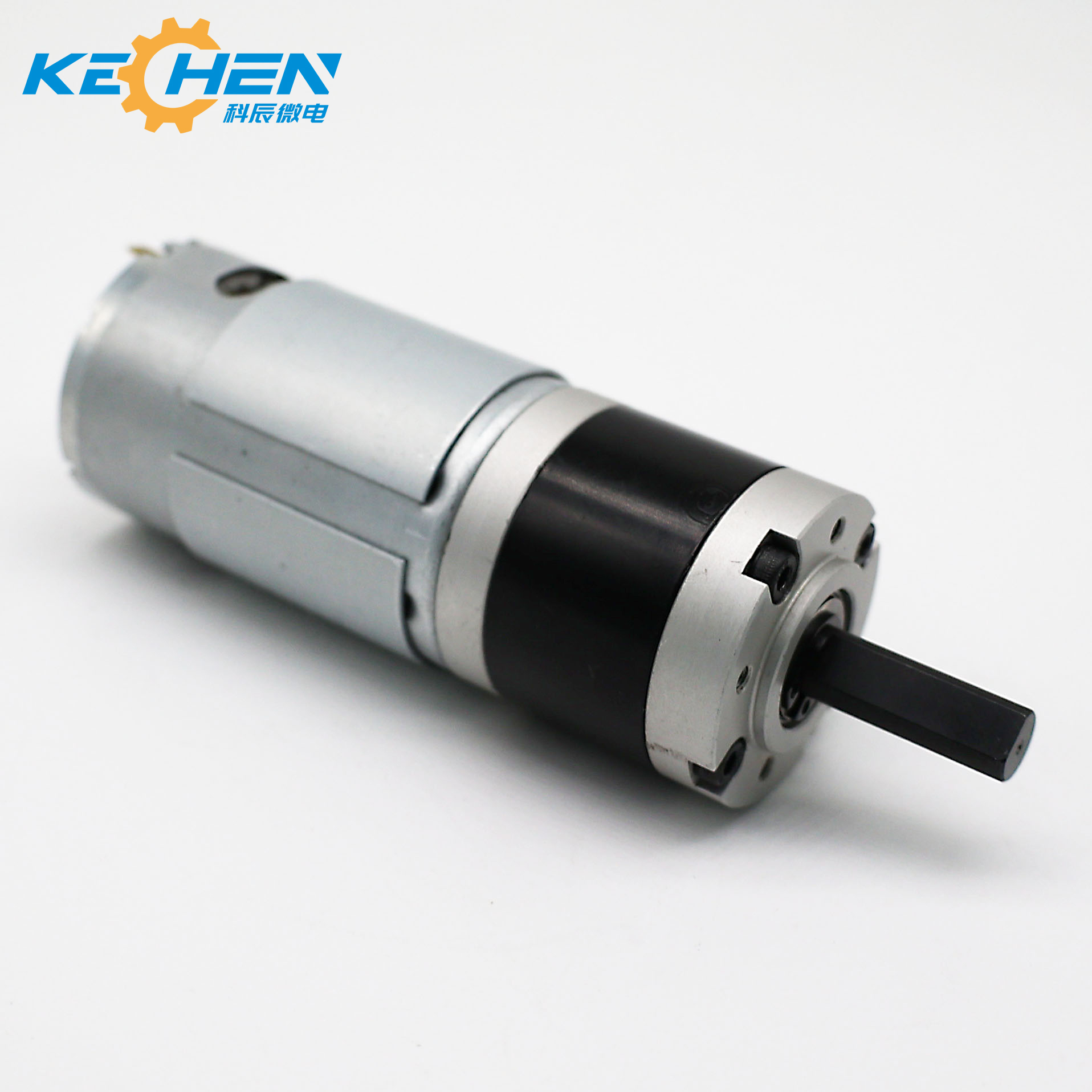

GMP42-775 Mini Planetary Gear Motor Brush 42mm Asynchronous DC Motor 12V/24V Vending Machines Certified ROHS Rotation CCW CW

Product Description

Products Description

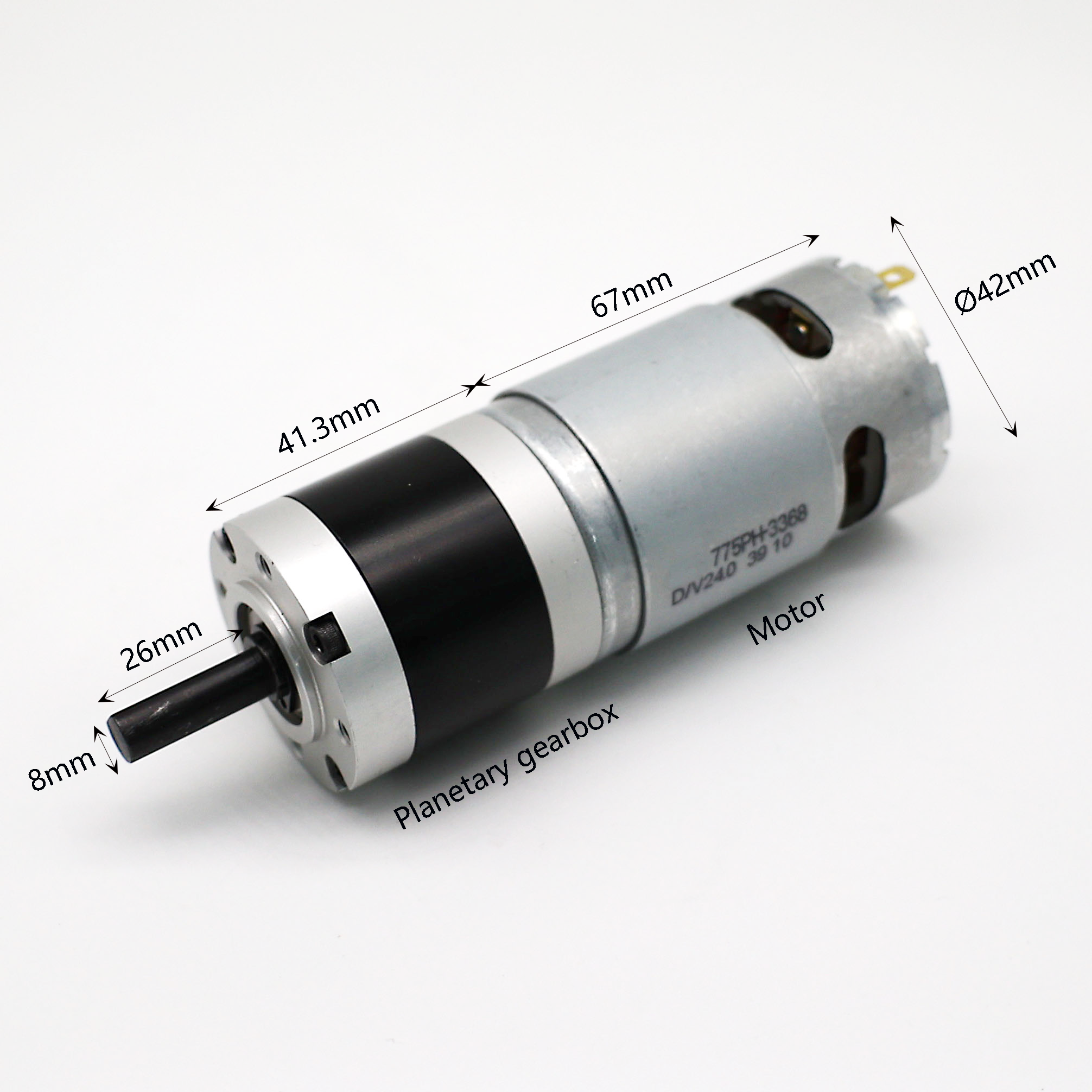

42mm planetary gear motor
42mm Planetary Gear Motor
  • Model: GMP42-775 geared DC motor
  • Gearbox: metal planetary gear reducer
  • Rated Voltage: DC 6V, 9V, 12V, 24V, 36V
  • Rated Torque: Max. 200 Kgf-cm
  • Size: Φ42 * L TBD
  • Shaft: concentric driveshaft, Φ8mm/Φ10mm D-cut 1mm, custom
  • Commutation: Carbon brush/Graphite brush
  • Construction: Permanent Magnet
  • Encoder: Magnetic/Optical encoder
  • MOQ: 500 pcs

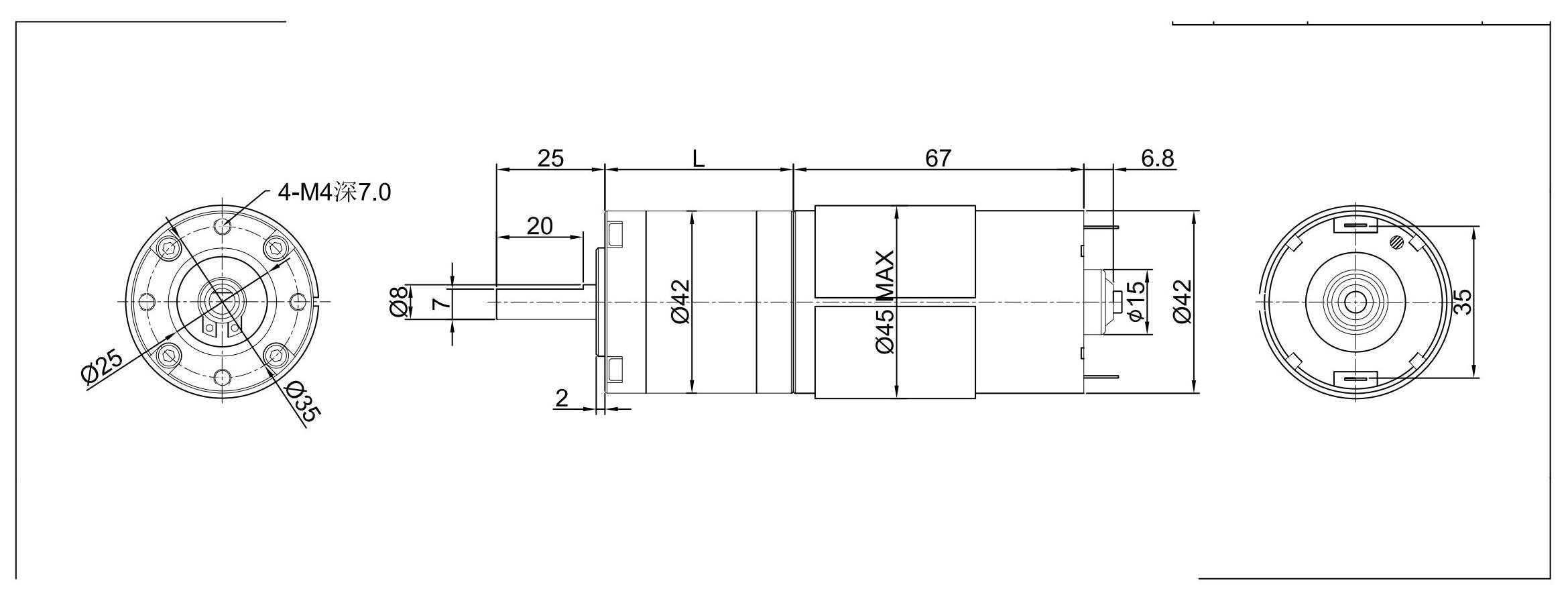

Planetary gear motor detailed view

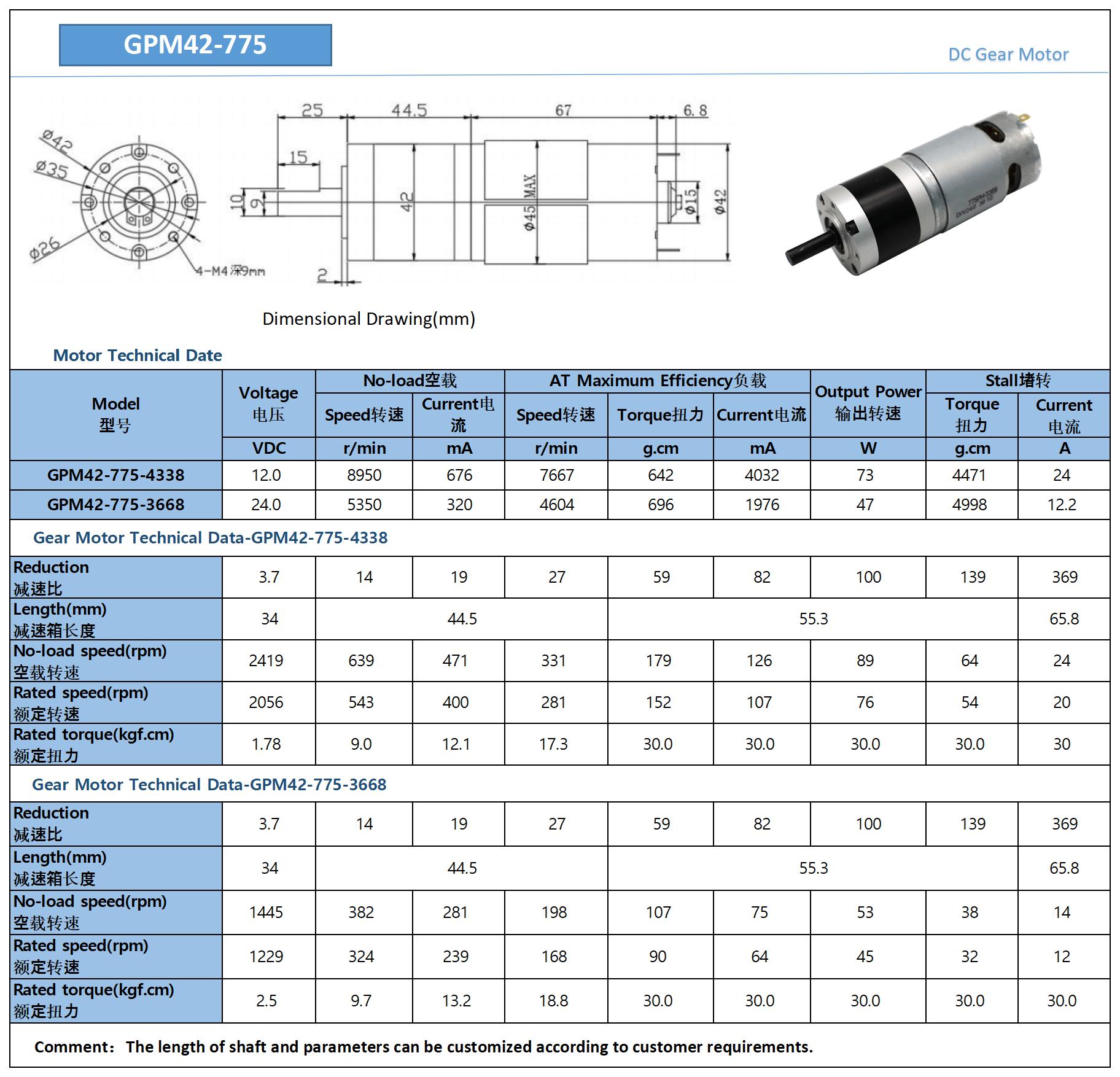

Planetary gear motor dimensions and parts
Recommend Products
Recommended motor type 1
Recommended motor type 2
Motor raw materials
Raw materials for micro motors
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile

Established in August 2009, the company is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products of the company include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc.

Since its establishment, the company has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has built a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Production facility and factory floor
Certifications
Quality certifications
Application Scenario
Application scenarios for motors
Medical equipment Sphygmomanometer, massaging mattress, air pump, urine analyzer.
Business Machines Intelligent robot, copiers and scanners, 3D printers, tattoo pen.
Electric powered equipment Electric toothbrush, electric tool, electric toy car, electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, smart coffee machine, hair drier, fascia gun, fan, air cleaner, hair removal device, door lock, intelligent door lock.
Food and Beverage Hand blenders, blenders, mixers, coffee machines, food processors, juicers, fryers, ice makers, soy bean milk makers.
Robotics Servicing robotics, food delivery robot, reception robot, medical serving robot, AGV & AMR, conveying robot, inspection robot.
Global Market Distribution
Global Market Map 1
Global Market Map 2
Global Market Distribution Map
Frequently Asked Questions
What is the minimum order quantity (MOQ) for the 42mm planetary gear motor?
The minimum order quantity (MOQ) for our GMP42-775 planetary geared DC motor is 500 pcs.
What options are available for the motor's shaft?
The motor features a concentric driveshaft. Standard options are Φ8mm or Φ10mm with a D-cut of 1mm. Customized shafts are also available to meet your specific requirements.
Which rated voltage specifications do you support?
The 42mm planetary gear motor supports various rated voltages including DC 6V, 9V, 12V, 24V, and 36V.
Can I get an integrated encoder with this planetary gear motor?
Yes, our motors can be configured with either a Magnetic encoder or an Optical encoder based on your control system needs.
What are the major applications for these micro motors?
Our micro motors are widely utilized across multiple industries, including medical equipment, business machines, smart home devices, electric appliances, food and beverage processing equipment, and advanced robotics (such as servicing, delivery, and medical robots).
What is the maximum torque capability of the GMP42-775 model?
Thanks to its high-durability metal planetary gear reducer, the GMP42-775 motor can deliver a maximum rated torque of up to 200 Kgf-cm.
