Axon Motor
1 / 5
| Model | Voltage | No-load | AT Maximum Efficiency | Output Power | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Torque | Current | Torque | Current | |||
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
| 370-12560 | 8.0 | 2400 | 15 | 1970 | 16 | 69 | 0.55 | 90 | 0.32 |
| 370-18260 | 12.0 | 7900 | 50 | 6820 | 32.7 | 320 | 3.84 | 240 | 2.0 |
| 370-10800 | 24.0 | 5100 | 15 | 4310 | 26.3 | 82 | 1.97 | 170 | 0.45 |
| Reduction | 37.3 | 150 | 250 | 324 | 600 | 972 | 1700 | 2900 |
| Length(mm) | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
| No-load speed(rpm) | 211.8 | 52.6 | 31.6 | 24.4 | 13.2 | 8.1 | 4.7 | 2.7 |
| Rated speed(rpm) | 182.8 | 45.4 | 27.3 | 21.1 | 11.4 | 7.0 | 4.0 | 2.5 |
| Rated torque(kg.cm) | 0.73 | 2.9 | 4.9 | 6.4 | 10.0 | 10.0 | 10.0 | 10.0 |
| Stall Torque (kg.cm) | 5.37 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Reduction | 37.3 | 150 | 250 | 324 | 600 | 972 | 1700 | 2900 |
| Length(mm) | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
| No-load speed(rpm) | 136.7 | 34.0 | 20.4 | 15.7 | 8.5 | 5.3 | 3.0 | 2.0 |
| Rated speed(rpm) | 115.6 | 29.0 | 17.2 | 13.3 | 7.0 | 4.4 | 2.5 | 2.0 |
| Rated torque(kg.cm) | 0.59 | 2.73 | 3.95 | 5.11 | 9.47 | 10.0 | 10.0 | 10.0 |
| Stall Torque (kg.cm) | 3.8 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |

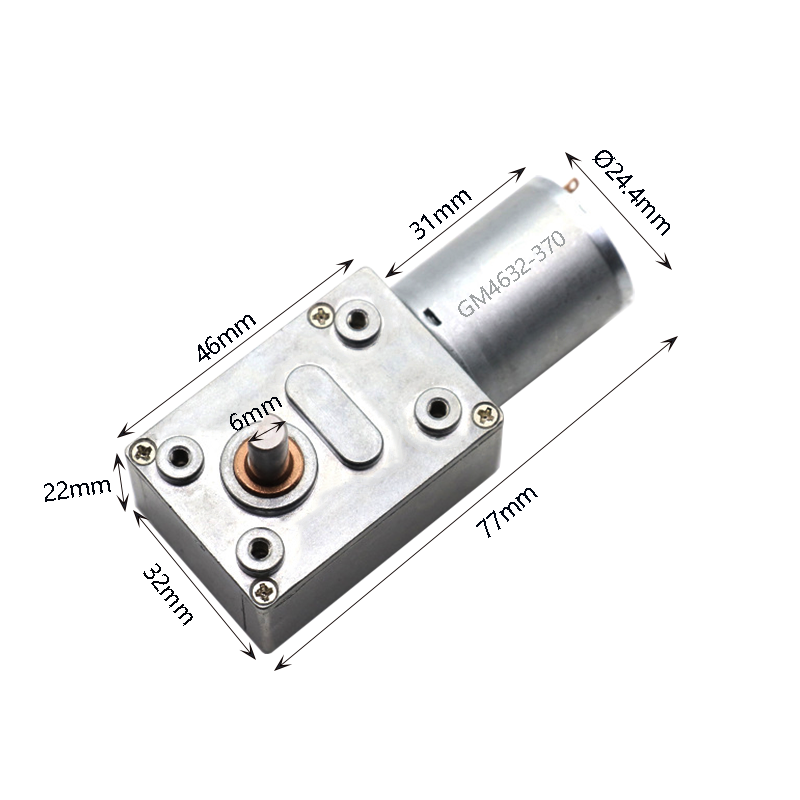

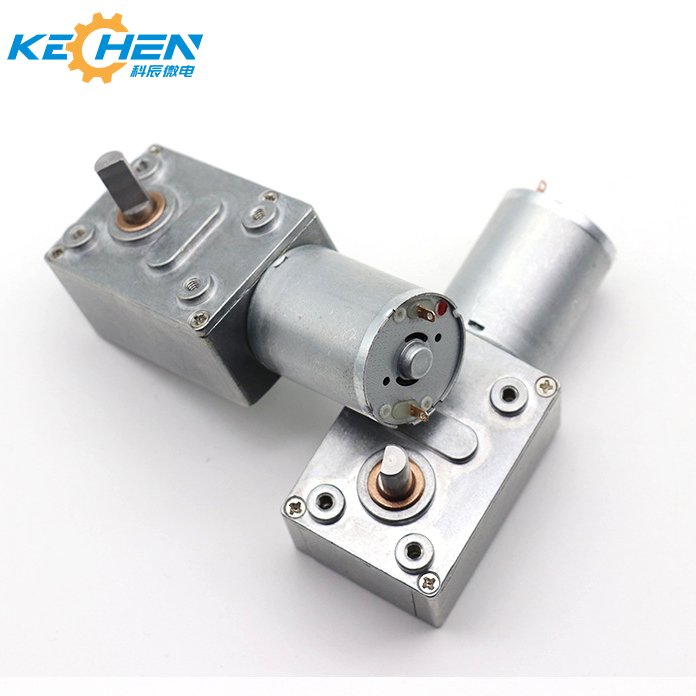

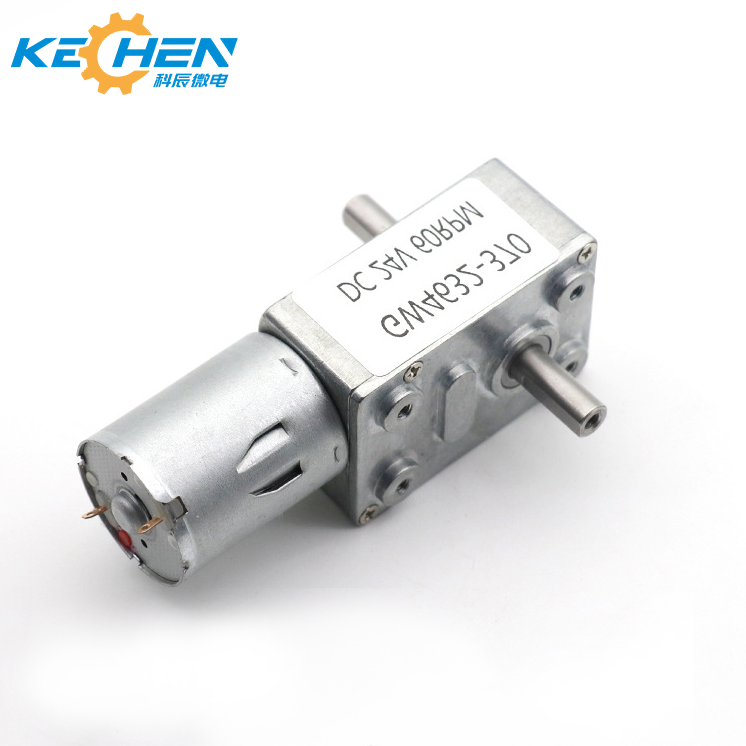

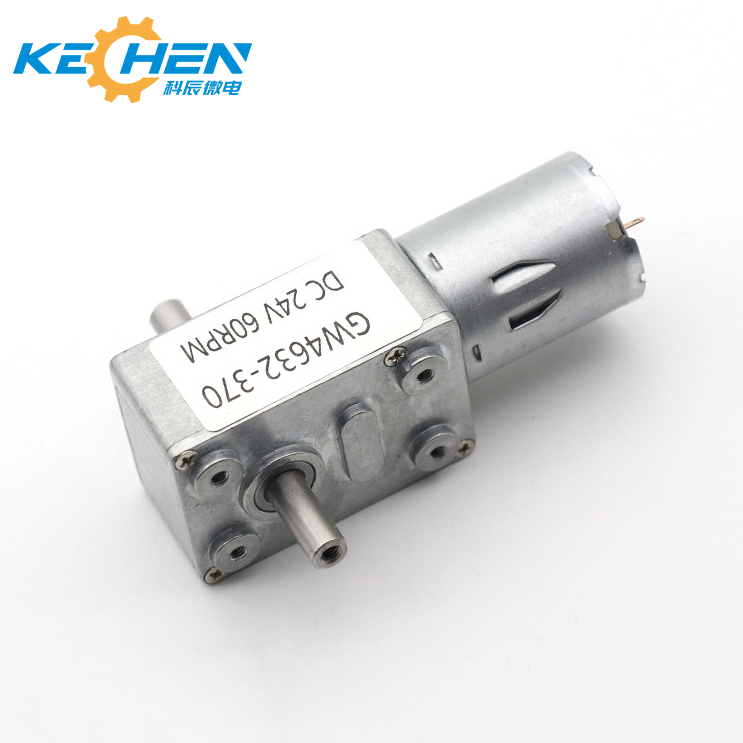

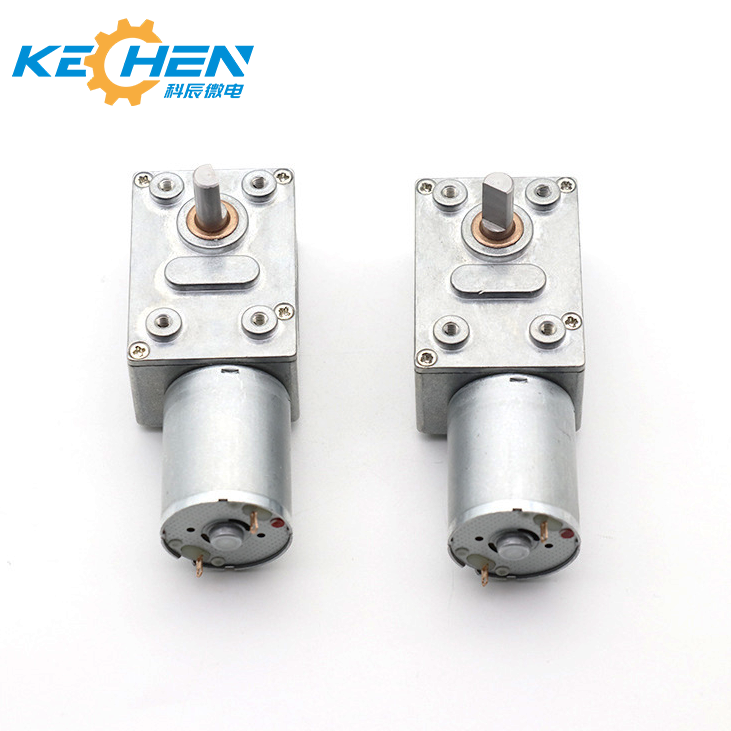

The GM4632-370 features a square gearbox with a metal worm gear reducer and a right-angle output shaft design.
The motor supports multiple rated voltage options, including DC 6V, 9V, 12V, and 24V setups, depending on your application requirements.
Yes. While the standard output shaft diameter is Φ6mm in a right-angle configuration, custom shaft options are available based on project needs.
Our standard Minimum Order Quantity (MOQ) for the GM4632-370 series is 100 pieces.
This model supports either Magnetic or Optical encoders to meet different feedback control precision needs.
They are highly suitable for smart home appliances, medical equipment, office automation (copiers/3D printers), commercial intelligent locks, and robotics.
