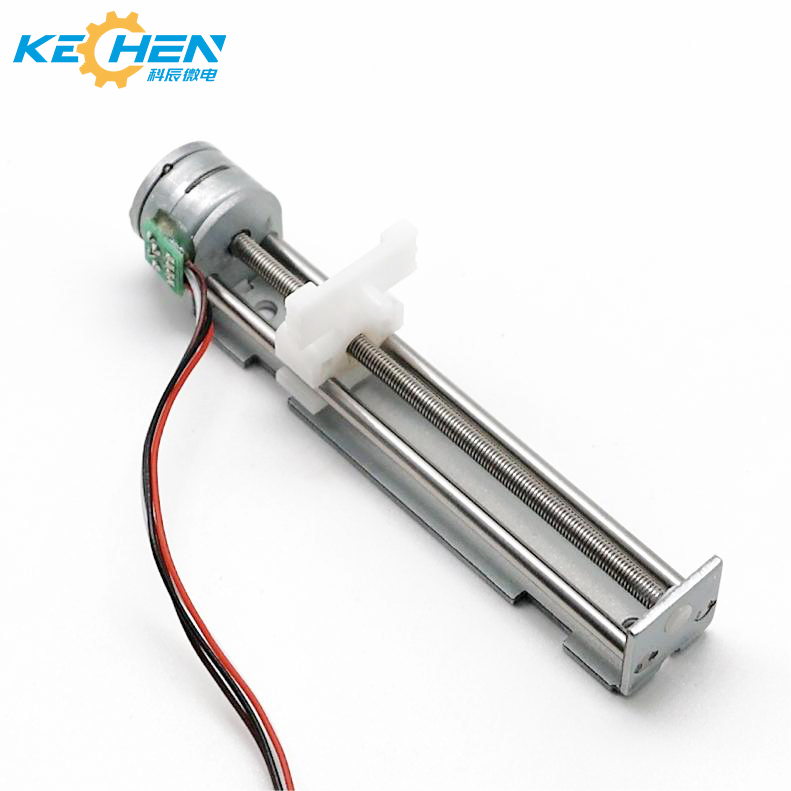

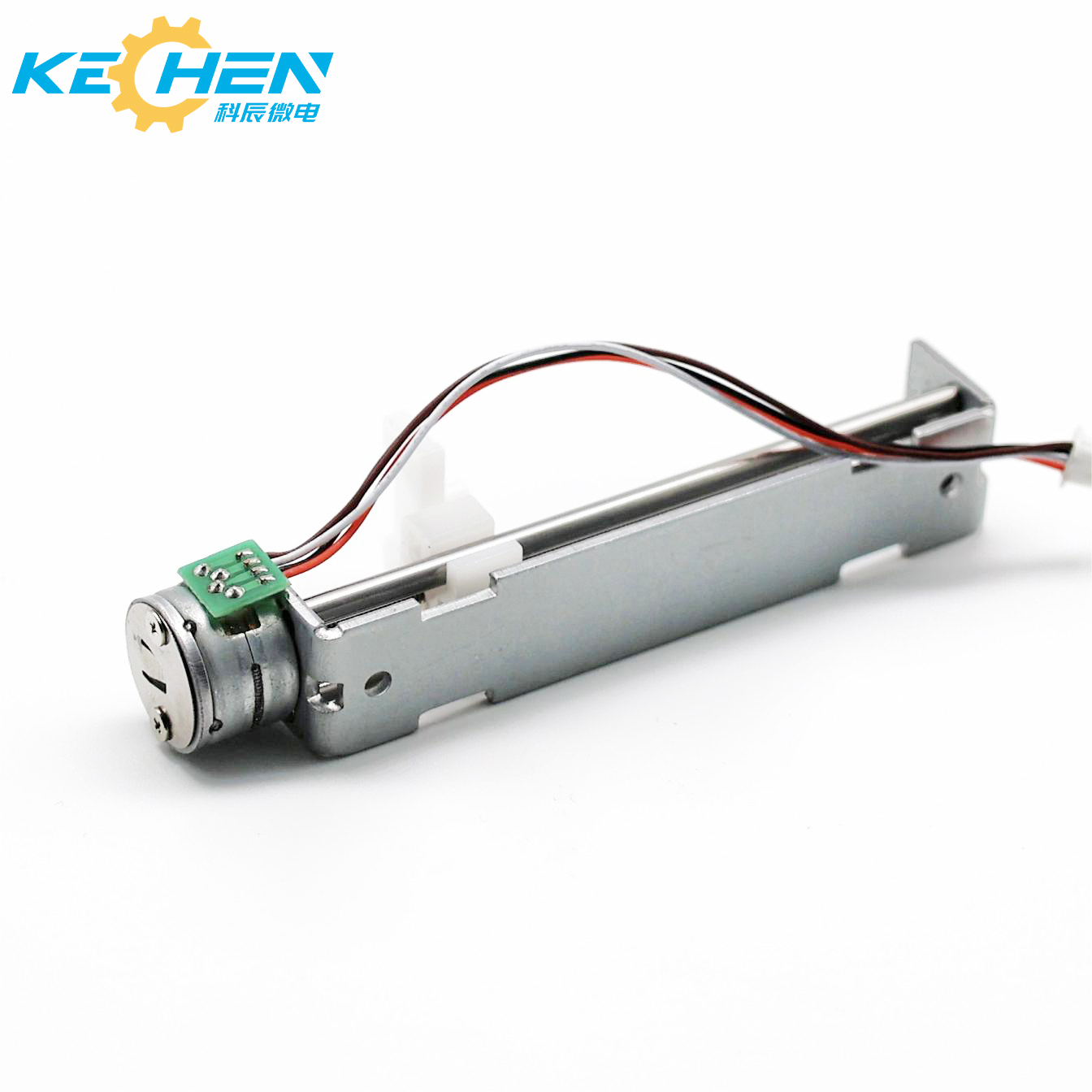

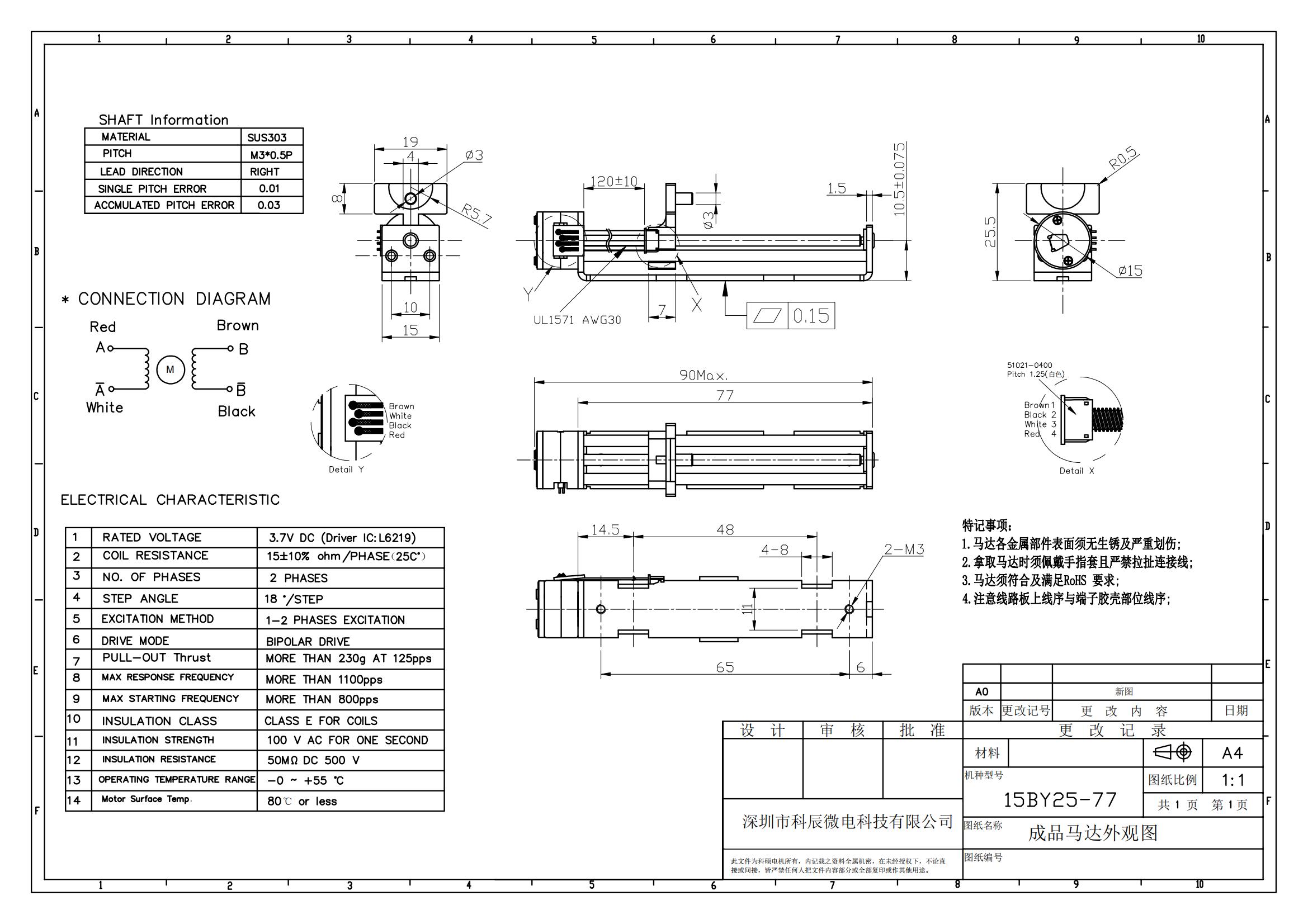

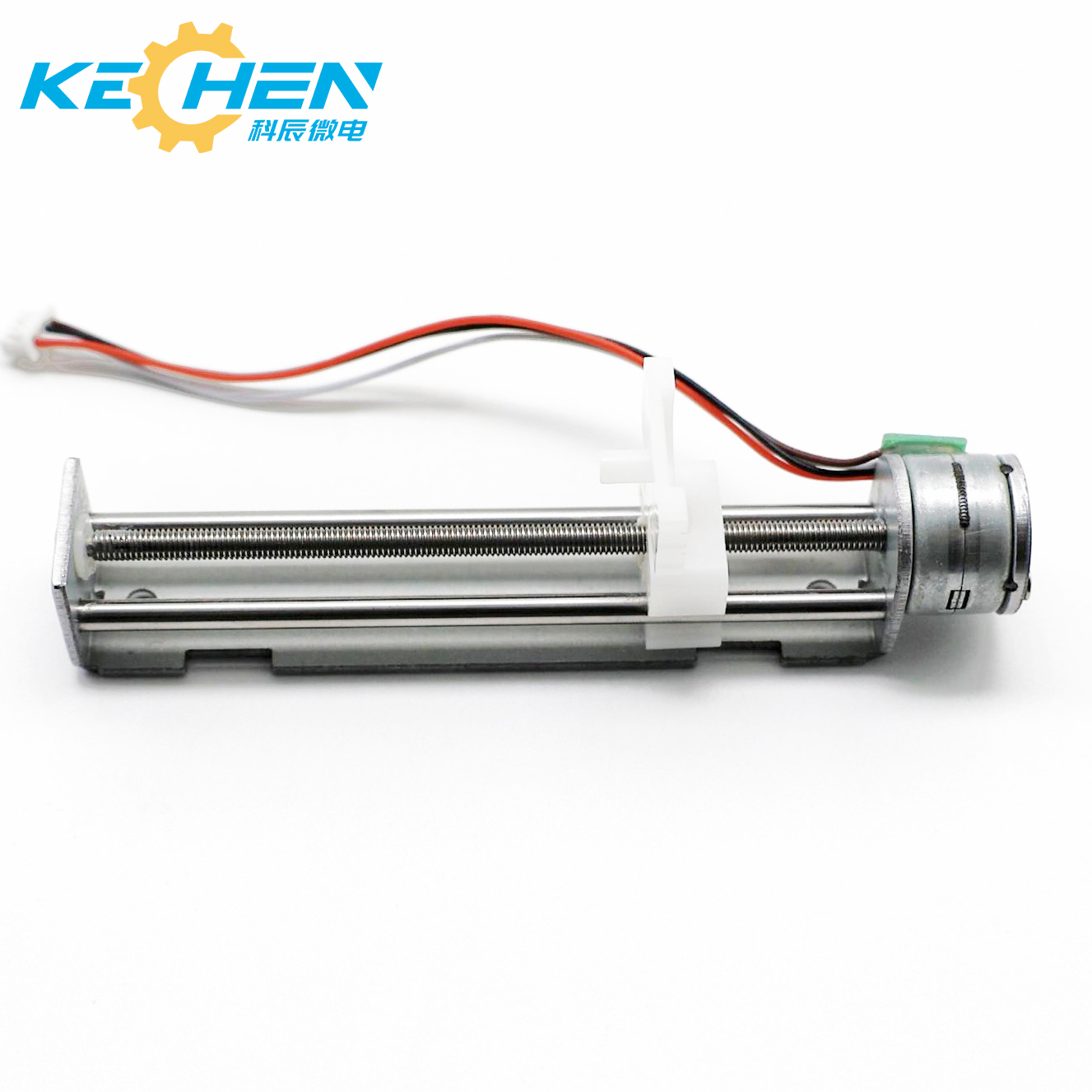

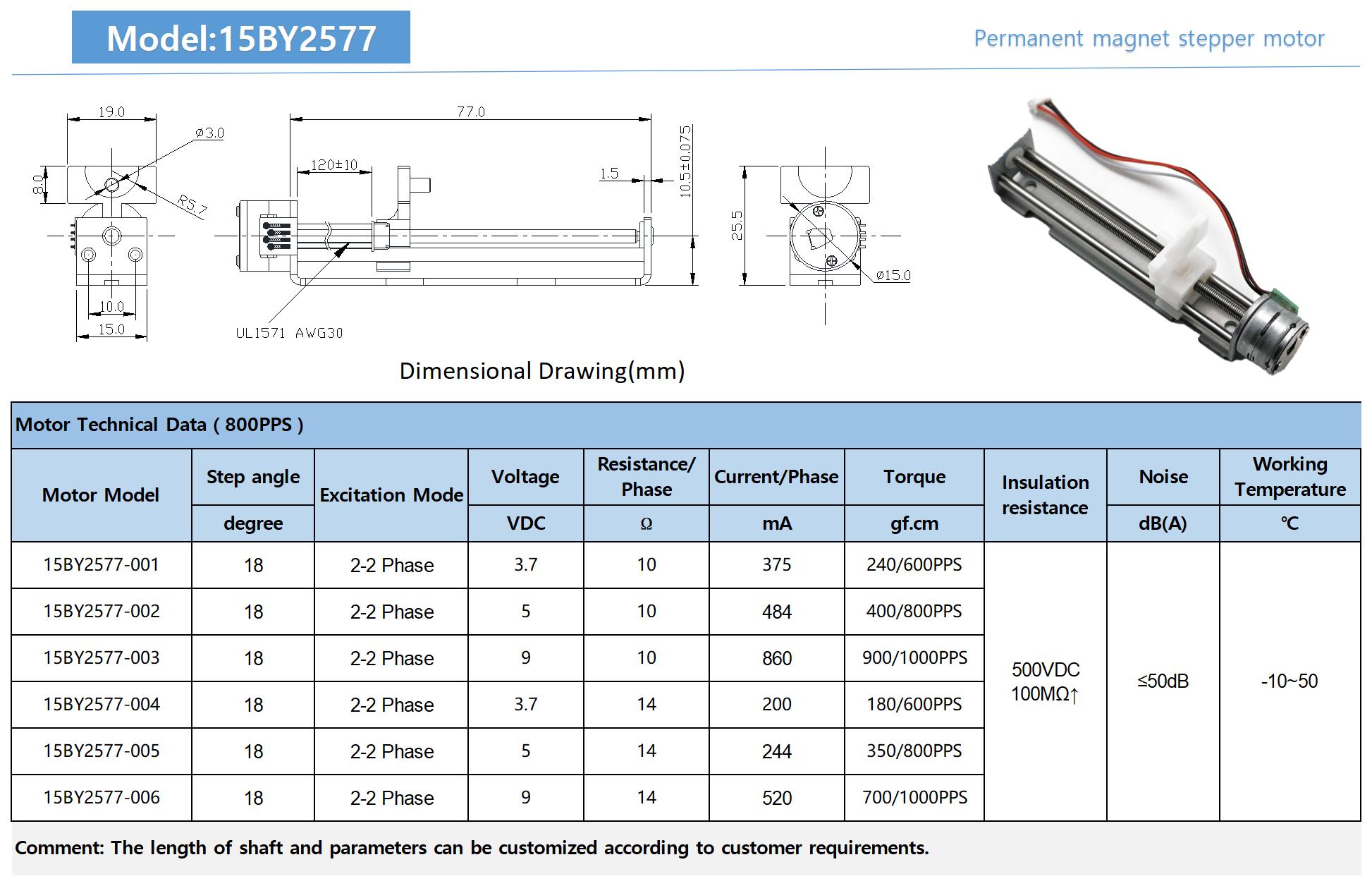

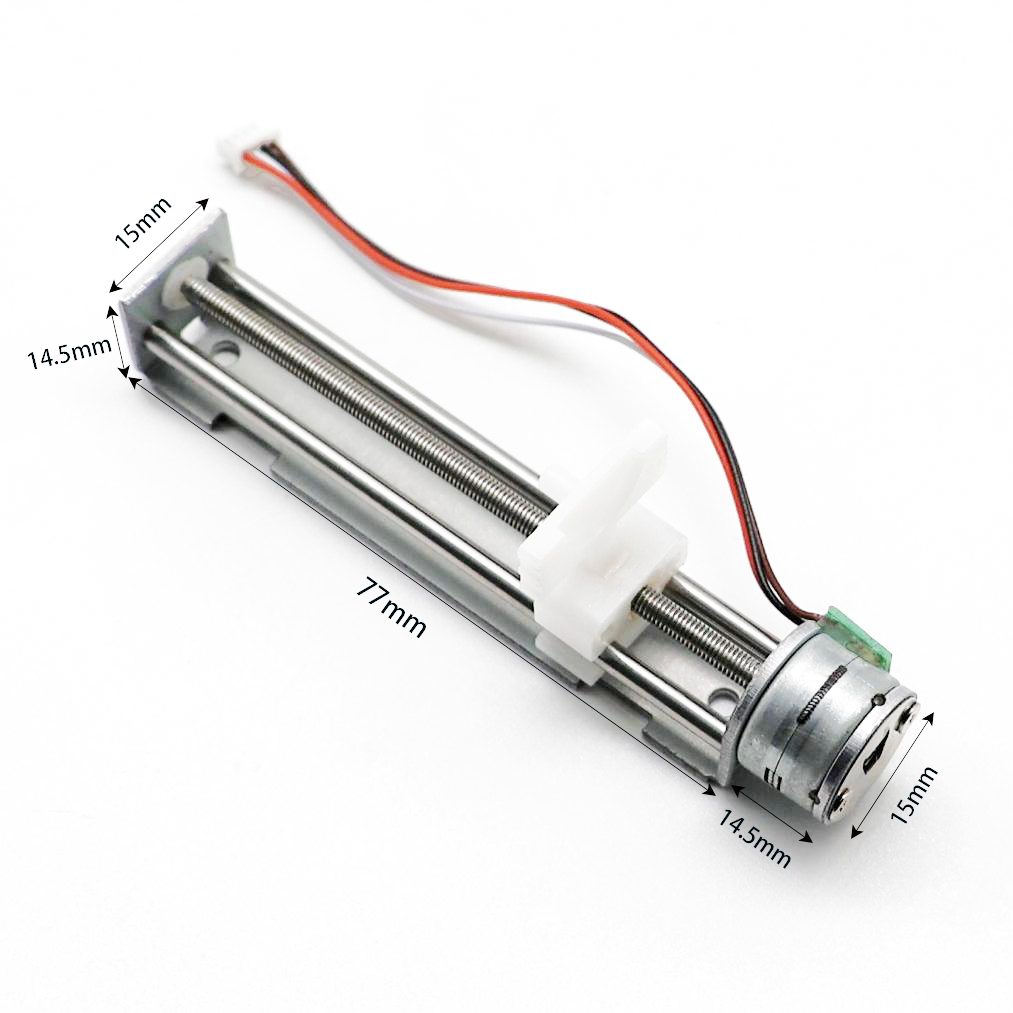

| 15BY-77 Linear Stepper Motor Specifications | |
| Motor type | Permanent-Magnet Linear Stepper |

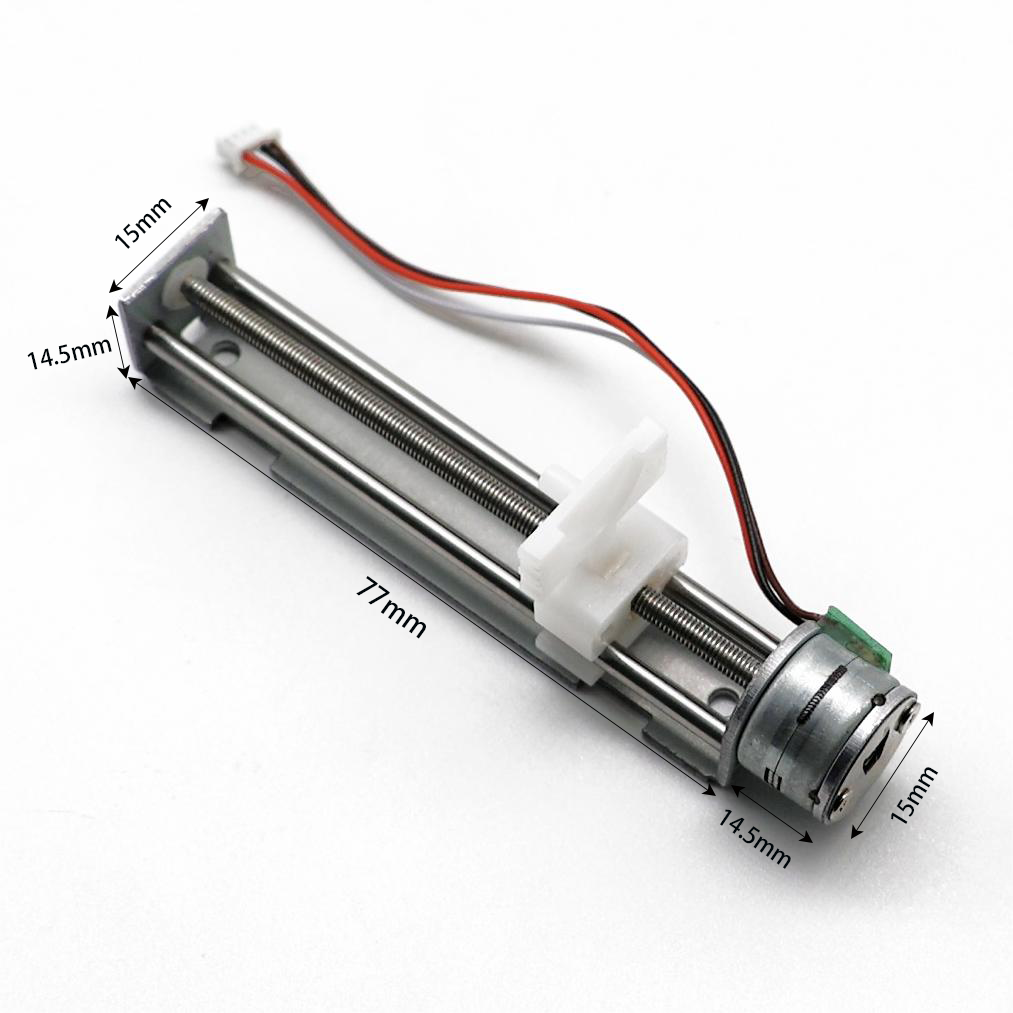

| Motor diameter | 15mm |
| Travel guide length | 77mm |
| Phase | bipolar / 2-phase |
| Step Angle | 18° / step |
| Rated Voltage | 5V/12V DC |
| Rated Power | 4.6 W |
| Rated Current | 600 mA |
| Lead Screw | (Lead screw pitch) 0.5 mm (“Pitch M3 * P0.5”) |
| With slider | plastic slider |
| Holding torque | 900 g·cm /1000 PPS |
| Thrust / Pull-out | > 700 g.cm |
| Line sequence | A+A-B+B- |
| Terminal model | 1.25/1.5/2.0/2.54 |
Established in August 2017, the manufacturer is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since its establishment, the manufacturer has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
