Products Description

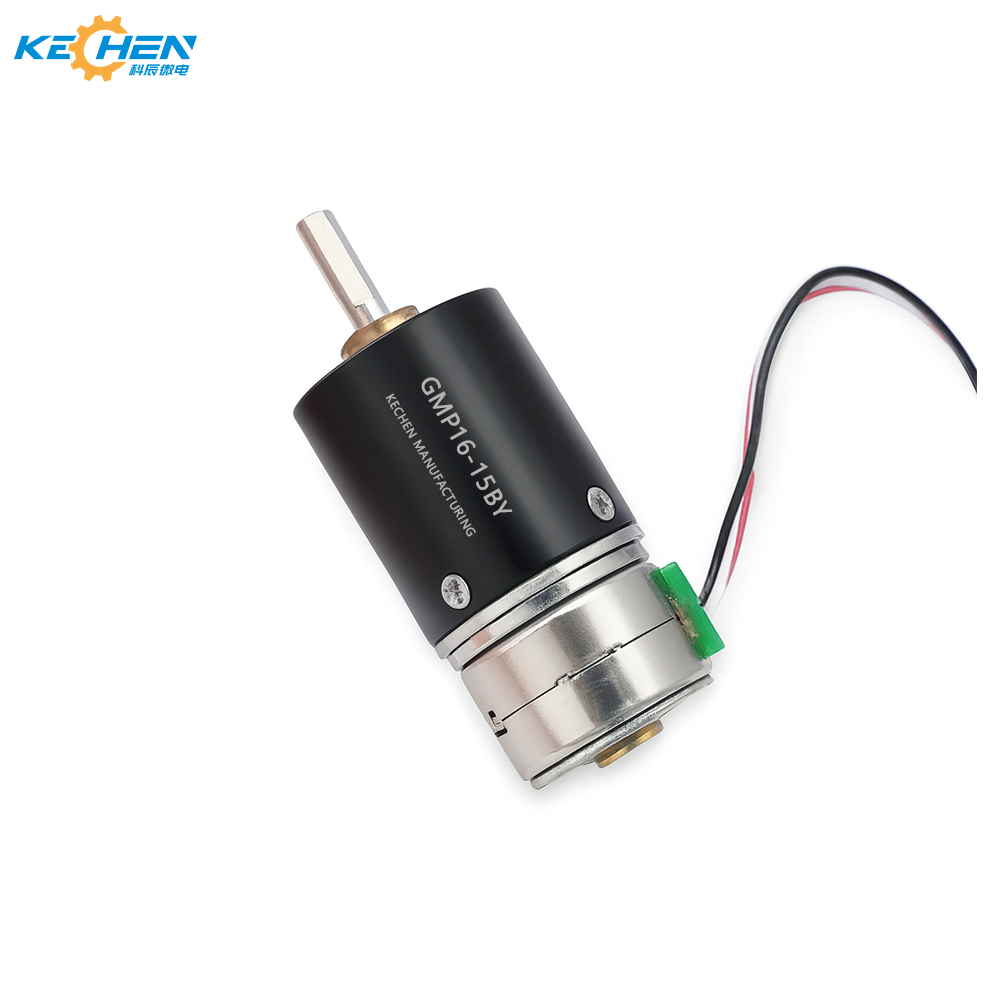

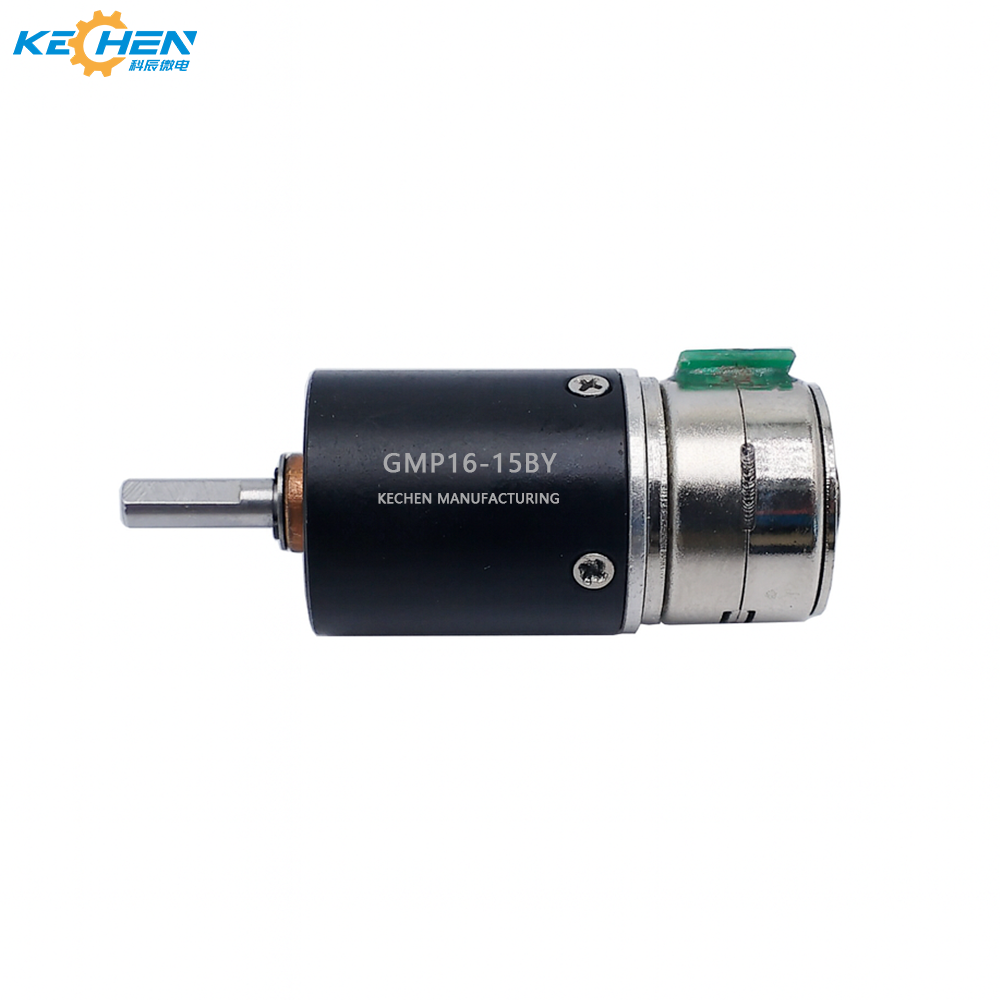

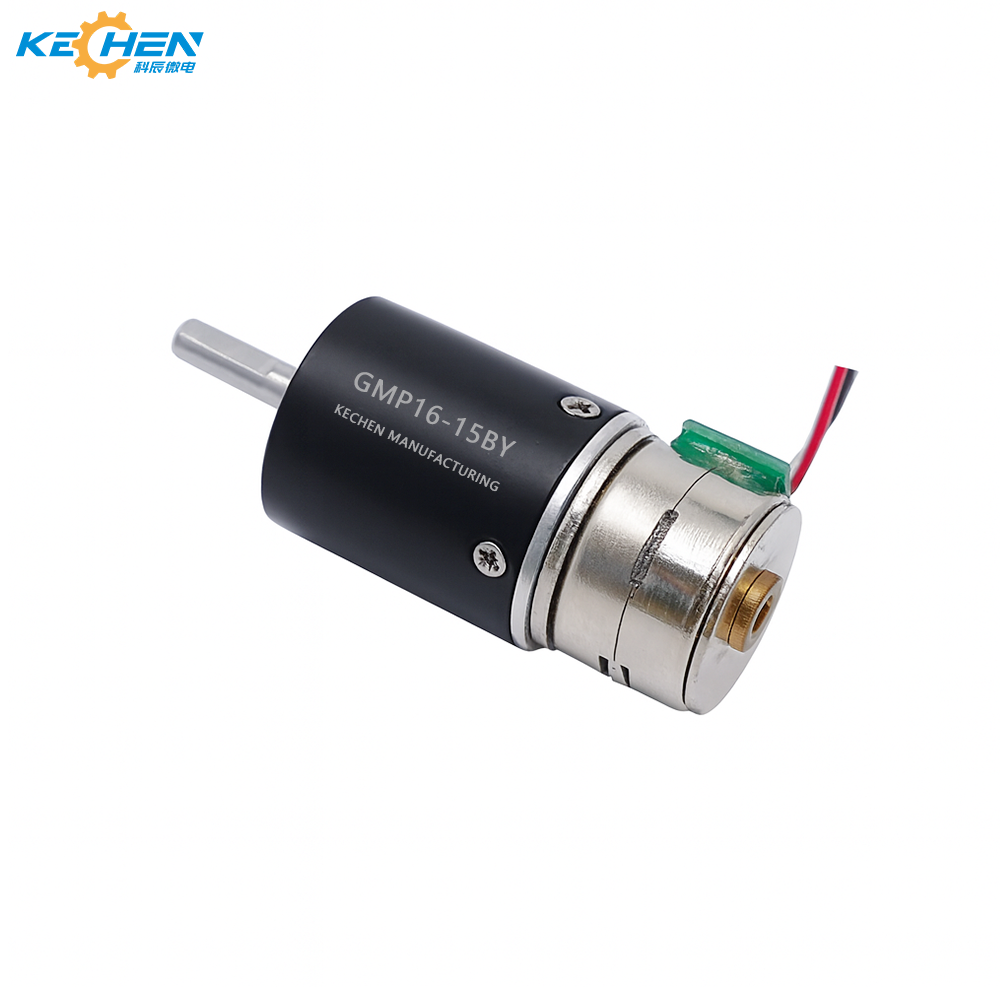

| GMP16-15BY Stepper Motor Specifications |
| Motor model |
GMP16-15BY |
| Motor Type |
15.0mm PM Stepper Motor |

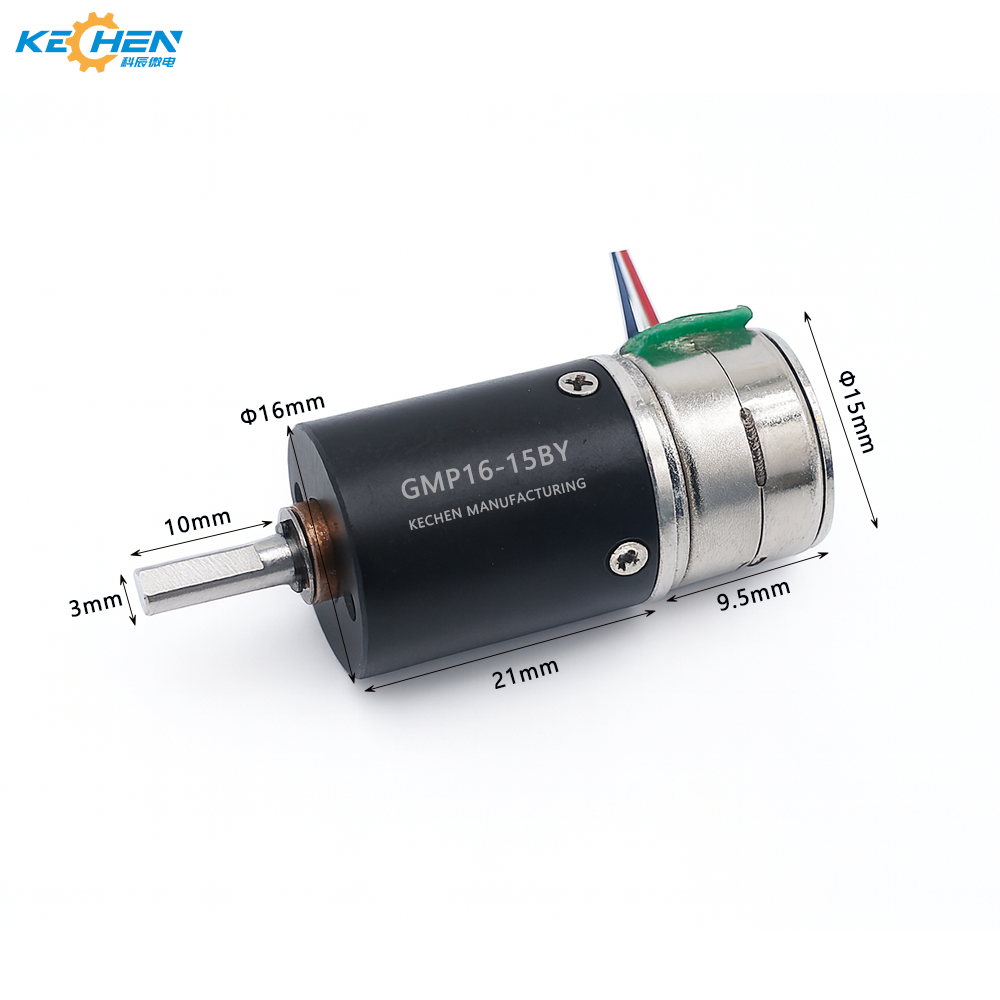

| Motor Dimensions |
Φ15.0mm x 11mm |
| Rated Voltage |
5.0 V DC |
| Phases |
2-phase, 4-wire |
| Step Angle |
18° / step |
| Gear Ratio |
16:1 / 29:1 / 53:1 / 72:1 / 104:1 / 231:1 / 284:1 / 561:1 / 690:1 / 850:1 / 1014:1 |
| Coil Resistance |
10 Ω - 40Ω / phase (±10%) |
| Pull-out Torque |
MORE THAN 180g AT 700pps |
| OPERATING TEMPERATURE RANGE |
−0 ~ +55 °C |
| Final Output Step Angle |
0.34 ° / STEP |
| Line sequence |
A+A-B+B- |
| Terminal model |
1.25 / 1.5 / 2.0 / 2.54 |
Recommend Products
Motor raw materials
Production Equipment
Company Profile
Established in August 2017, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, the facility has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Application Scenario
| Industry Category |
Specific Applications |
| Medical equipment |
Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines |
Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment |
Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home |
Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock. |
| Food and Beverage |
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics |
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
Global Market Distribution
FAQ
What are your main products?
We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors, etc. You can check the specifications for above motors on our website or email us to recommend the needed motors per your specification.
How do I select a suitable motor?
If you have motor pictures or drawings to show us, or if you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, required lifetime, and noise level etc., please do not hesitate to let us know. We can recommend a suitable motor according to your request.
Do you offer customization services for your standard motors?
Yes, we can customize according to your request for the voltage, speed, torque, and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, capacitors, or EMC, we can accommodate that as well.
Can I have samples for testing first?
Yes, definitely you can. After confirming the required motor specifications, we will quote and provide a proforma invoice for samples. Once we receive the payment, we will proceed with producing the samples accordingly.
How do you ensure motor quality?
We have our own strict inspection procedures: for incoming materials, we check against signed samples and drawings to ensure qualification; for the production process, we conduct in-process tour inspections and a final inspection to guarantee qualified products before shipping.
What certifications do you have?
We currently hold CE, ROHS, ISO13485, IATF16949, and REACH certifications.
