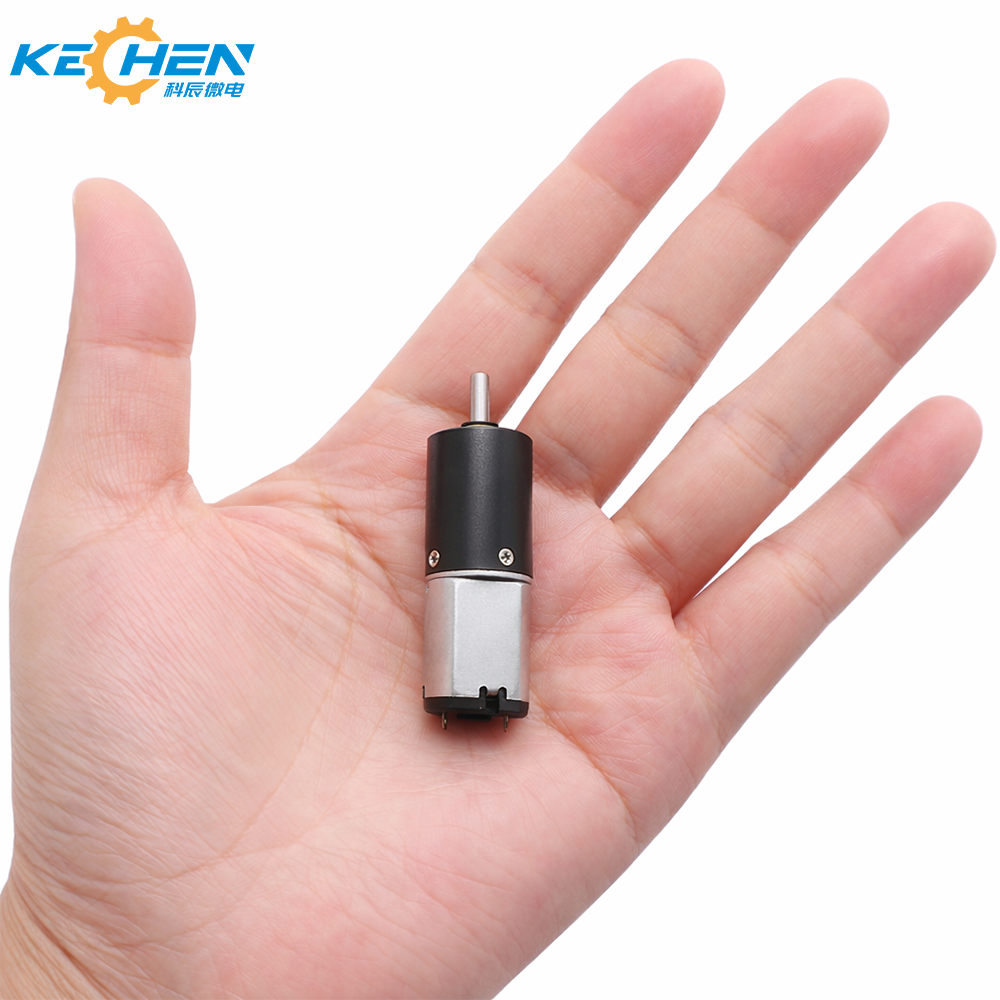

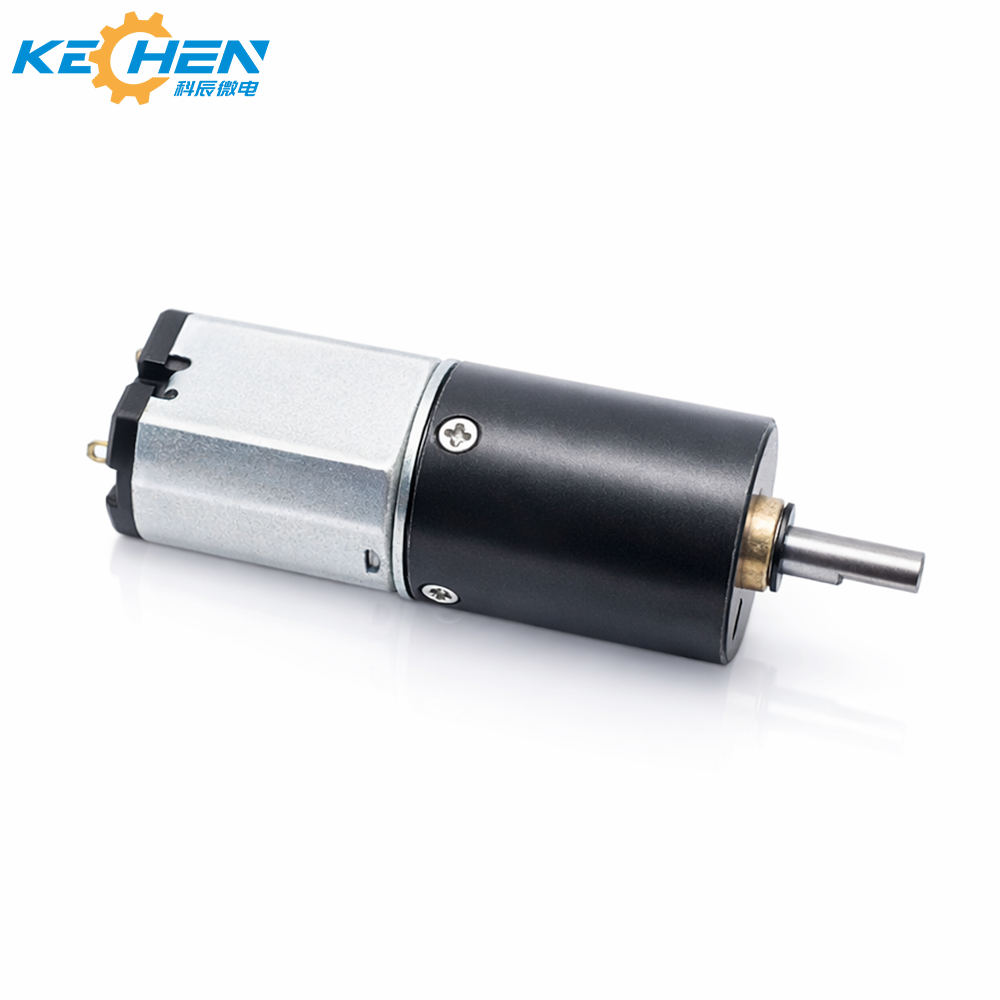

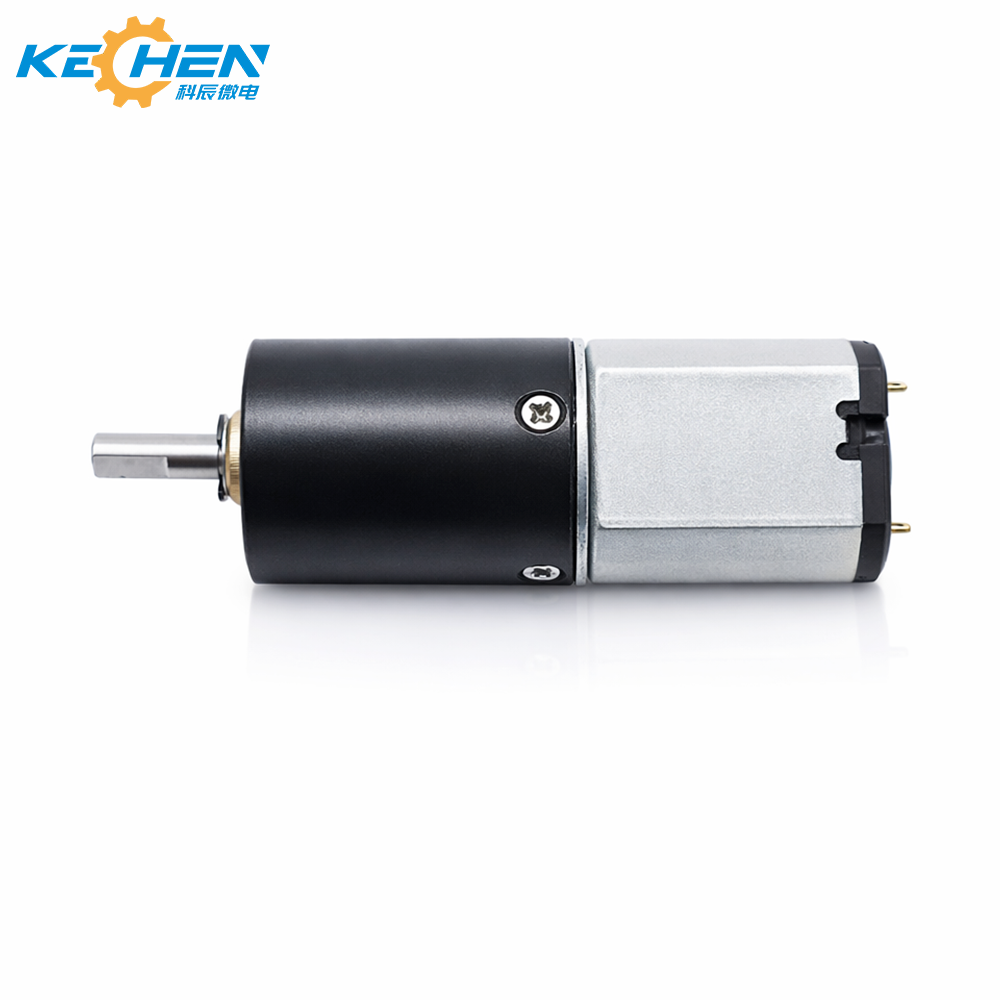

16mm Planetary Gear Motor 100rpm 250rpm 300rpm 450rpm 600rpm 850rpm 1000rpm 12V Dc Planetary Gear Motor for Medical Equipment

Product Description

Products Description

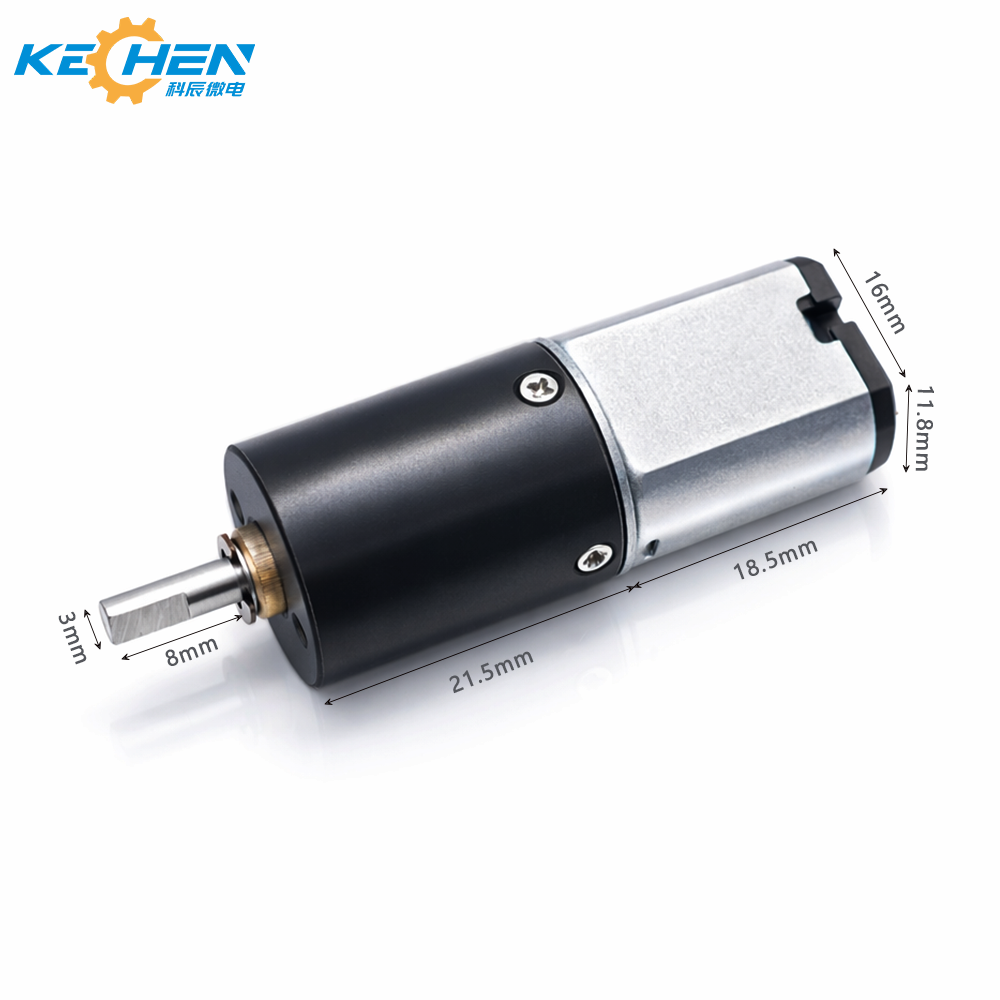

GMP16-030 Planetary Gear Motor Specifications
Model GMP16-030
Motor diameter 15.4mm
Rated Voltage 3V, 5V, 6V, 9V, 12V, 24V
Rated Torque Max. 3.5 Kgf-cm
Shaft Φ3mm D-cut 0.5mm, custom
Commutation Carbon brush/Graphite brush
Encoder 3ppr/7ppr/12ppr
No-load speed 10-2500rpm
No-load current 0.08-0.16A
Power 1.6-1.8W
Weight 35g
Certificate ISO9001/ISO13485/IATF16949/CE/REACH/ROHS
Planetary Gear Motor Specifications Chart 1
Planetary Gear Motor Specifications Chart 2
Applications of GMP16-030 Planetary Gear Motor
🔒 Intelligent Electronics & Automation

Smart Locks/Access Control Systems: Used to drive the lock cylinder rotation for automatic locking and unlocking. Pan/Pan Cameras: Used for camera rotation control, enabling smooth, low-noise rotation. Vending Machines/Coin-Operated Machines: Drive latches, gates, or transmission mechanisms. Smart Home Devices: Such as electric curtains, door and window controllers, flip-top mechanisms, etc.

🤖 Robotics & Educational Equipment

Intelligent Toy Robots: Drive arms, legs, or wheels to achieve motion control. STEM Education Kits: Small drive modules for teaching and experimental platforms. Bionic Structures / Miniature Robotic Arms: Enable precise multi-joint movements and angle control.

🏥 Medical & Beauty Equipment

Portable Massagers/Vibrators: Achieve vibration by driving an eccentric weight with high torque after deceleration. Automatic Fluid Injection Devices/Medical Pumps: Used for precise, low-flow-rate fluid delivery. Physiotherapy Instruments: Drive rotating massage heads or rollers.

🚗 Automotive & Model Products

Remote Control Car/Model Airplane Servos: Control rudder or wheel steering. Central Locking/Headlight Adjustment Mechanisms: Enable precise angle adjustment and drive. Small In-Vehicle Mechanisms: Such as folding rearview mirrors, power seat adjustments, etc.

⚙️ Instrumentation & Industrial Control

Testing Equipment: Drives miniature probes or transmission gears to achieve positional movement. Dispensing Machines/Inkjet Printers: Precisely control micro-volume delivery and rotation. Optoelectronic Equipment: Controls the rotation of filters, apertures, or reflector assemblies.

Recommend Products
Recommended Planetary Gear Motors
Motor raw materials
Motor raw materials quality
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Certifications
Product Quality Certifications
Application Scenario
Motor Application Scenarios Display
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map 1
Global Market Map 2
Global Operations Banner
Frequently Asked Questions
Q1: What are the main features of the GMP16-030 Planetary Gear Motor?
The GMP16-030 motor features a compact 15.4mm diameter, high rated torque up to 3.5 Kgf-cm, multiple voltage options (3V-24V), low noise levels, and customizable shaft configurations. It is designed for high reliability and precise control.
Q2: Can the output shaft of the motor be customized?
Yes. While the standard output shaft design is Φ3mm with a 0.5mm D-cut, we can customize the shaft length, shape, and dimensions to meet your specific application requirements.
Q3: Does the GMP16-030 support encoders for feedback control?
Yes, it can be equipped with integrated encoders. We offer resolution options of 3ppr, 7ppr, and 12ppr to support accurate positioning and speed control applications.
Q4: What commutation options are available for this model?
The GMP16-030 motor supports both carbon brush and graphite brush commutation configurations depending on your performance, lifetime requirements, and load conditions.
Q5: Which industries and applications commonly use this planetary gear motor?
It is widely used in intelligent locks, pan/tilt security cameras, robotics, smart home appliances (such as automated curtains and coffee machines), miniature medical pumps, portable massagers, and automated testing instrumentation.
Q6: What quality certifications do these motors carry?
These motors are manufactured under rigorous quality control standards and hold certifications including ISO9001, ISO13485, IATF16949, CE, REACH, and ROHS, ensuring international compliance and high quality.
