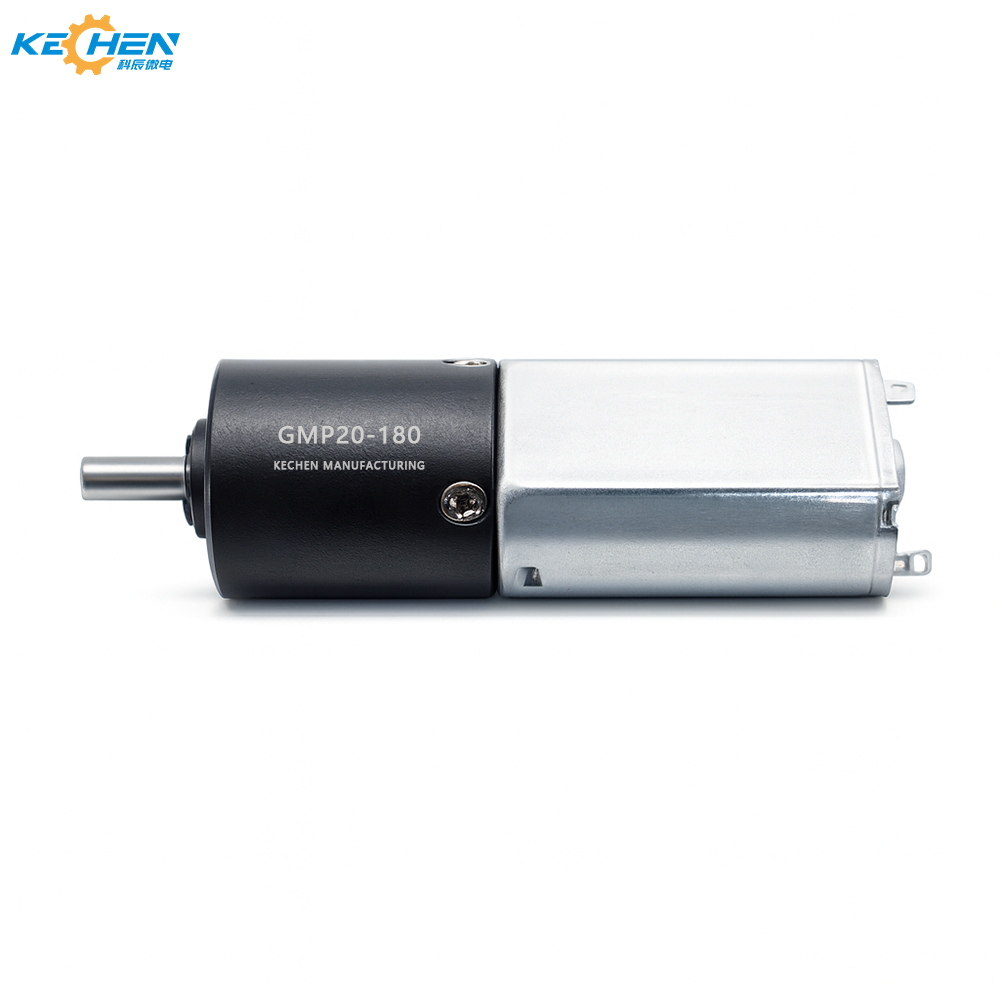

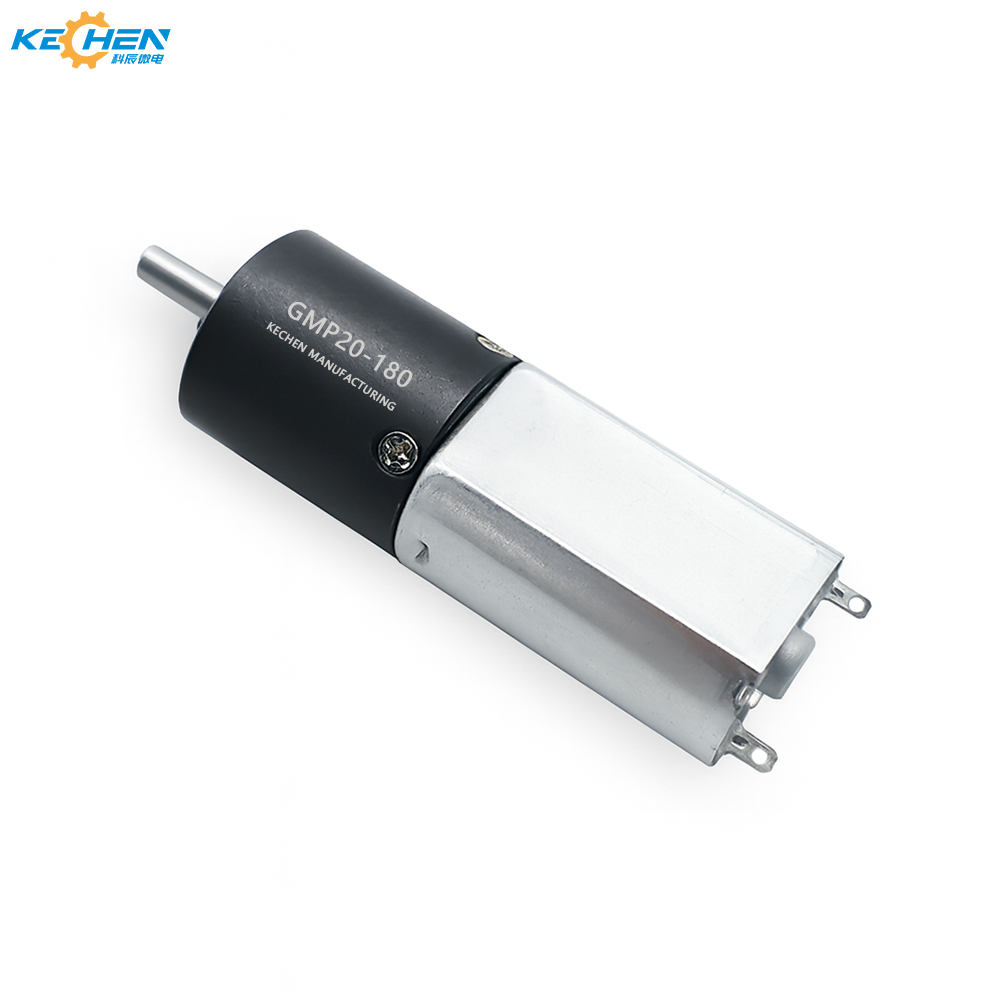

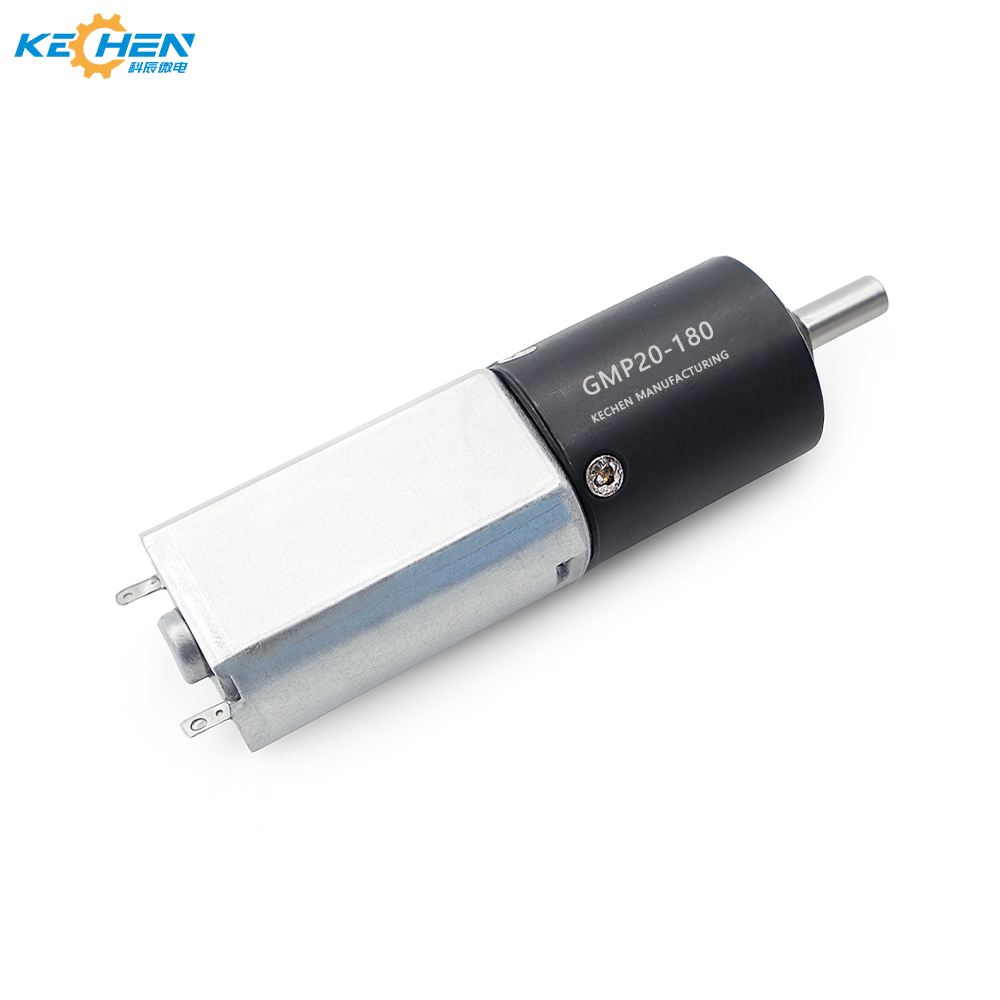

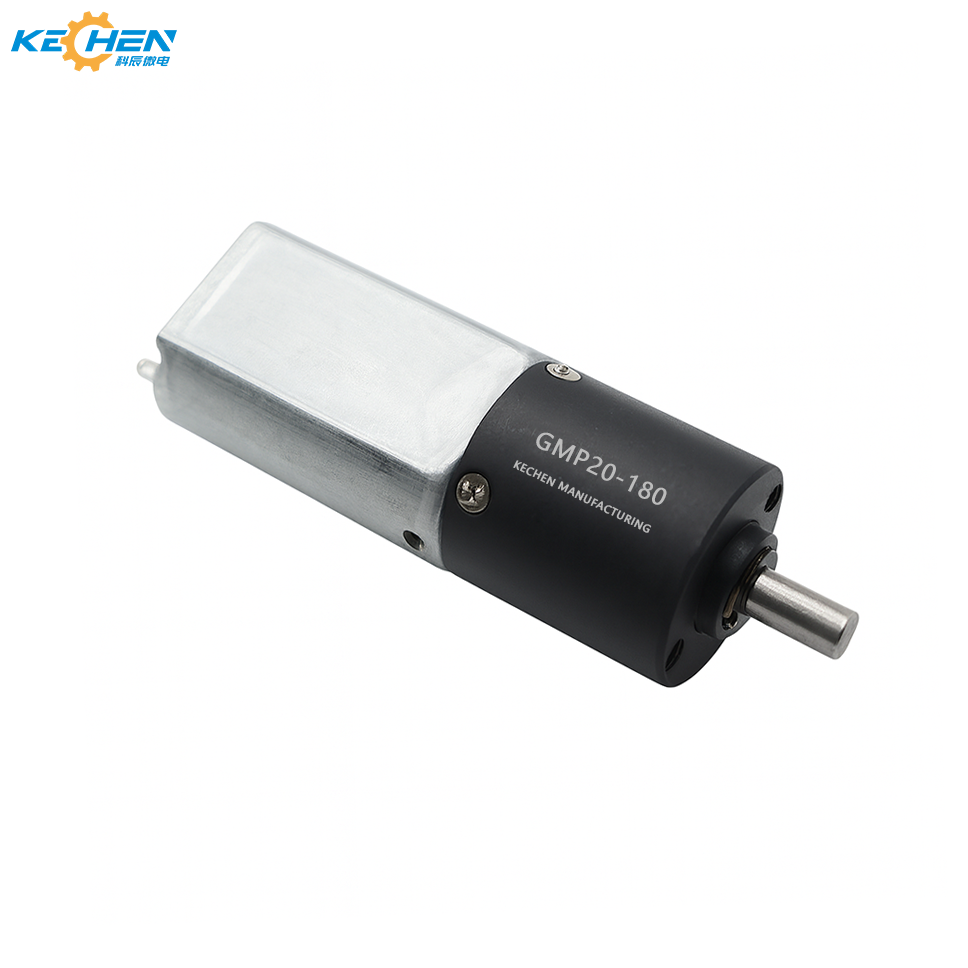

20mm Planetary DC Gear Motor 12V 100rpm 24V 300rpm 180sh Small DC Gear Motor for Infusion Pump

Product Description

Products Description
Motor type Planetary DC Gear Motor

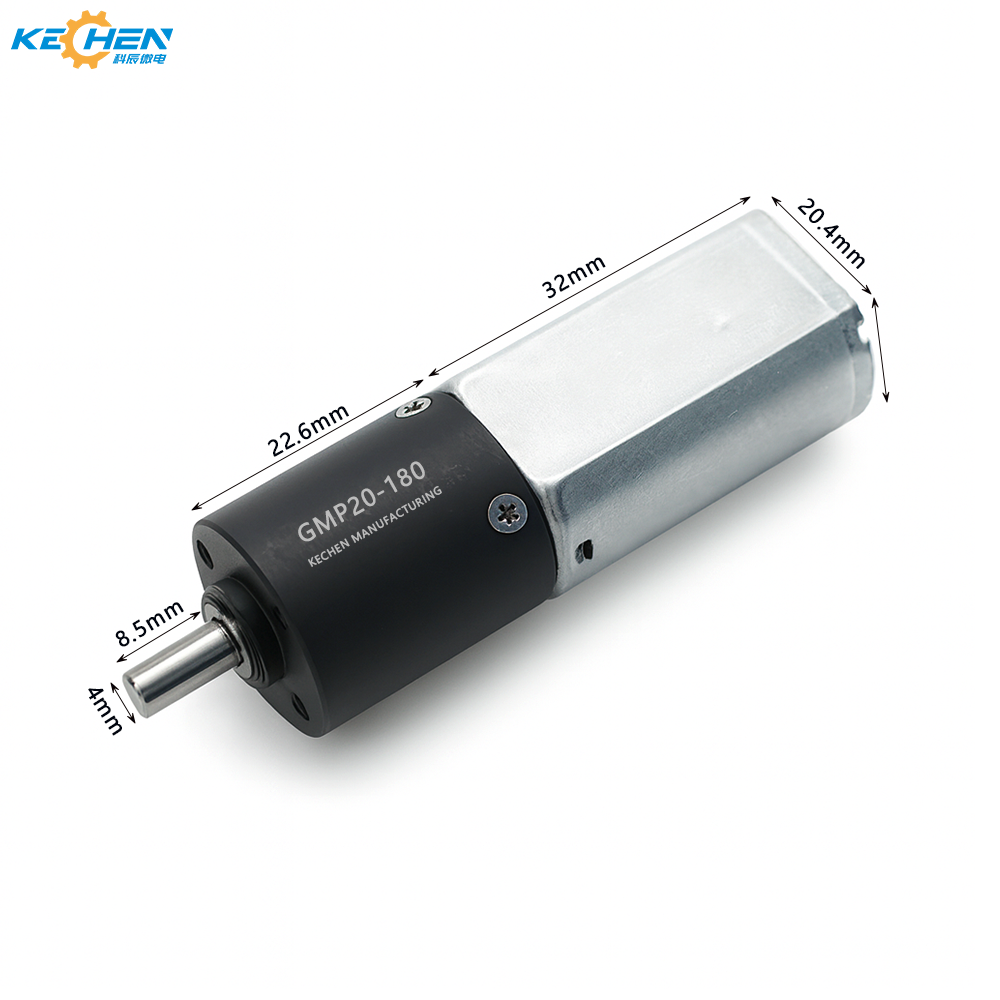

Motor diameter 20mm
Operating voltage 5V/6V/12V/24V DC
Output shaft Diameter Φ4 mm; D-shaped shaft
Shaft length 8-10.5mm(Customized)
Reduction ratio 5.4:1/19:1/29:1/84:1/128:1/157:1/370:1/560:1/850:1
Encoder 3ppr/7ppr/12ppr
Encoder signal interface PH2.0-6PIN
Gear material All-metal gears or powder metallurgy gears
Coil winding Pure copper wire winding; low resistance, high conductivity
Gearbox length It changes as the reduction ratio increases.
Weight 80g

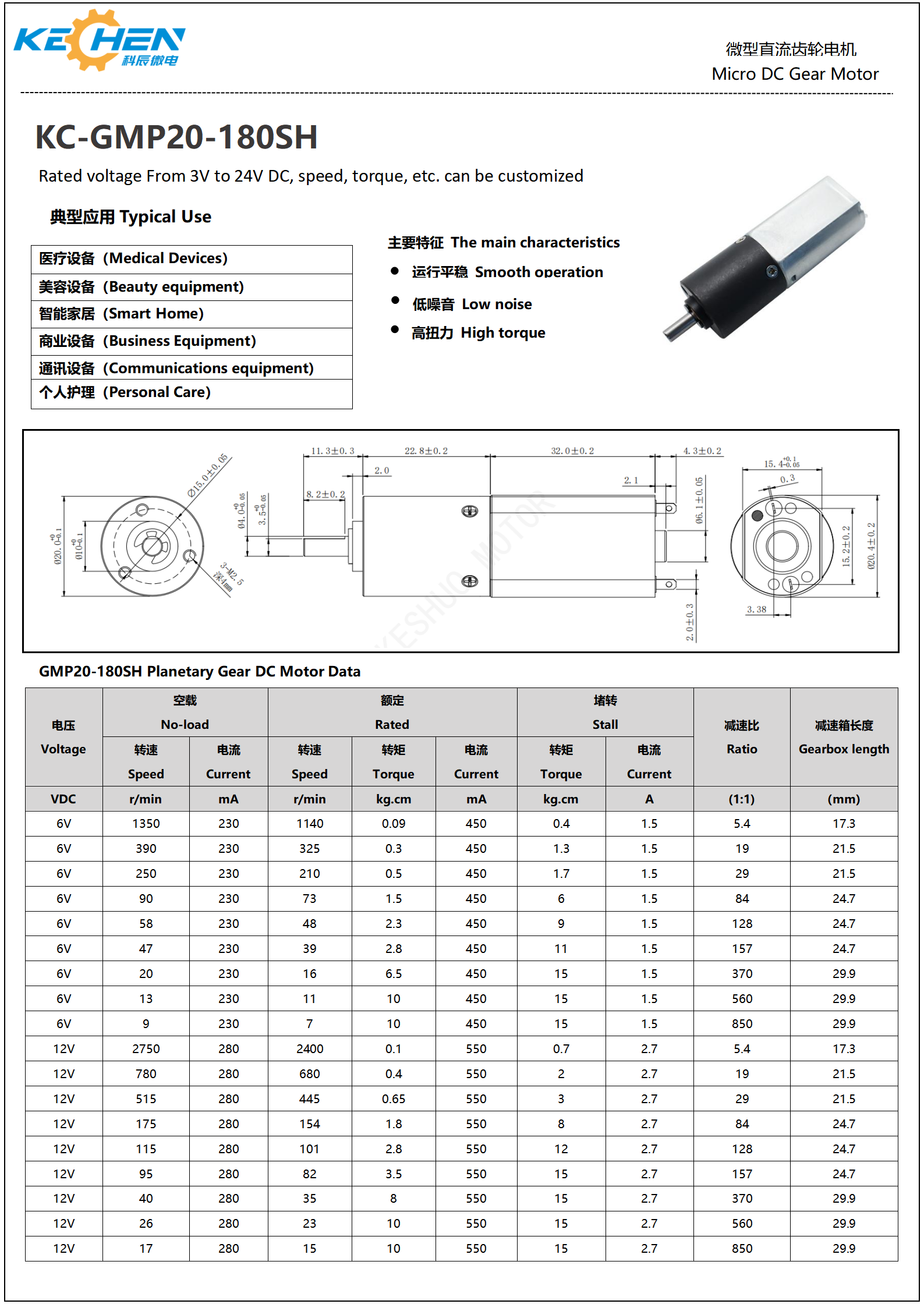

Planetary Gear Motor Specifications Chart
Planetary Gear Motor Performance Curve

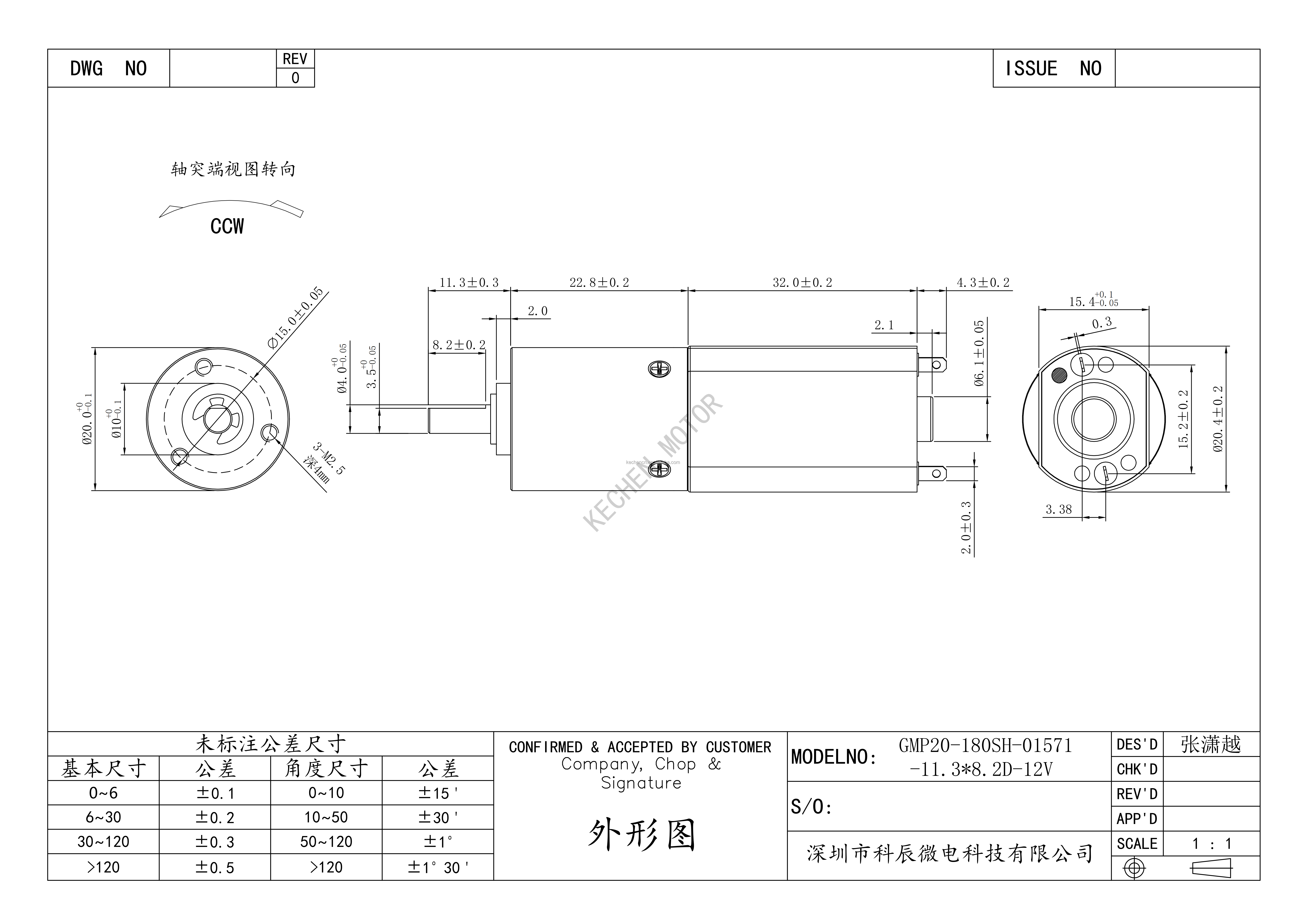

Planetary Gear Motor Dimensions Drawing
Planetary Gear Motor Structure Details
Recommend Products
Recommended Gear Motor Model A
Recommended Gear Motor Model B
Motor Raw Materials
High Quality Motor Raw Materials Overview
Production Equipment
Automatic Production Equipment Unit 1
Automatic Production Equipment Unit 2
Testing and Assembly Machine
Certifications
ISO and CE Certifications Wall
Application Scenario
Motor Application Scenarios Illustration
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush,Electric tool,Electric toy car,Electric curtain.
Smart Home Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door lock,Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.
Global Market Distribution
Global Market Share Map
Market Share Growth Chart
Worldwide Distribution Network
Frequently Asked Questions
How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will proceed samples accordingly.
How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
What's your lead time?
Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
What certifications do you have?
We currently have CE, ROSH, ISO13485, IATF16949, REACH certifications.
