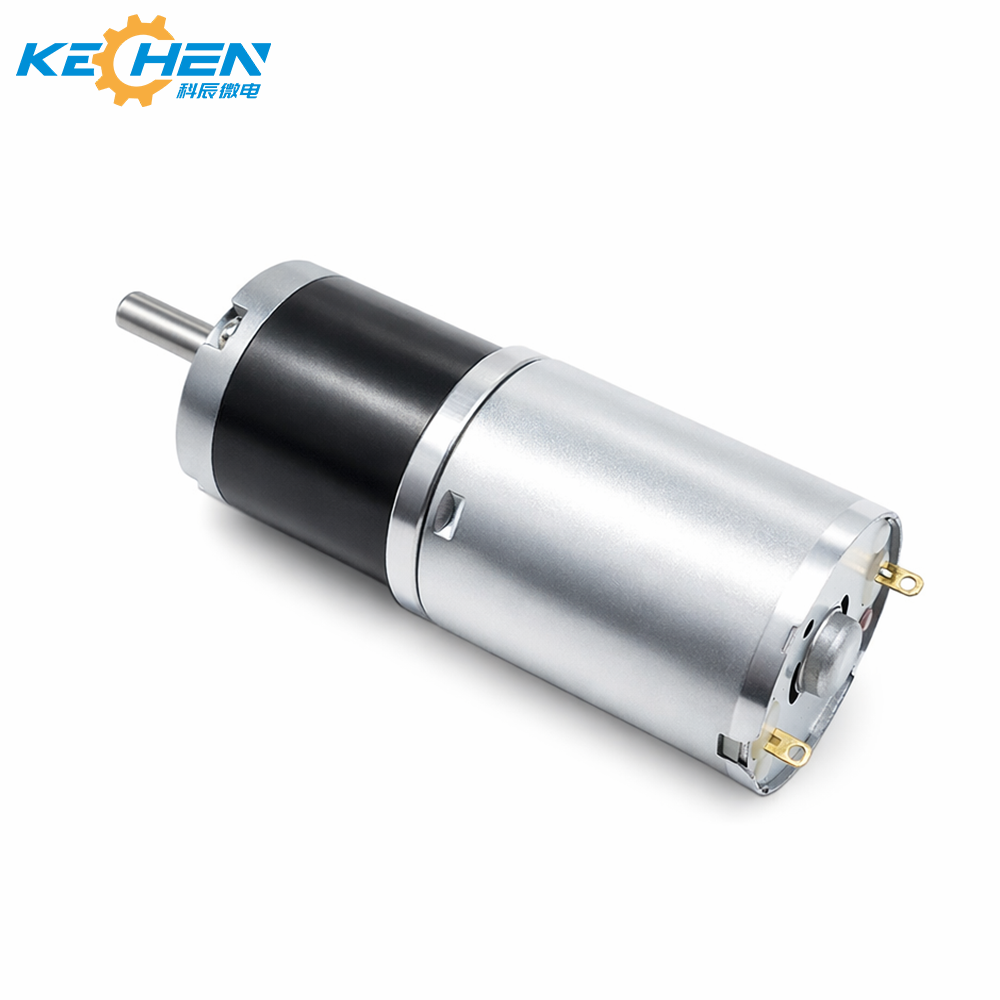

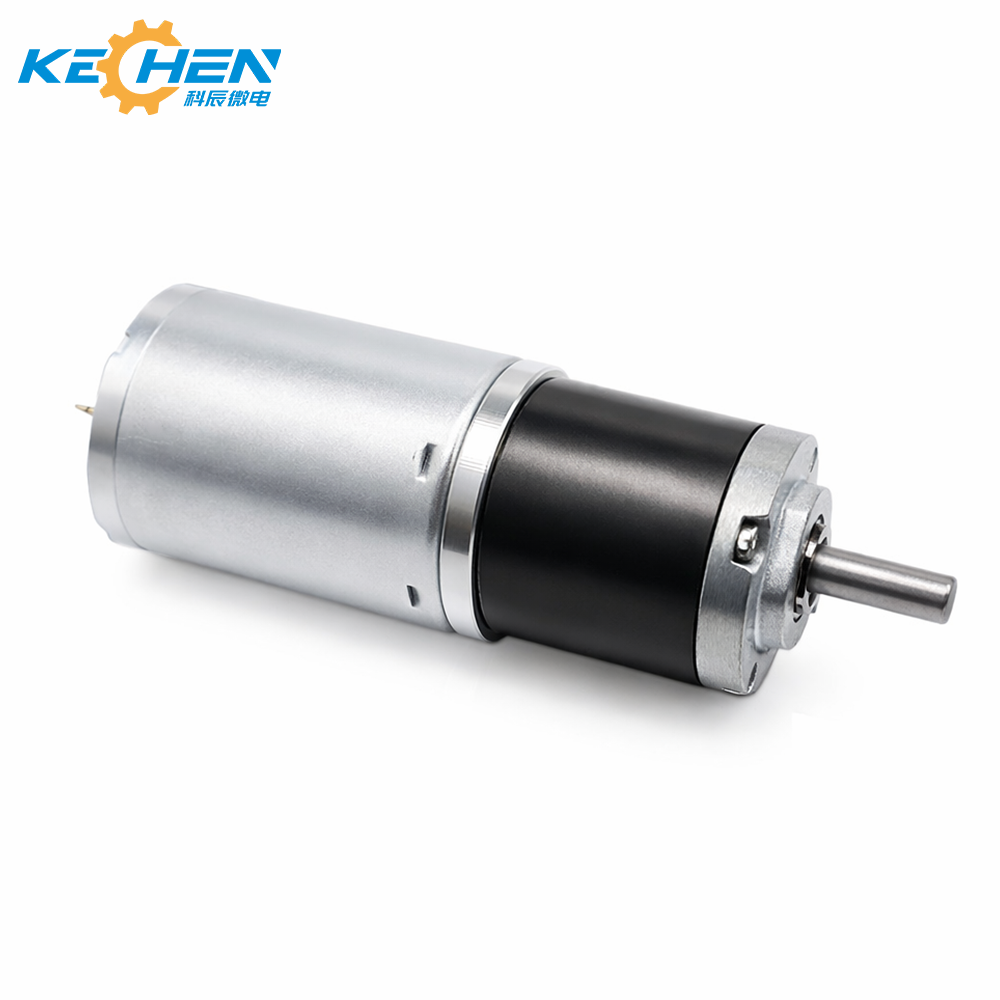

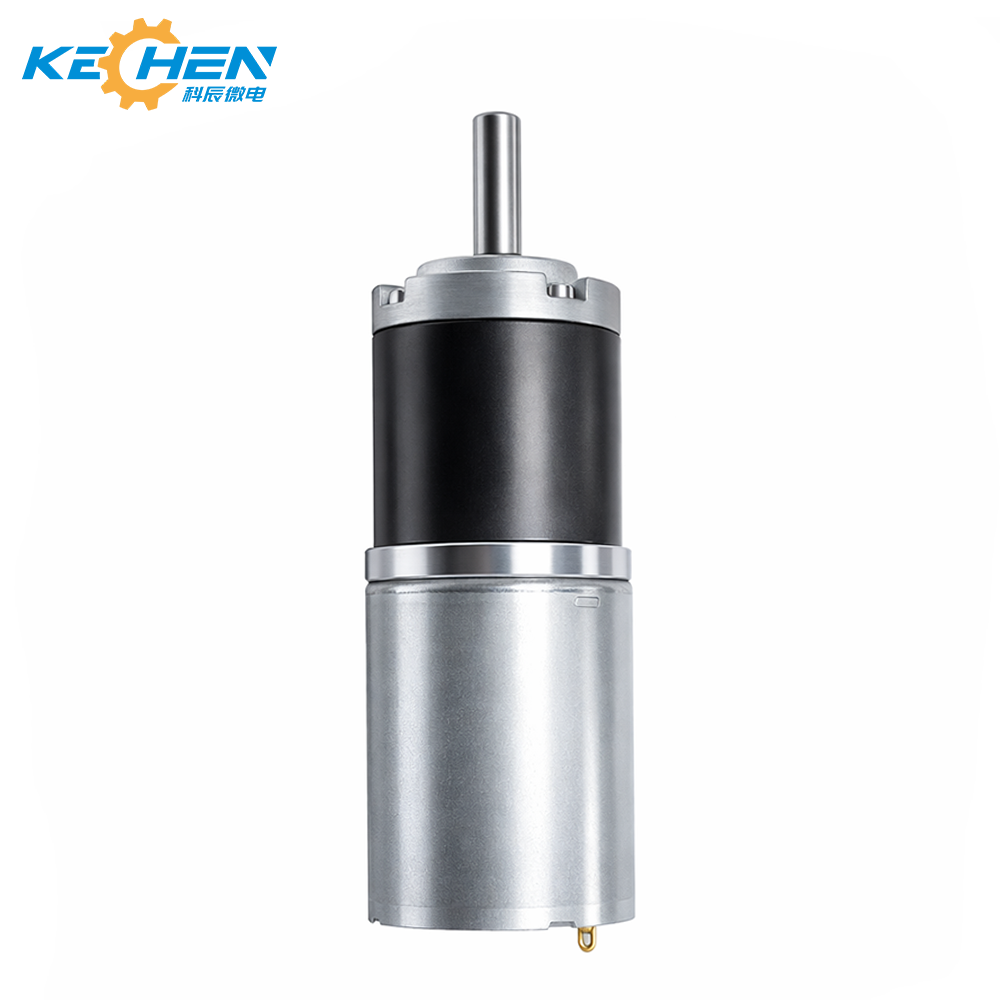

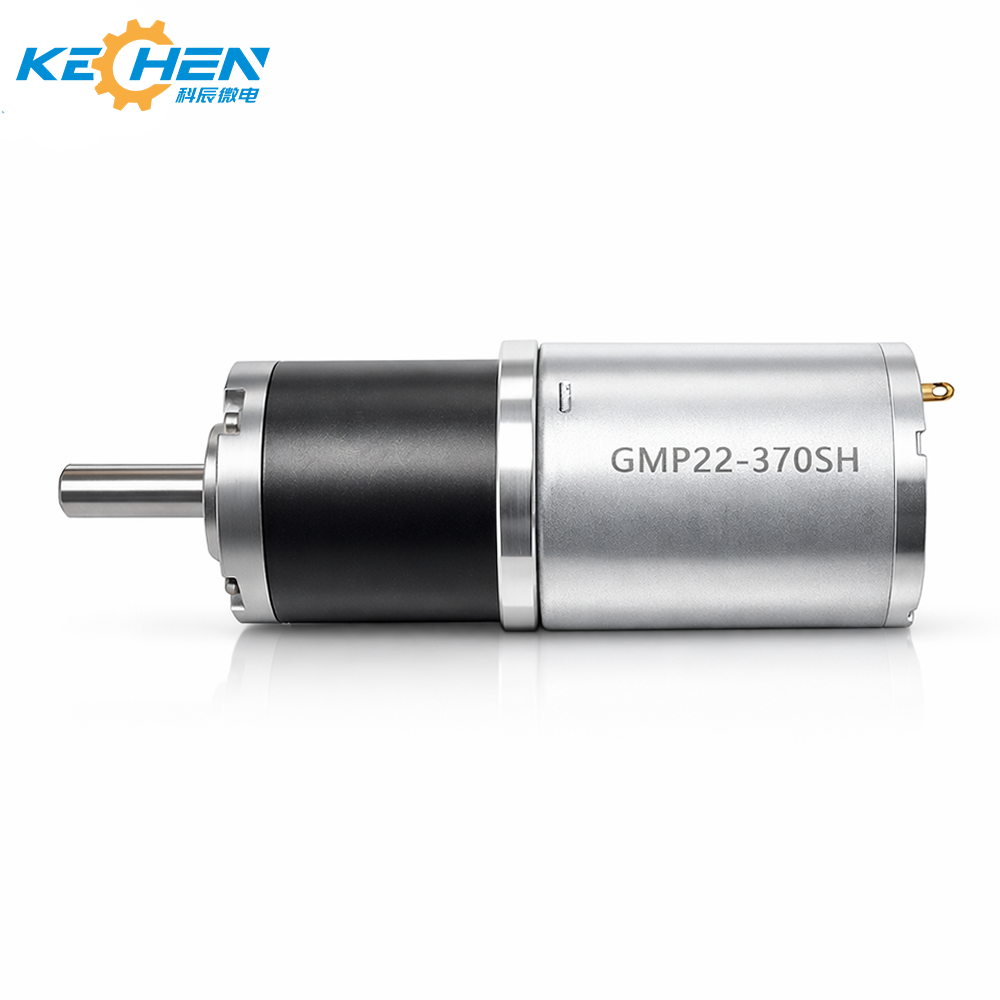

A 370 planetary gear motor combines a 370-size brushed DC motor with a planetary (epicyclic) gearbox, providing high torque, compact size, and good efficiency. These motors are widely used in robotics, smart devices, and automation equipment.
| Parameter | Value Range |
|---|---|
| Motor Type | Brushed DC Motor |
| Model | 370 |
| Rated Voltage | 6 V – 12 V |
| No-Load Speed (motor) | 4000 – 12000 rpm |
| Stall Torque (motor) | 50 – 150 g·cm |
| Output Shaft Diameter | 4 mm (typical) |

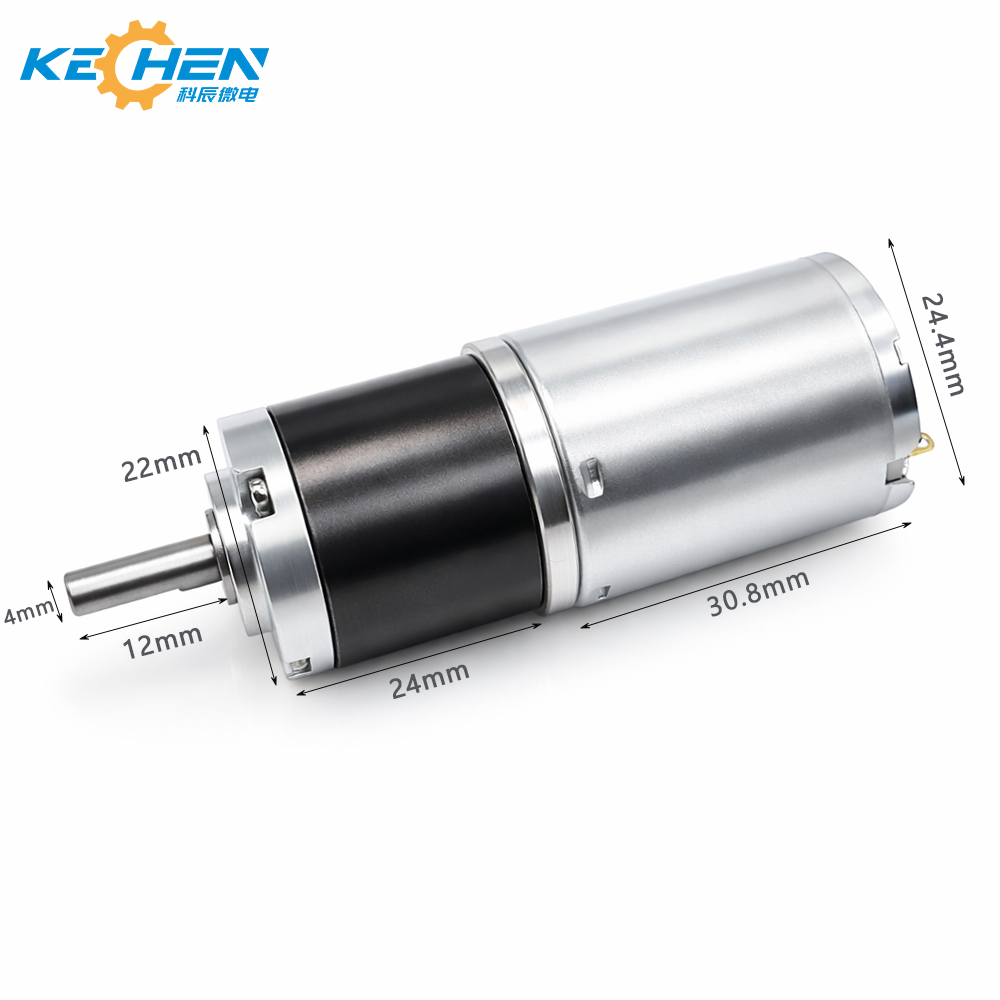

| Gearbox Diameter | 22-24 mm |
| Gearbox Type | Planetary |
| Gear Ratio | Output Speed (12 V) | Output Torque |
|---|---|---|
| 1:10 | 400 – 1,000 rpm | 0.5 – 1 kg·cm |
| 1:30 | 150 – 300 rpm | 2 – 4 kg·cm |
| 1:50 | 80 – 200 rpm | 4 – 6 kg·cm |
| 1:100 | 40 – 100 rpm | 6 – 10 kg·cm |
| 1:300+ | 10 – 40 rpm | 15 kg·cm or more |
*Note: Actual performance depends on manufacturer and gearbox design.
Established in August 2009, this high-tech enterprise integrates the research, development, production, and marketing of micro motor series products. The main product offerings include precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
These micro motors are widely utilized in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris recognition, AI systems, smart grids, smart home products, commercial intelligent locks, smart medicine cabinets, fresh food lockers, smart wearables, outdoor gear, intelligent robotics, power tools, beauty devices, and more.
Adhering to a "people-oriented, pioneering, and innovative" philosophy, the organization features a professional, highly efficient work team and advanced production facilities. We deliver robust management, superior quality control, and customized services to meet clients' requirements for energy savings, process simplification, and output efficiency.
| Category | Applications |
|---|---|
| Medical equipment | Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
The 370 planetary gear motor integrates a brushed DC motor with a planetary gearbox, which distributes the mechanical load across multiple gears. This design yields significantly higher torque, improved load capacity, lower backlash, and quieter operations within a highly compact form factor.
These planetary gear motors typically operate within a rated voltage range of 6V to 12V. Custom voltages can sometimes be configured depending on the target application's specific electrical design.
Yes. Common standard gear ratios range from 1:10 up to 1:300+. Depending on your application's requirements for output speed and torque, different gearbox configurations can be implemented.
The gearboxes are constructed using durable metal components, typically high-grade steel or brass, to guarantee high wear resistance, structural stability, and a long service life under heavy operation.
They are heavily utilized in smart home appliances (like automated blinds and locks), robotics (including AGVs and robotic arms), medical analytical instruments, commercial office devices, and automatic control equipment.
A planetary gearbox offers higher efficiency, greater torque transfer capability, and superior shock load resistance because the load is split among multiple planetary gears. Spur gearboxes are simpler but cannot match the load density and quiet operation of planetary setups.
