Established in August 2009, our enterprise is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc.
Since our establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After years of rapid development, we have built a group of young, pragmatic, professional, and efficient work teams. Supported by advanced production facilities, efficient management, excellent quality, and high-quality services, we meet customers' needs for continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning continuous recognition from global customers.
| Medical equipment | Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
The RS-395 carbon brushed micro DC motor operates within a wide voltage range of 3V to 36VDC, allowing flexible integration into various power systems.
Depending on your configuration, the motor supports a speed range from 1500rpm up to 25000rpm and delivers a continuous torque output between 30g.cm and 150g.cm.
We offer both bushing and ball bearing designs to match different application environments, life expectancy demands, and budget requirements.
Yes, the motor supports both Clockwise (CW) and Counter-Clockwise (CCW) rotation directions, easily controlled by reversing the power supply polarity.
Typical applications include liquid pumps, food blenders, smart home electronics, medical devices, robotics, and various high-efficiency audio equipment.

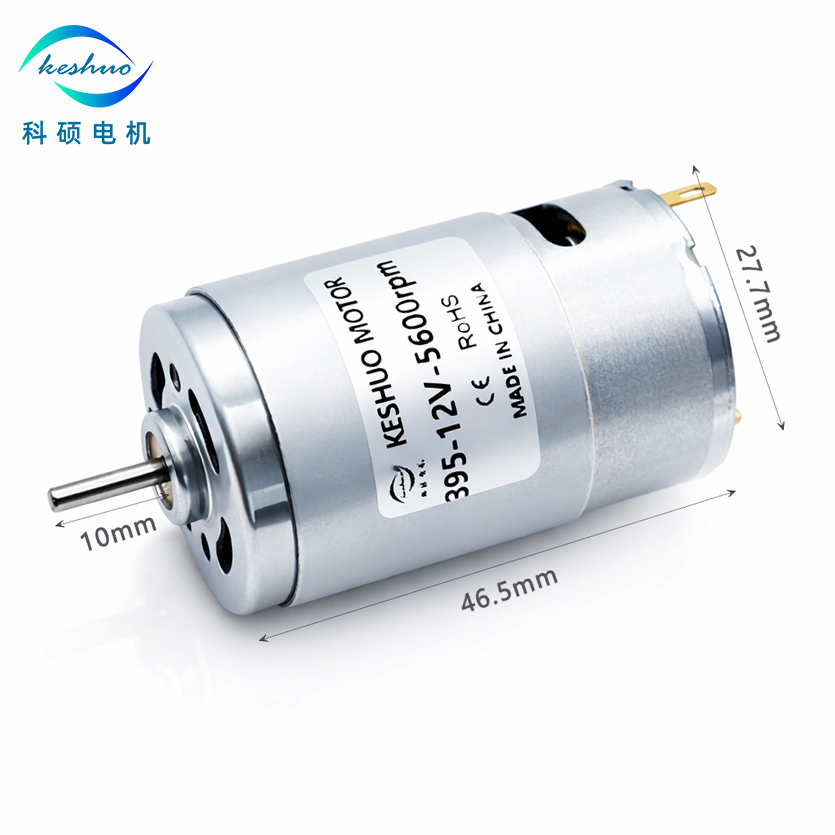

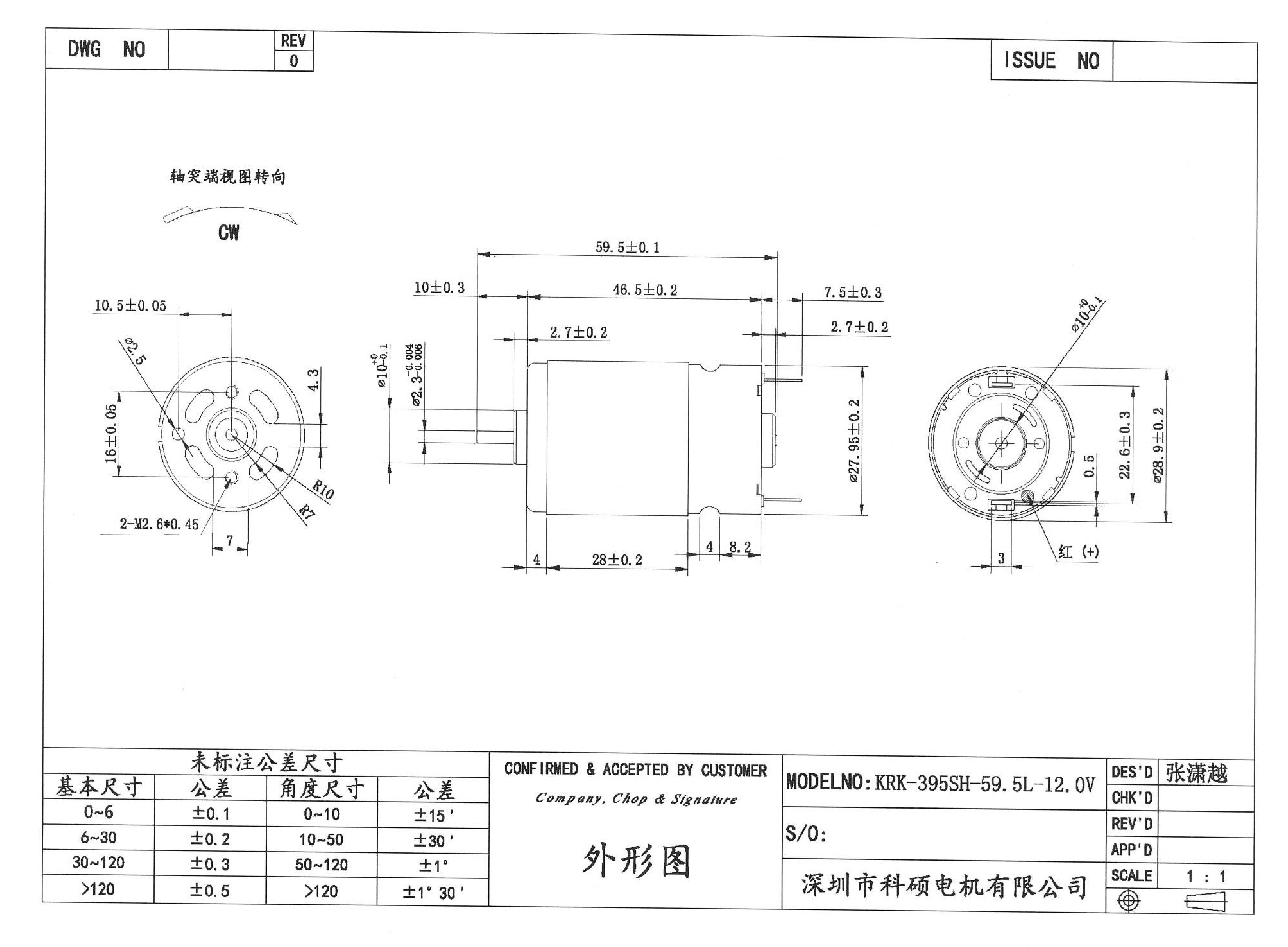

While the standard shaft outer diameter is Φ2.3mm, custom shaft lengths, specific speeds, voltage tuning, and custom terminal options are available to meet your project specifications.
