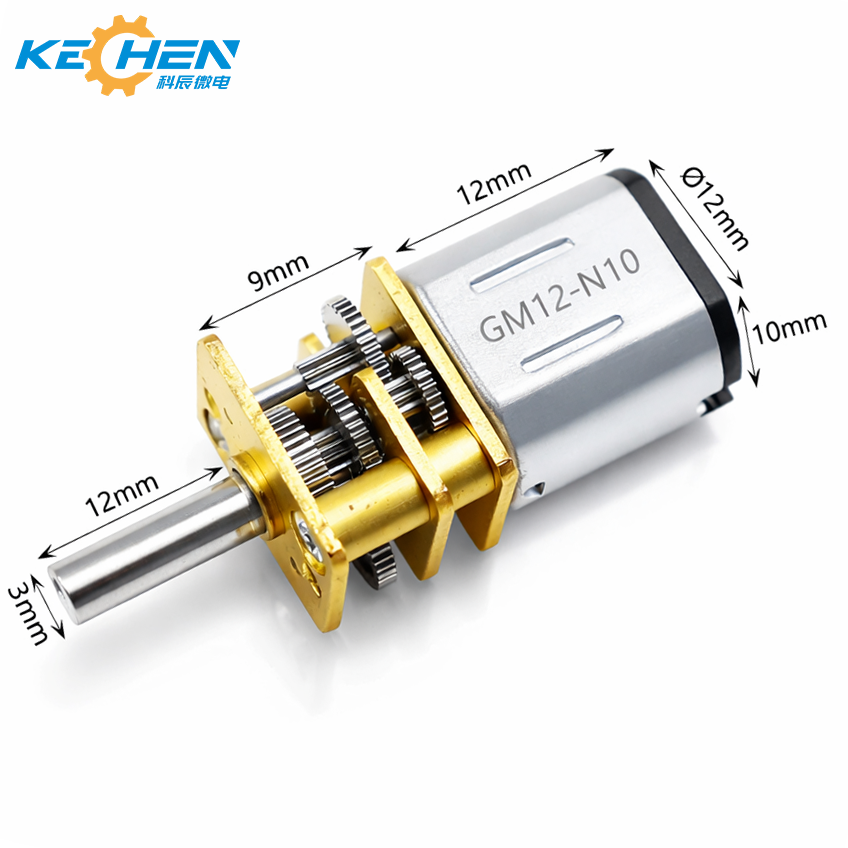

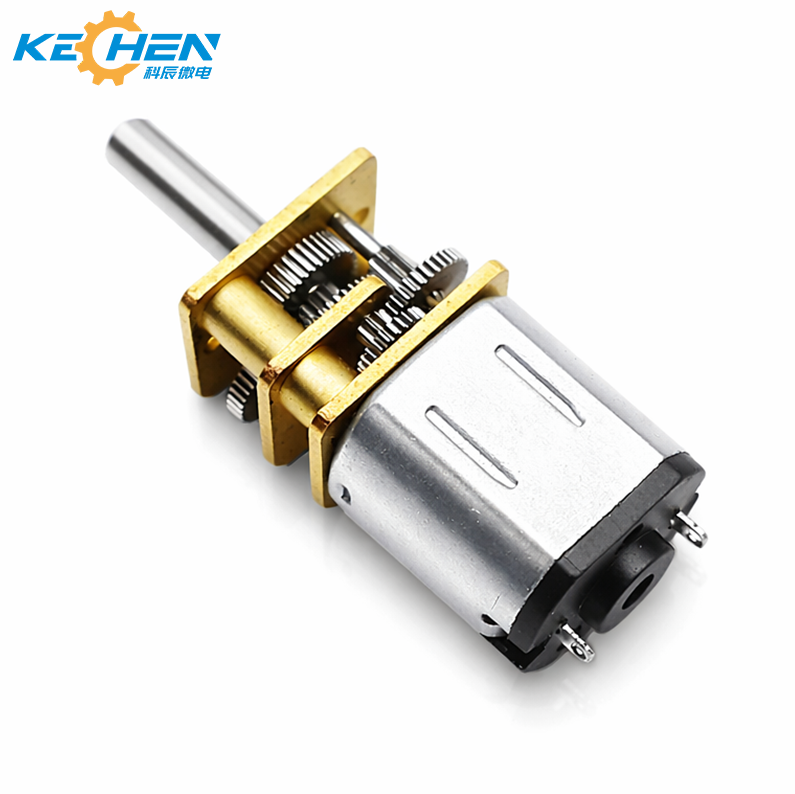

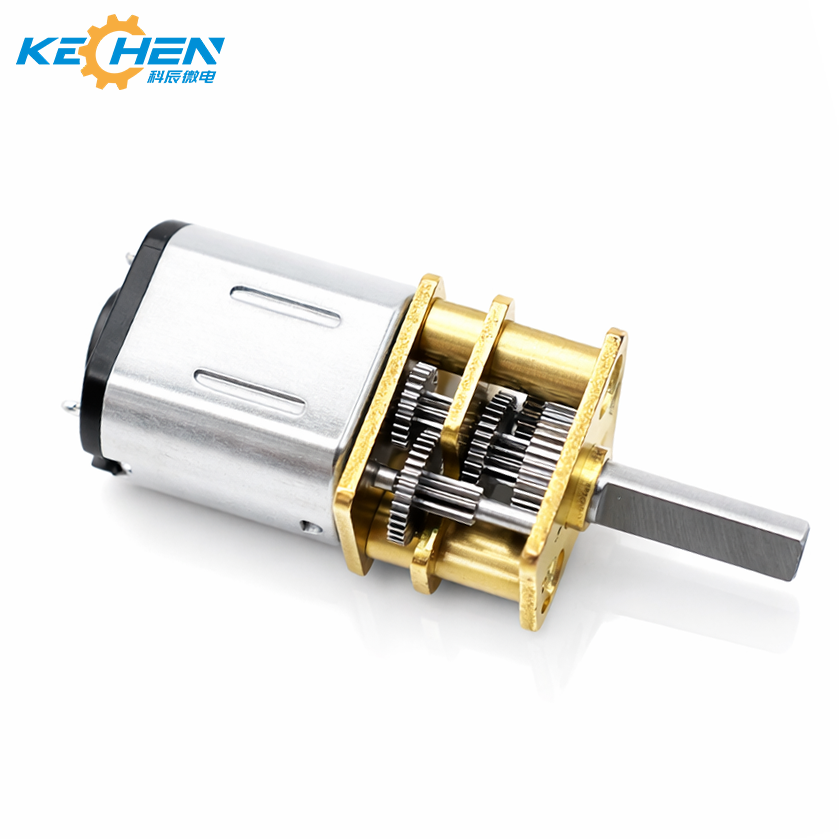

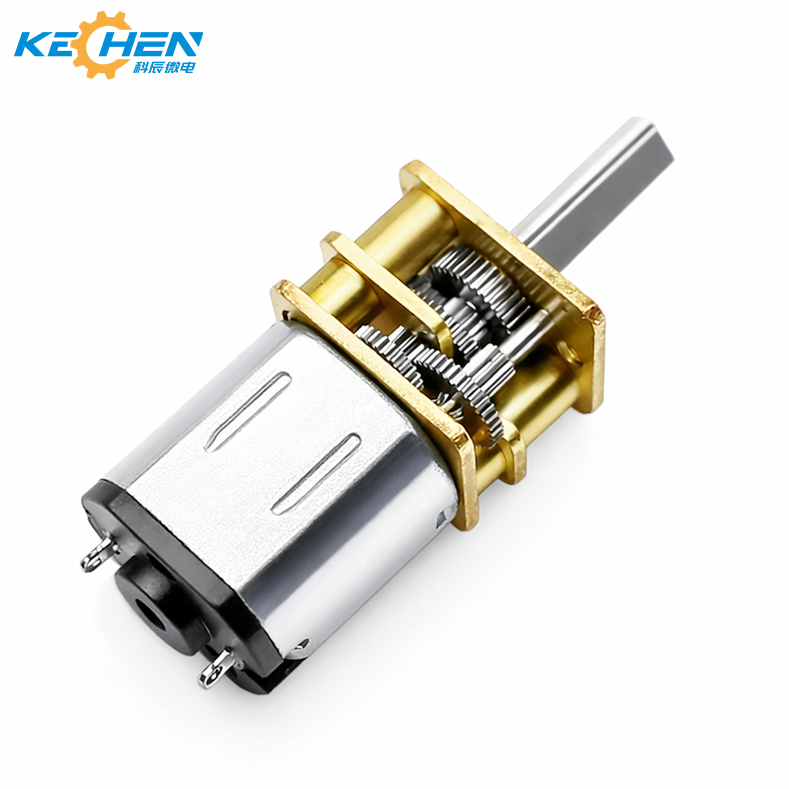

Shaft: Concentric driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom
Commutation: Carbon brush / Graphite brush
Construction: Permanent Magnet iron cored motor
Encoder: Magnetic encoder 3ppr / 7ppr
MOQ: 500 pcs
Motor Specifications
Gearbox with motor Data: GM12-N10-07260-3.7V
Parameter
10
30
50
100
150
210
250
298
330
Reduction
10
30
50
100
150
210
250
298
330
Length (mm)
9
9
9
9
9
9
9
9
9
No-load speed (rpm)
1300
433
260
130
87
62
52
44
39
Rated speed (rpm)
850
283
170
85
57
40
34
29
26
Rated torque (kg.cm)
0.02
0.04
0.06
0.12
0.15
0.21
0.25
0.30
0.33
Stalling Torque (kg.cm)
0.05
0.12
0.17
0.35
0.43
0.61
0.72
0.86
0.95
Gearbox with motor Data: GM12-N10-05455-12.0V
Parameter
50
100
150
210
250
298
330
380
1000
Reduction
50
100
150
210
250
298
330
380
1000
Length (mm)
9
9
9
9
9
9
9
9
12
No-load speed (rpm)
500
250
167
119
100
84
76
66
25
Rated speed (rpm)
380
190
127
90
76
64
58
50
19
Rated torque (kg.cm)
0.06
0.12
0.15
0.21
0.25
0.30
0.33
0.38
0.60
Stalling Torque (kg.cm)
0.25
0.50
0.63
0.88
1.04
1.24
1.38
1.58
2.50
Recommend Products
Motor Raw Materials
Production Equipment
Company Profile
Established in August 2009, we are a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products of the company include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, and more.
Since establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, we have a group of young, pragmatic, professional, and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency.
Certifications
Application Scenario
Global Market Distribution
Frequently Asked Questions (FAQ)
What are the core applications of the GM12-N10VA spur gear DC motor?
This micro metal gearmotor is widely used in medical equipment, financial security devices, AI intelligence, smart home systems, smart locks, robotic devices, electric beauty tools, and smart communication equipment.
Can the output shaft of the motor be customized?

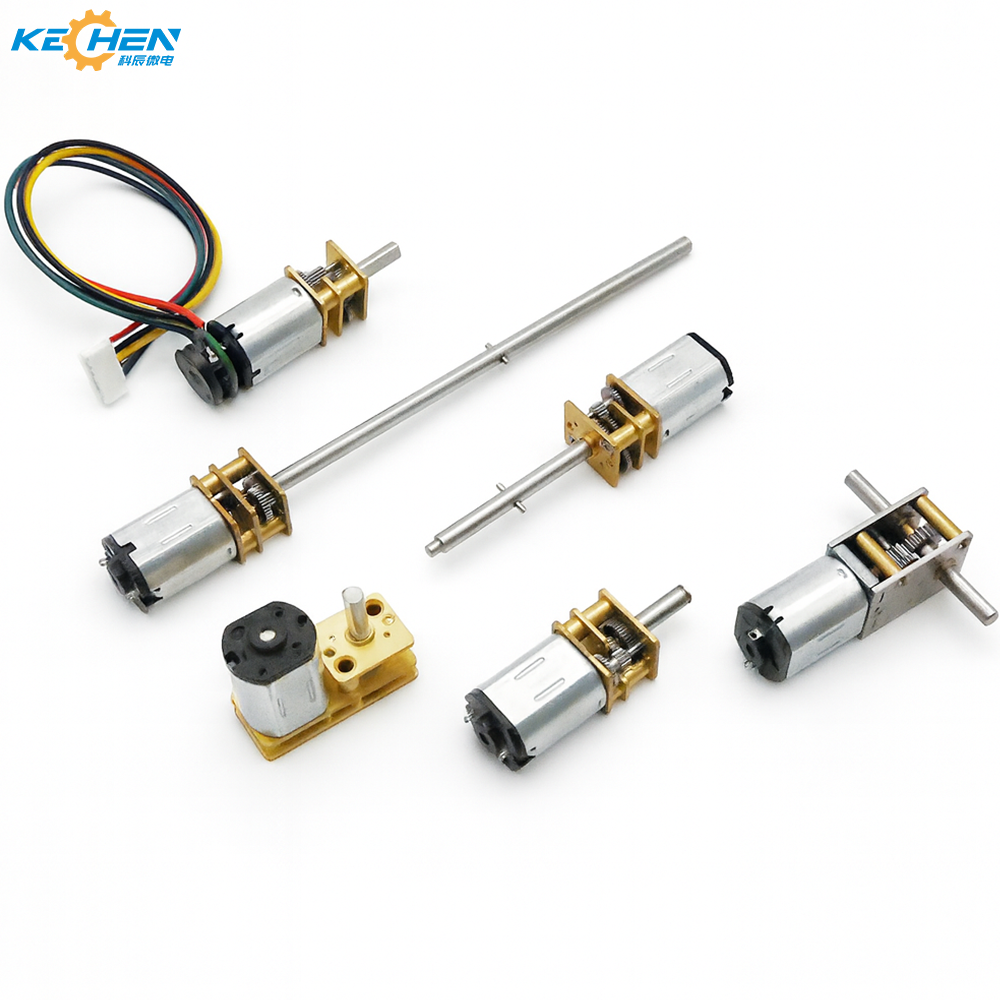

Yes. We support custom configurations for the output shaft, including concentric driveshafts, Φ3mm D-cut (0.5mm), O-cut, M3/M4 threads, and other tailored configurations.
What range of voltages does the GM12 series support?
The motor supports standard rated voltages including DC 1.5V, 3V, 6V, 9V, 12V, and 24V. Custom voltage ratings can be evaluated based on customer needs.
Is there an encoder integration option available?
Yes, this micro metal gearmotor can be equipped with a magnetic encoder supporting 3ppr or 7ppr for precise speed and position control.
What is the minimum order quantity (MOQ) for bulk orders?
Our standard Minimum Order Quantity (MOQ) for production is 500 pieces. Samples can be discussed upon query.
What material are the gears inside the gearbox made of?
The gearbox is constructed with high-quality precision metal spur gears, providing enhanced torque capability, higher efficiency, and a longer overall operating lifespan.
