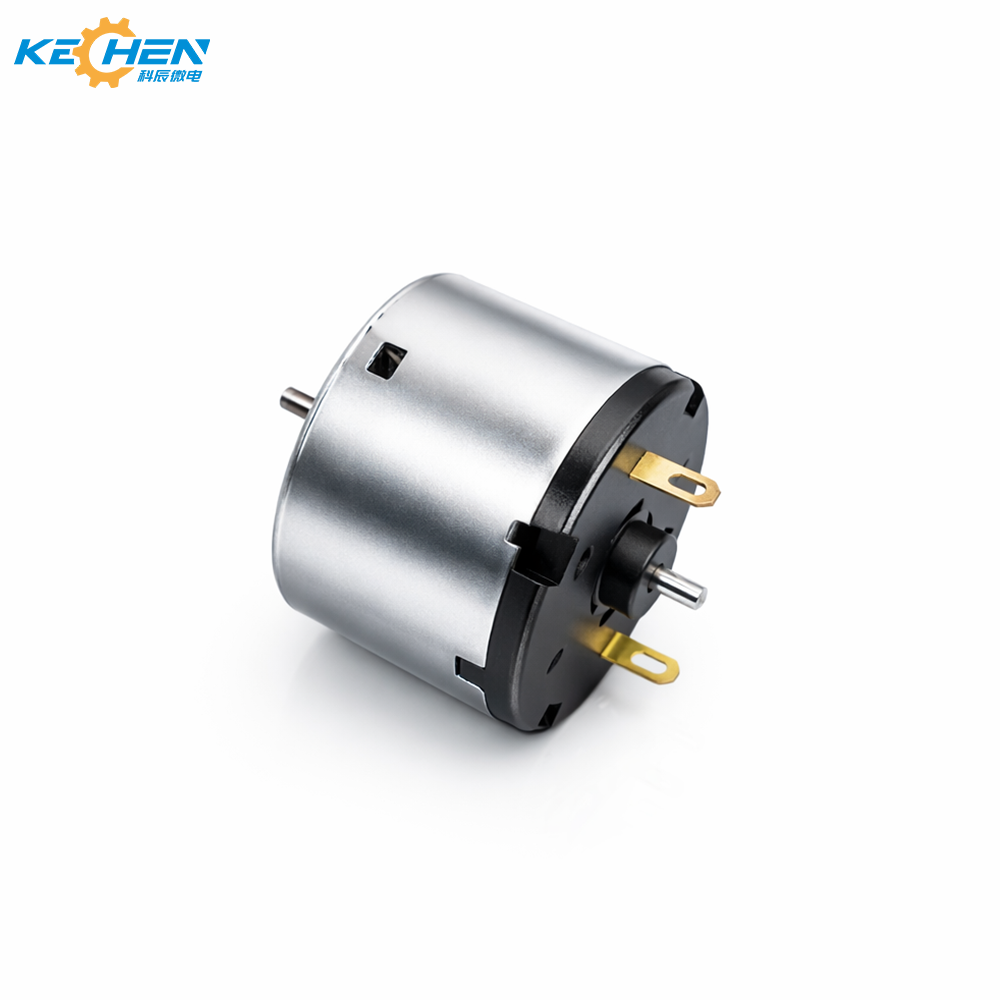

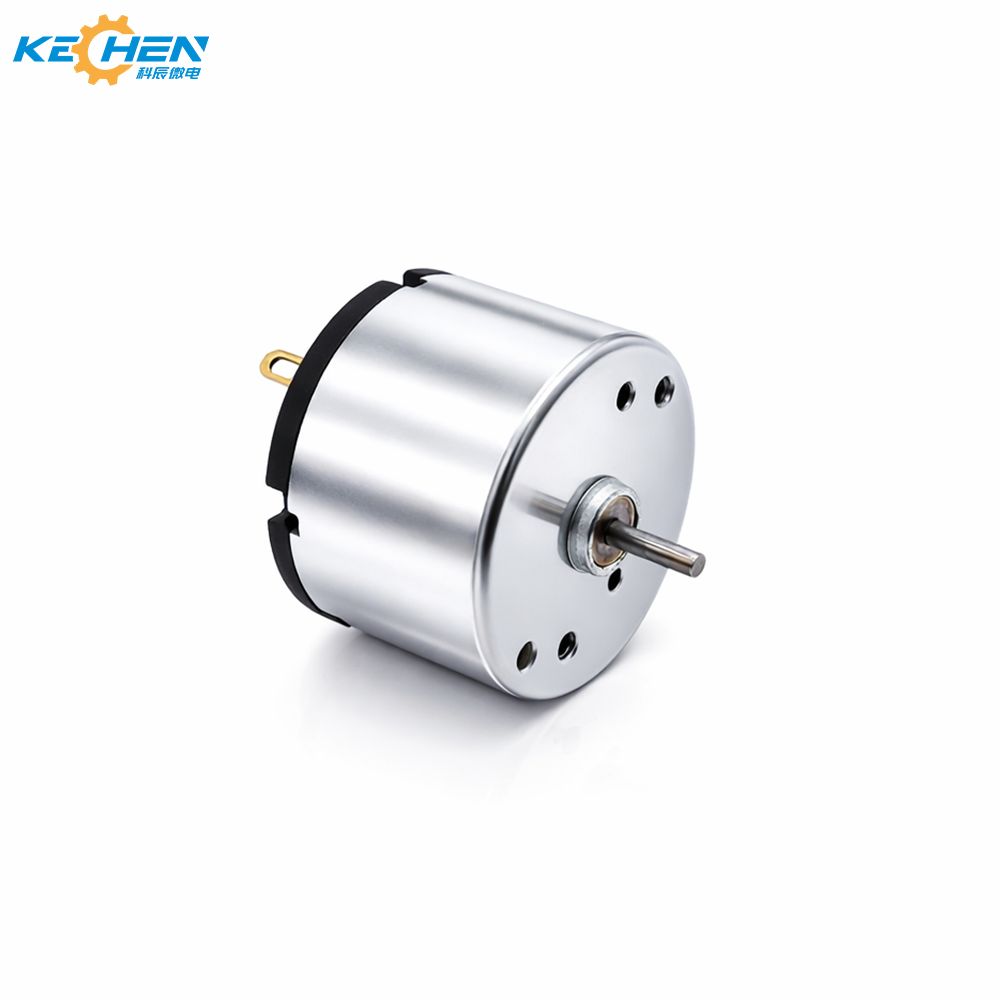

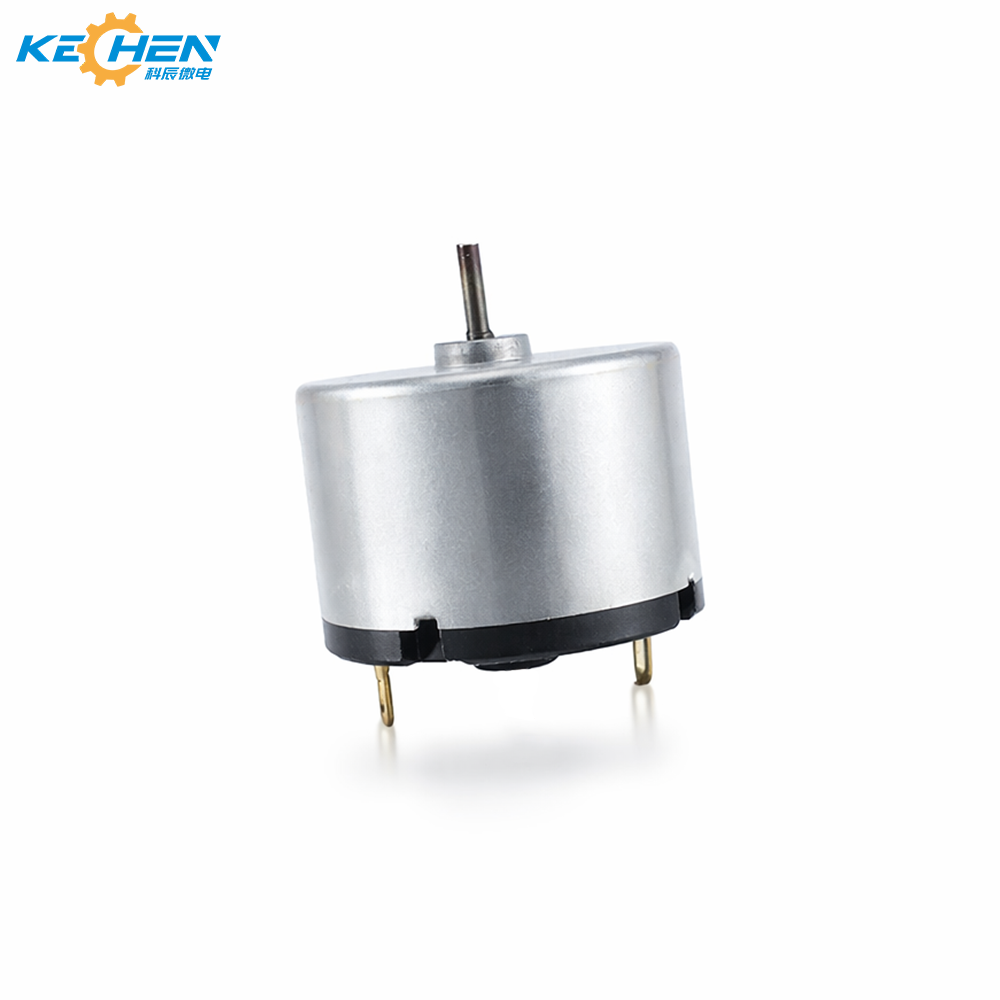

Diameter 33mm DC 520 Motor Carbon Brush 3v 5V 6V High Speed 3000RPM Dc 520 Mini Motor for the Smart Electric Product

Product Description

Products Description
Model Number 520SH
Shell Stator Size 33 * L 22.7 mm (Φ 1.3 inch * 0.8937 inch)
Shaft 2.0mm (0.079 inch), D shape, etc.
Rated Output Power up to 3W
Rated Voltage DC 1.5V - 24V
Rated Torque up to 70 gf-cm (6.86 mN-m)
Construction Permanent Magnet
Commutation Metal brush
520 Brushed Micro DC motor
  • Model Number: 520SH
  • Shell Stator Size: Φ33 * L 22.7 mm
  • Shaft Options: Φ2.0mm, D shape, etc.
  • Shaft length free customization
  • Rated Output Power: up to 3W
  • Rated Voltage: DC 1.5V - 24V
  • Rated Torque: up to 70 gf·cm
  • Permanent Magnet & Metal brush
  • Clockwise/counter-clockwise rotation (CW & CCW)

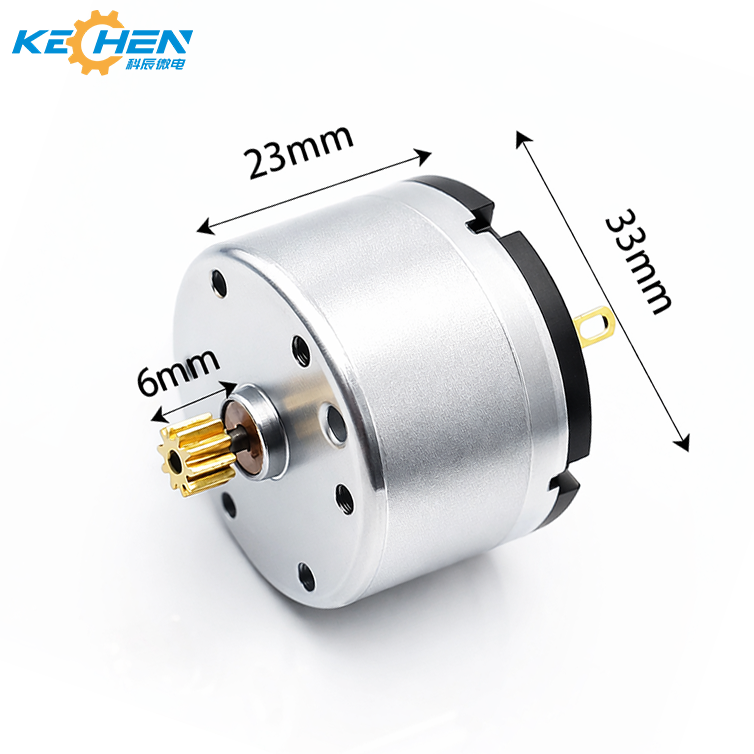

520 Brushed Micro DC motor Overview
Micro DC Motor Technical Diagram
Micro DC Motor Specifications Chart
Recommend Products
Recommended Micro Motor Product 1
Recommended Micro Motor Product 2
Motor Raw Materials
High Quality Motor Raw Materials
Production Equipment
Advanced Manufacturing Equipment 1
Advanced Manufacturing Equipment 2
Advanced Manufacturing Equipment 3
Profile
Manufacturing Plant Overview
We were established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since inception, the development concept has adhered to "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, we have a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Quality Standard Certifications
Application Scenario
Micro DC Motor Applications Diagram
Global Market Distribution
Global Market Map
Market Distribution Statistics
Frequently Asked Questions

What is the rated voltage range for the 520SH micro DC motor?

The rated voltage range for this micro DC motor is DC 1.5V to 24V, allowing it to adapt to various power supplies and electrical requirements.

Can the motor shaft design and length be customized?

Yes, we support free customization of the shaft length and shape (such as D-shape, round shape, etc.) to ensure perfect compatibility with your specific application.

What are the primary applications of this micro motor?

It is highly suitable for medical devices, financial security, smart home systems, smart locks, iris identification technology, AI robotics, electric tools, beauty devices, and various other industrial automation equipment.

Does this model support reversible rotation?

Yes, the 520SH brushed micro DC motor supports both clockwise (CW) and counter-clockwise (CCW) rotation directions.

What type of commutation mechanism does it use?

This motor uses metal brush commutation with a permanent magnet construction, ensuring stable electrical contact and reliable output performance up to 3W.
