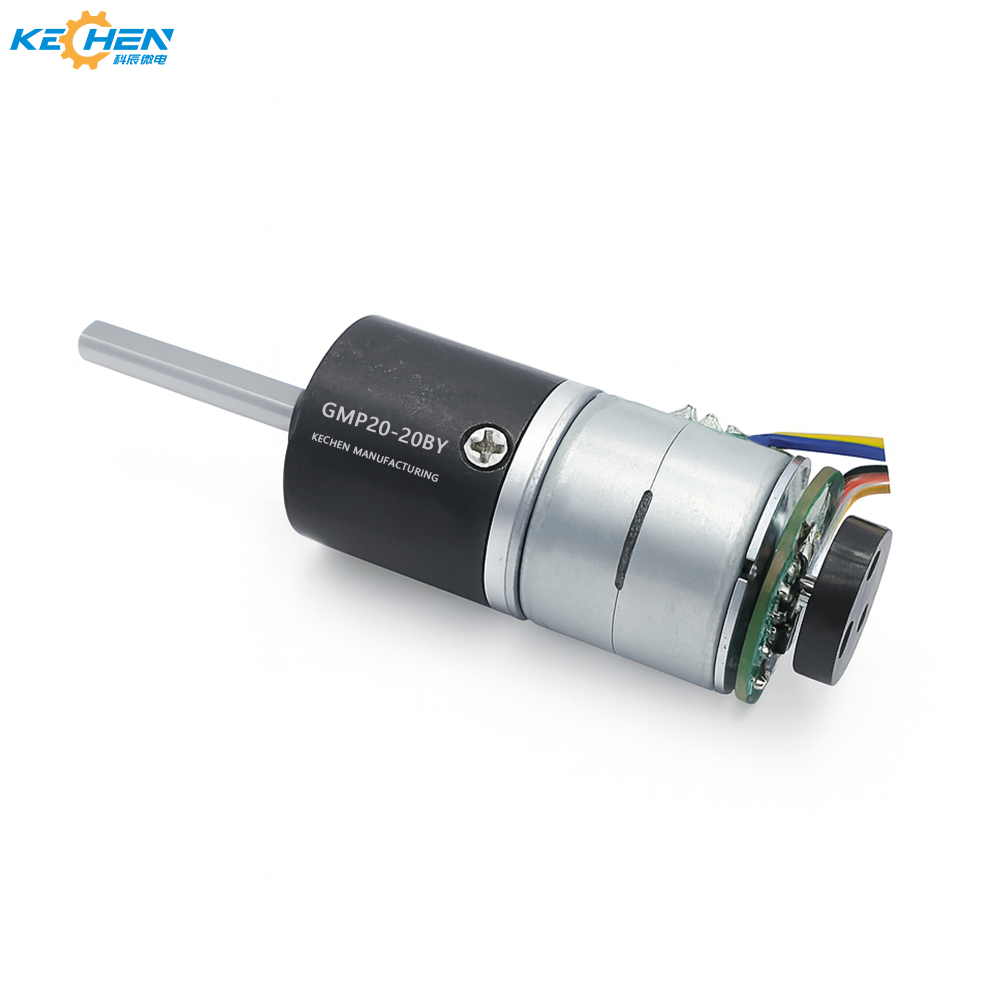

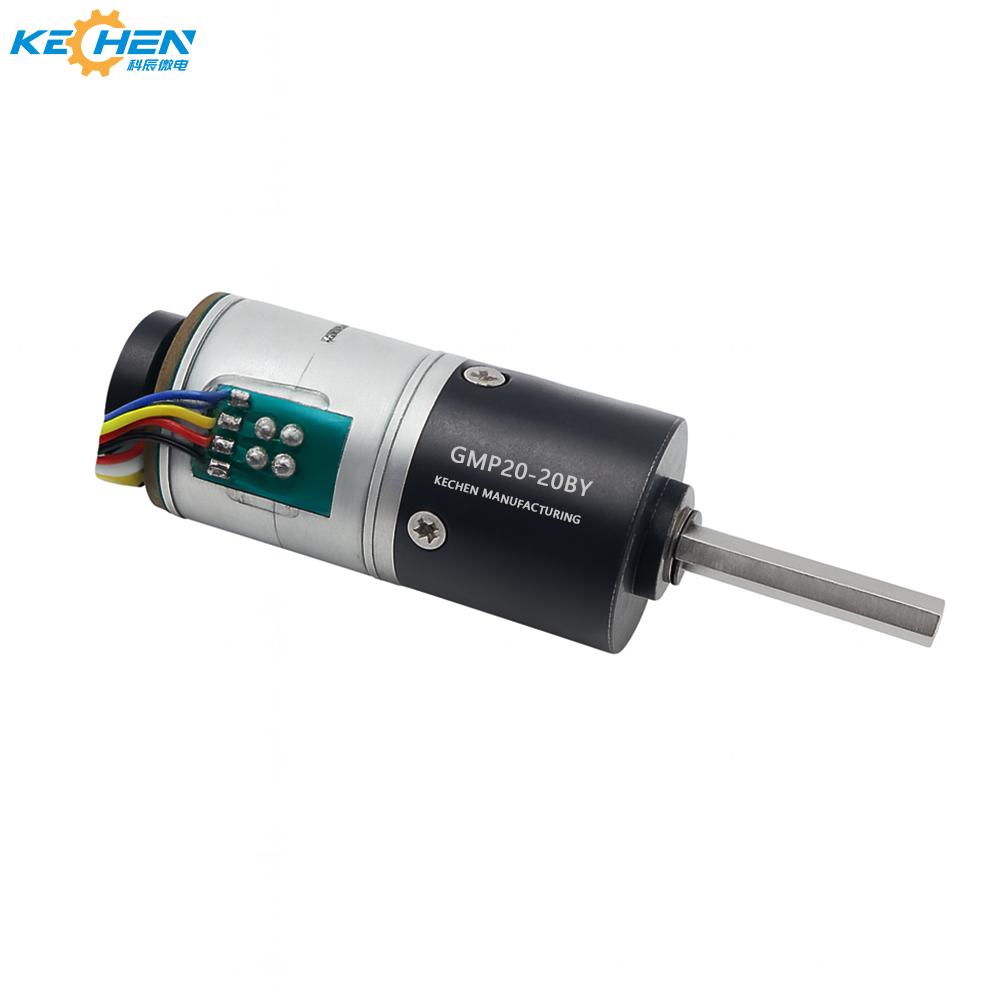

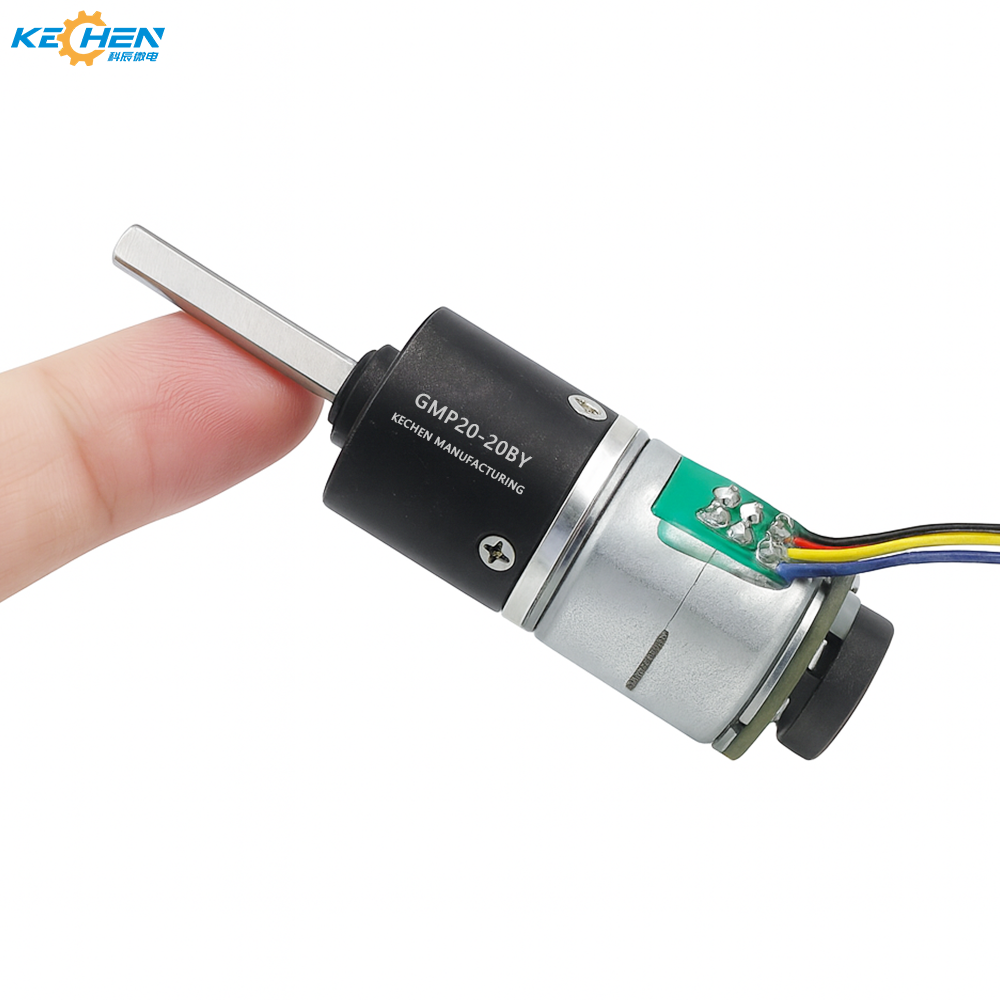

GMP20-20BY PM Industrial Stepper Motor Encoder 12V 150RPM 15Ohm Geared 20mm NEMA 8 0.05-0.5Nm Torque 2-Phase Medical Infusion

Product Description

Products Description
GMP20-20BY Stepper Motor Specifications
Motor model GMP20-20BY
Motor Type 20mm PM Stepper Motor
Motor Dimensions Φ20mm x 18mm
Rated Voltage 5.0 V/12.0 DC
Phases 2-phase, 4-wire
Step Angle 18° / step
Gear Ratio 4.38:1/23.7:1/29:1/84:1/104:1/128:1/157:1/370:1/455:1/560:1/690:1/850:1
Coil Resistance 10 Ω-40 Ω/phase(±10%)
Pull-out Torque MORE THAN 780g AT 700pps
OPERATING TEMPERATURE RANGE -0 ~ +55 °C
Final Output Step Angle 0.34 °/STEP
Line sequence A+A-B+B-
Terminal model 1.25/1.5/2.0/2.54
Encoder 3ppr/7ppr/12ppr

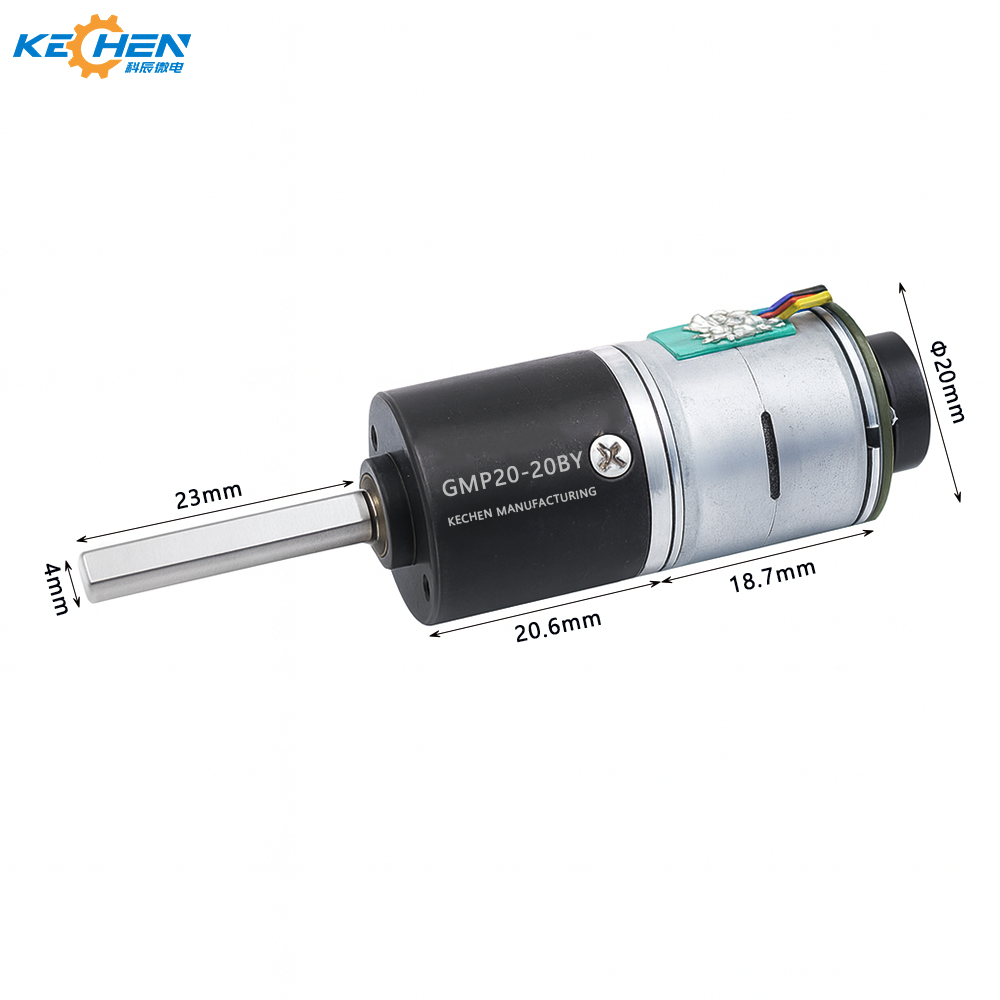

Motor Dimensions
Stepper Motor Front View

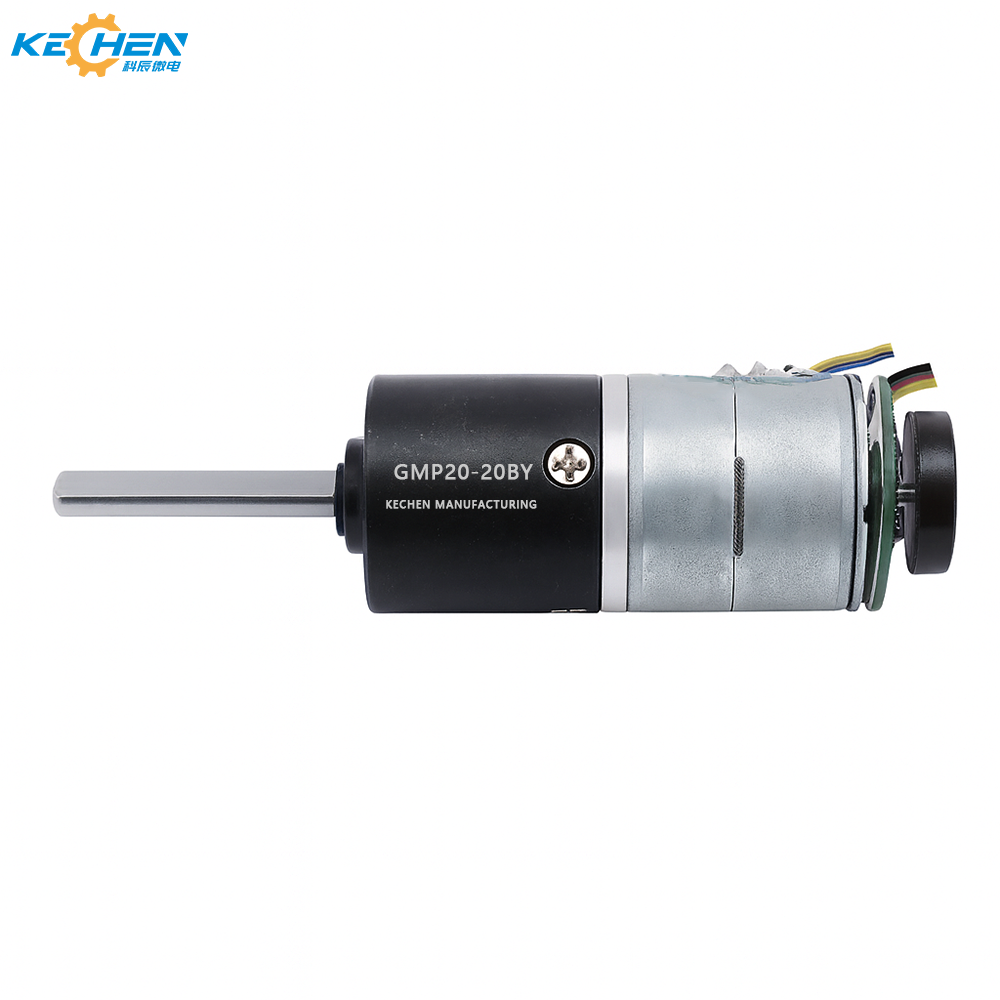

Stepper Motor Side View
GMP20-20 Stepper Motor Core Application Areas:
Micro-pumps/Injection Pumps
Microfluidic Analyzers, Optical Instruments, Precision Positioning Platforms (XYZ Axis Fine-tuning)
Medical and Portable Healthcare Devices
Small Infusion Devices, Portable Respirators, Sampling Equipment, Medical Metrology Units (Pharmaceutical Dosing)
Office Equipment
Portable Scanners, Mini Printers/Label Printers, Projector Optics
Small Valves and Fluid Control Devices
Small Electric Valves, HVAC Damper Control, Flow Regulation Control
Recommend Products
Recommended Products
Motor raw materials
Motor raw materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Factory Facility 1
Factory Facility 2
Factory Facility 3
Certifications
Certifications
Application Scenario
Application Scenario Matrix
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map
Market Share Graph
Global Distribution Networks
FAQ
How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Do you have individual design service for motors?
Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.
Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
What's your shipping method for motors?
For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
