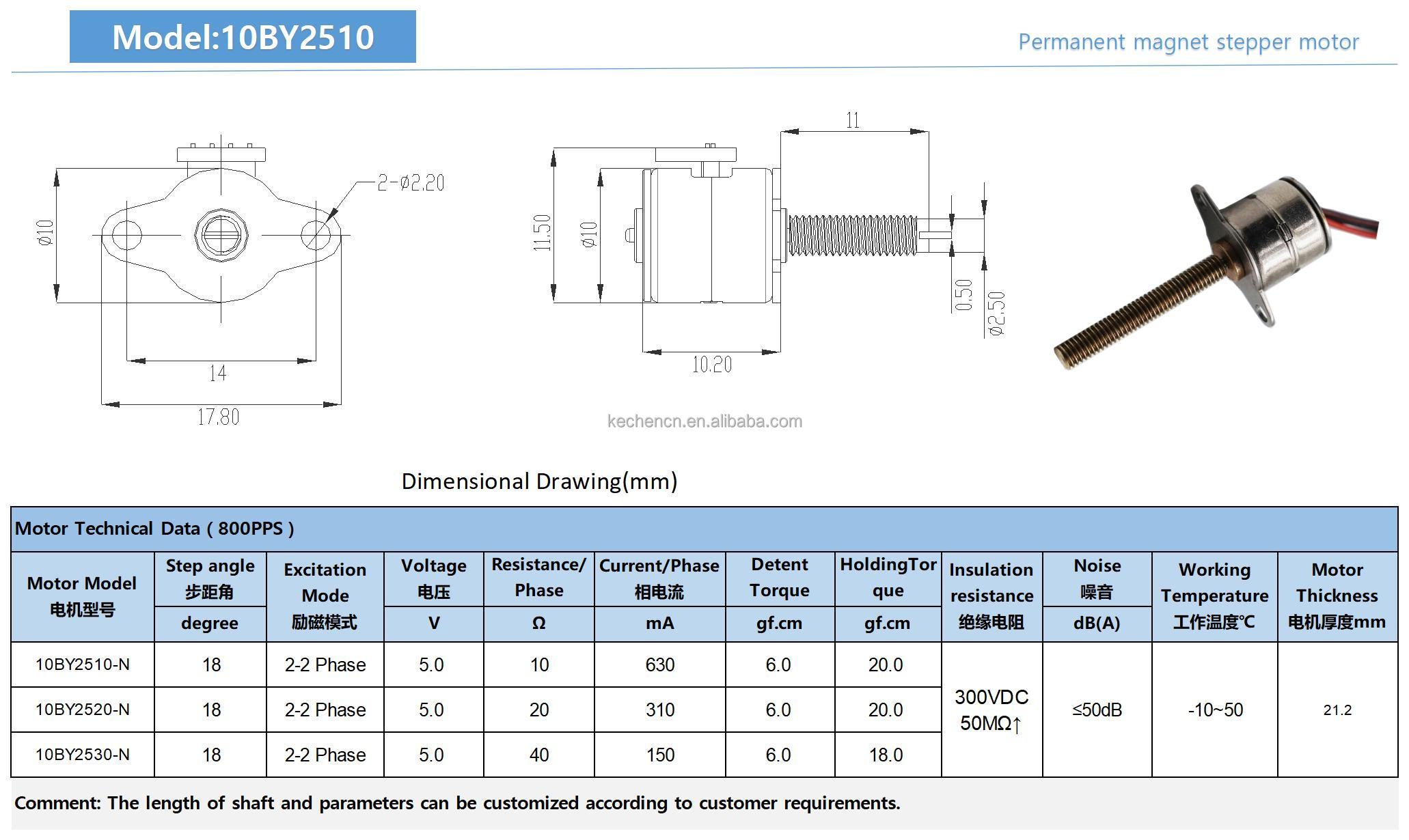

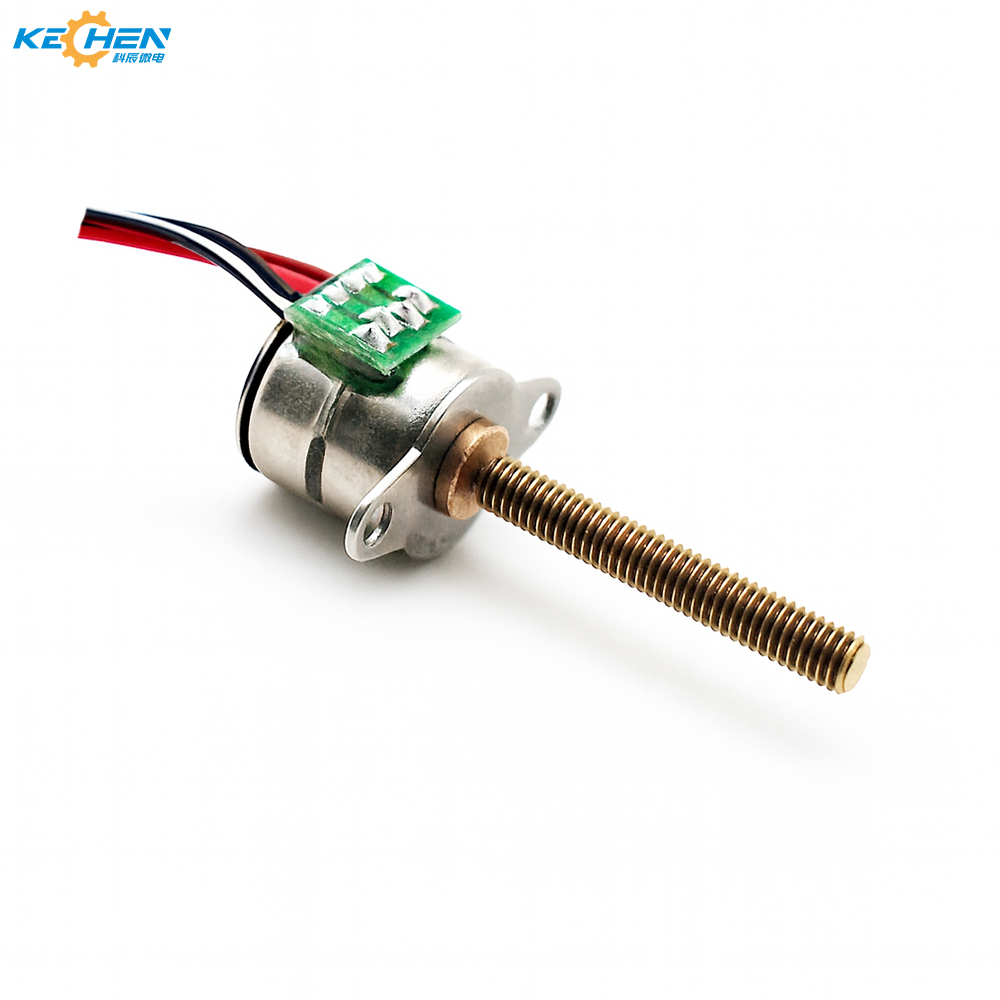

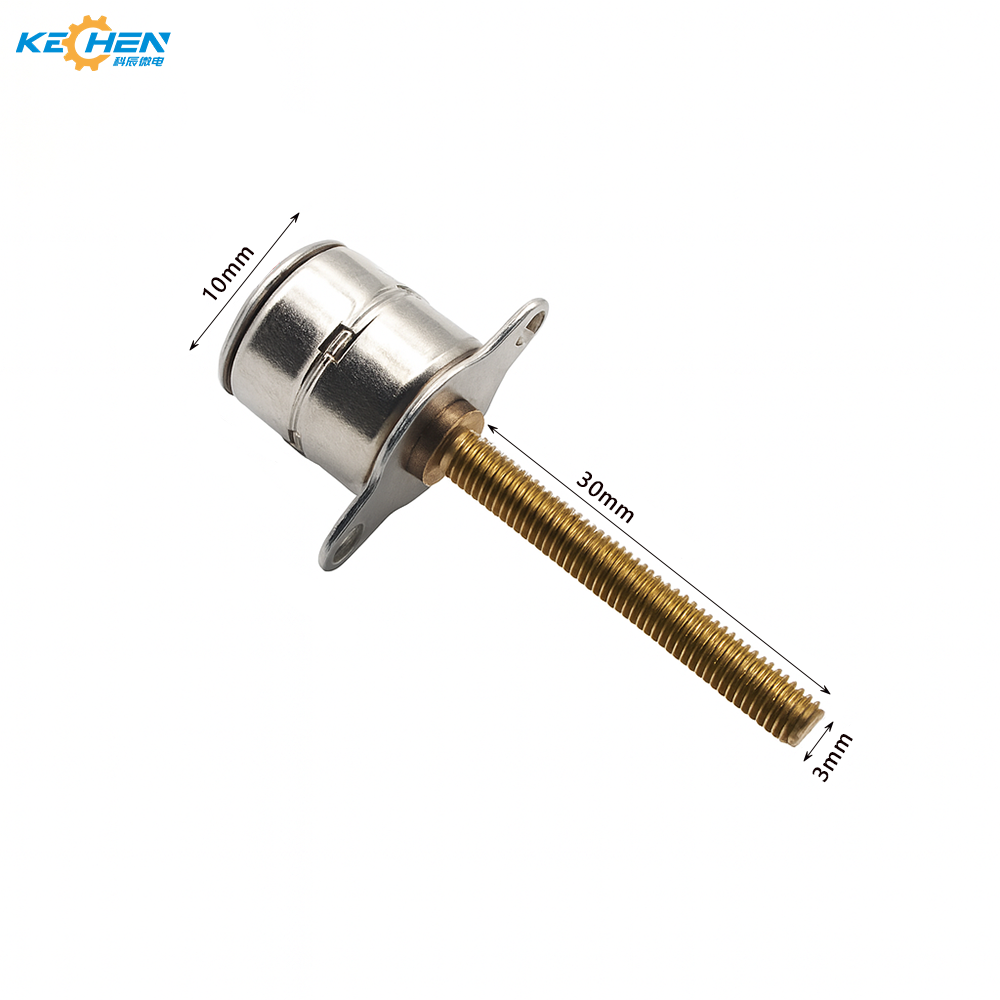

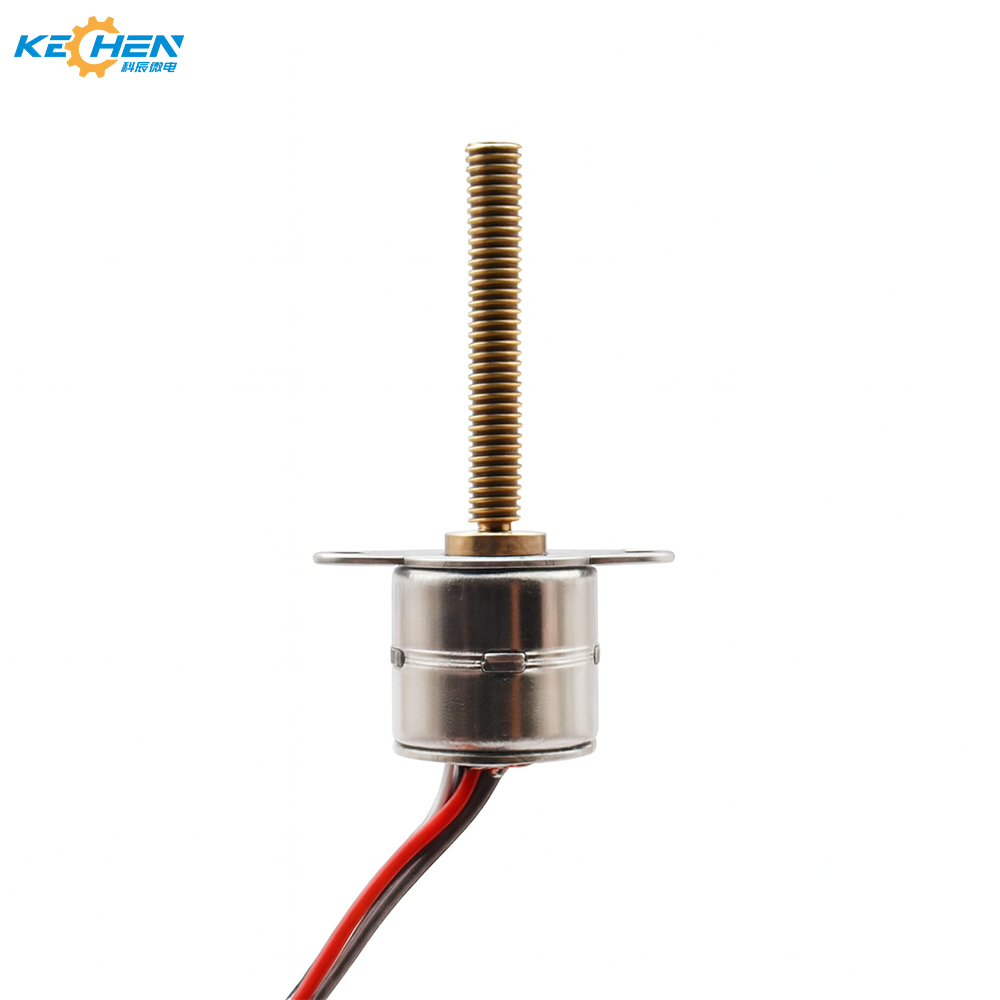

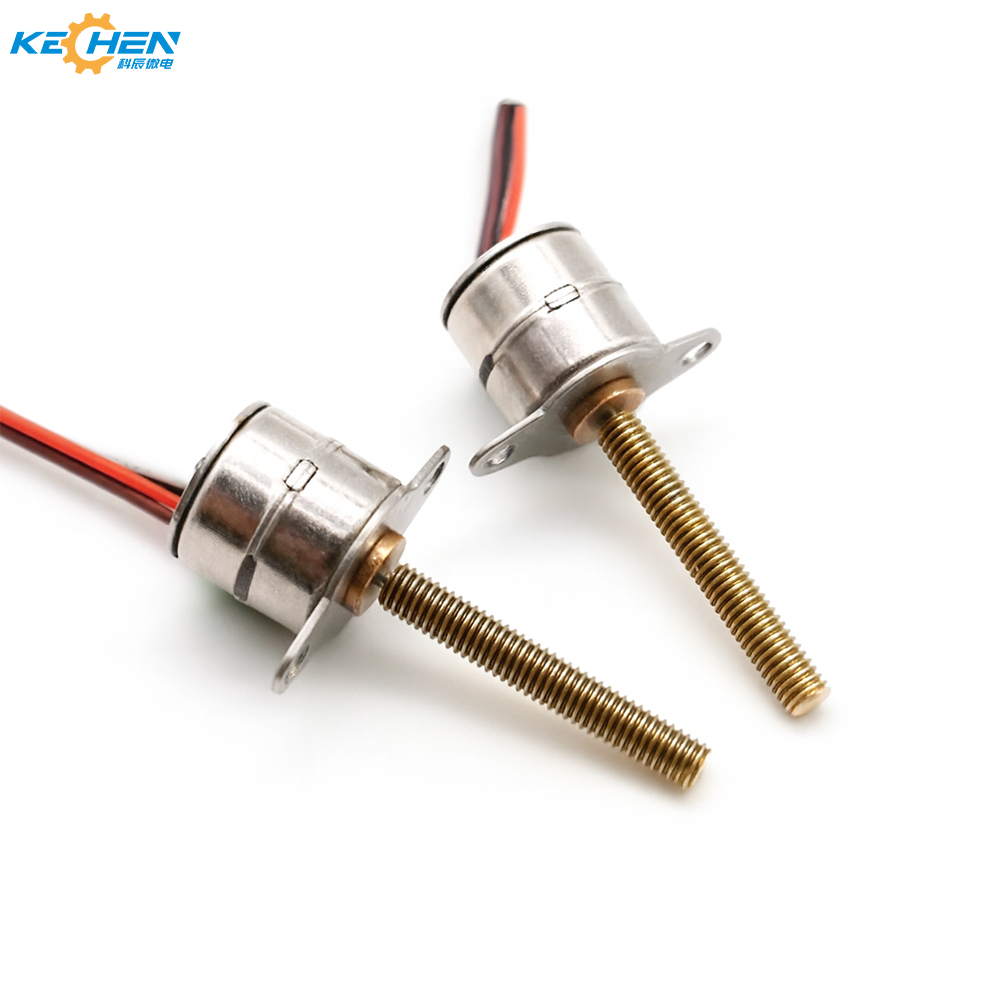

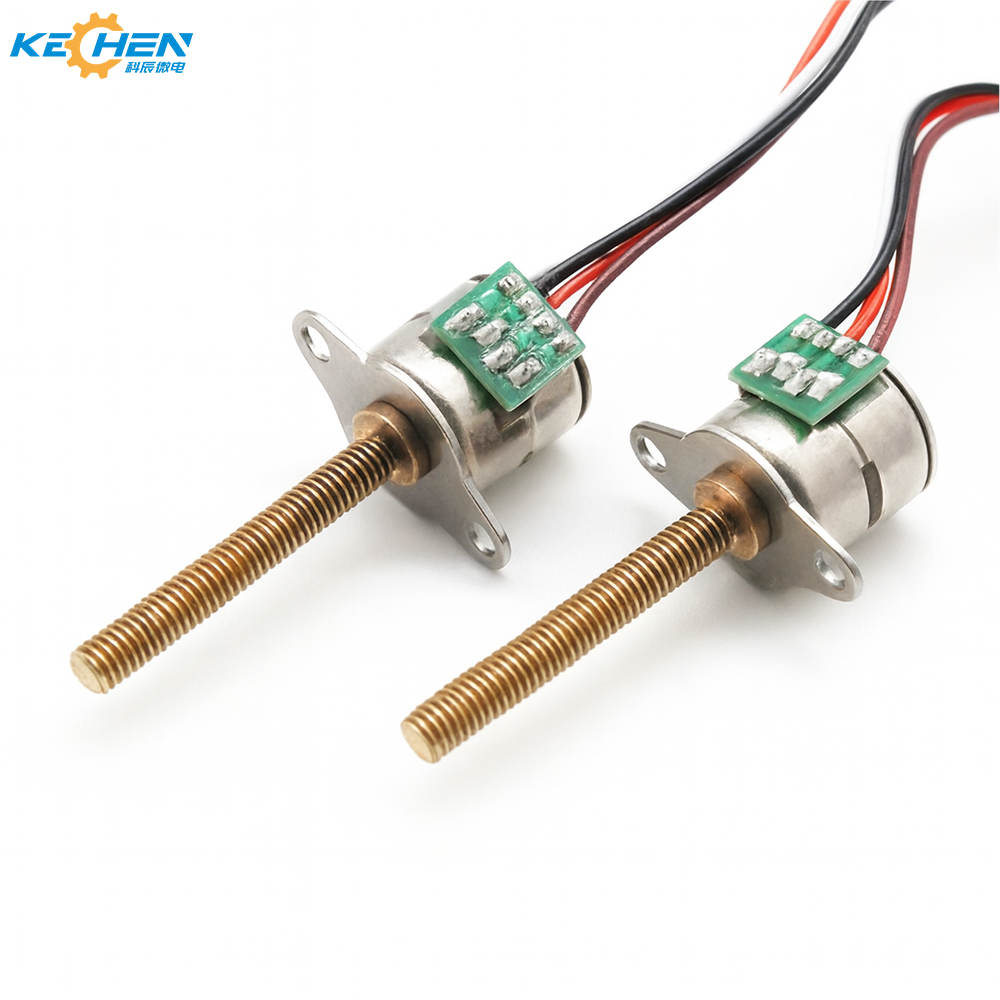

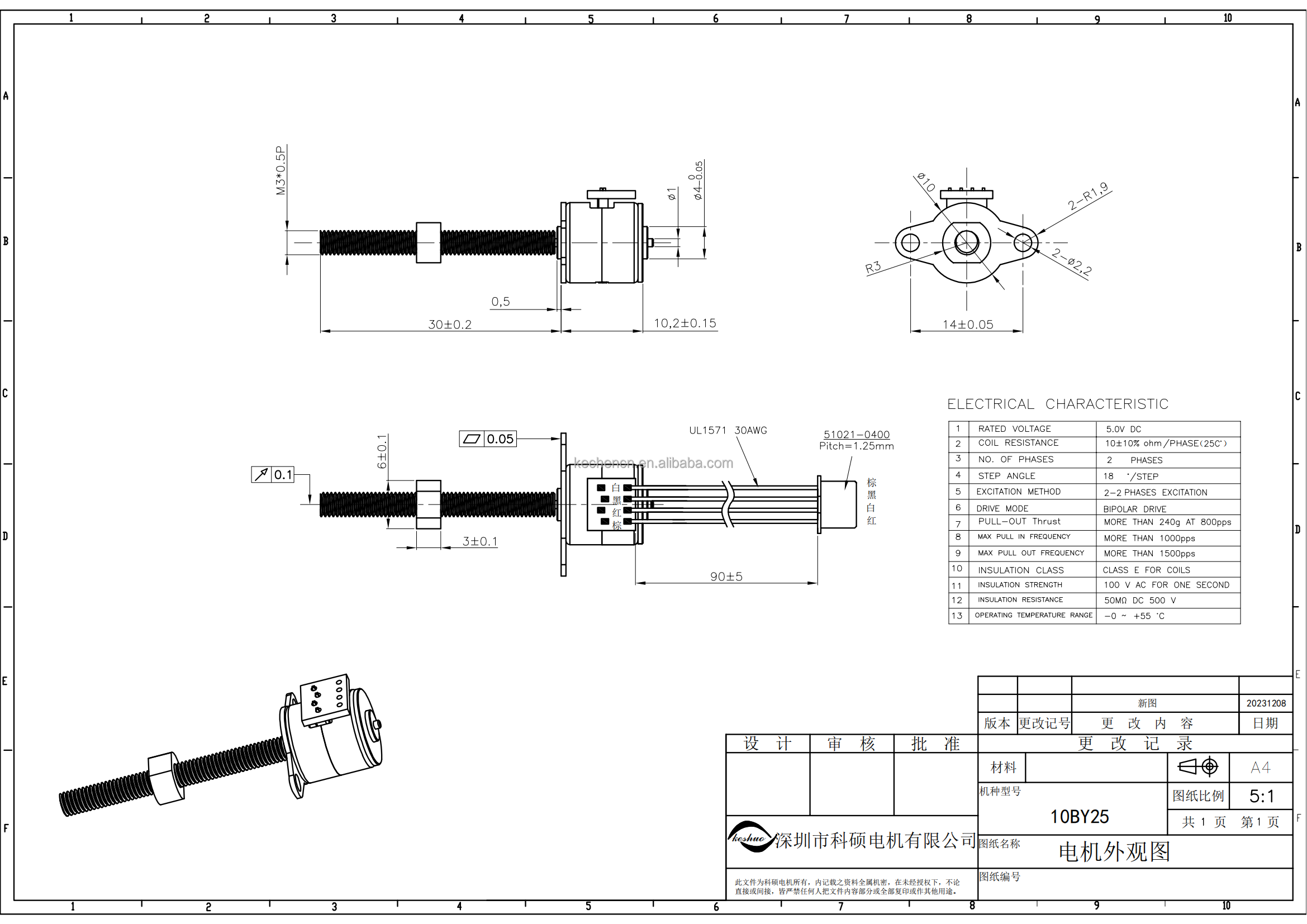

| 10mm Stepper Motor - Specifications | |
|---|---|
| Motor Diameter | 10 mm |
| Shaft Diameter | 3.0 mm (customizable) |
| Shaft Length | 4–10 mm customizable |
| Step Angle | 18° |
| Phases | 2-phase |
| Driving Mode | Bipolar or Unipolar |
| Rated Voltage | 3.3 V / 5 V / 6 V |
| Rated Current | 80–200 mA per phase |
| Coil Resistance | 10–50 Ω |
| Holding Torque | 25 gf·cm |
| Pull-in Frequency | 200–500 pps |
| Pull-out Frequency | 400–800 pps |
| Operating Temperature | −10 °C to +60 °C |
| Noise Level | <40 dB |
| Line sequence | A+A-B+B- |
| Weight | 7 g |

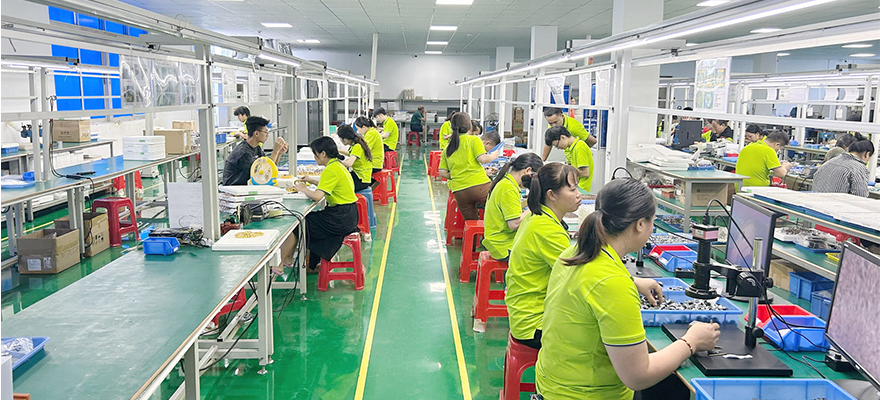

Established in August 2017, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". With a young and pragmatic, professional and efficient work team, advanced production facilities, efficient management, excellent quality, and high-quality services, it meets customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency.
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
