N20 Micro DC Vibration Motor 5V 9500RPM 12mm Precision Vibrating Core Medical Equipment Vibration Motor

Product Description

Products Description
N20 DC Vibration Motor Specifications
Operating voltage 3V–12V DC
No-load current 60–120 mA(3V) / 50–90 mA(6V)
No-load speed 6500–15000 RPM
Stalled rotor current 450–900 mA(3V)/ 250–600 mA(6V)
Eccentric block diameter 6–8 mm is commonly used
Vibration acceleration 0.8–1.5 g (depending on eccentric block size and voltage)
Vibration intensity moderate to strong vibration
Noise ≤ 50–60 dB (at 10 cm)
Lifespan 100–300 hours

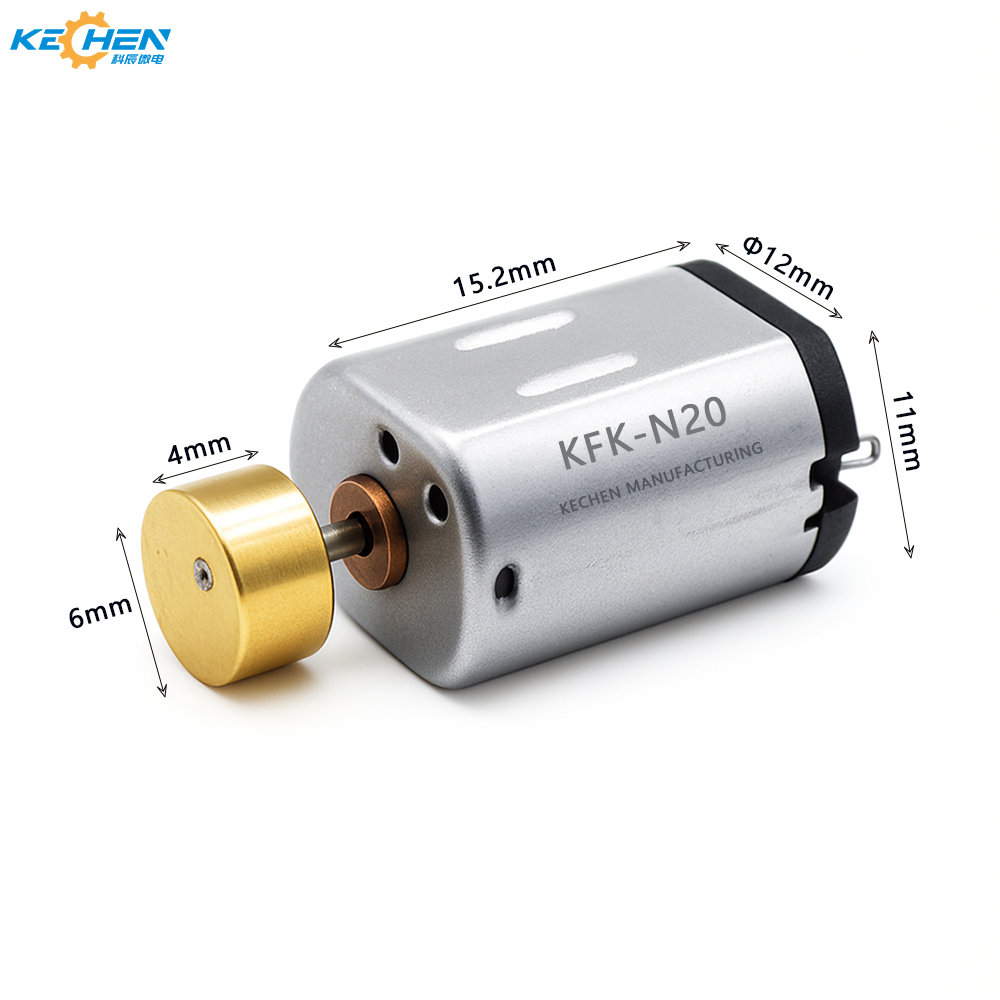

Product Image 1

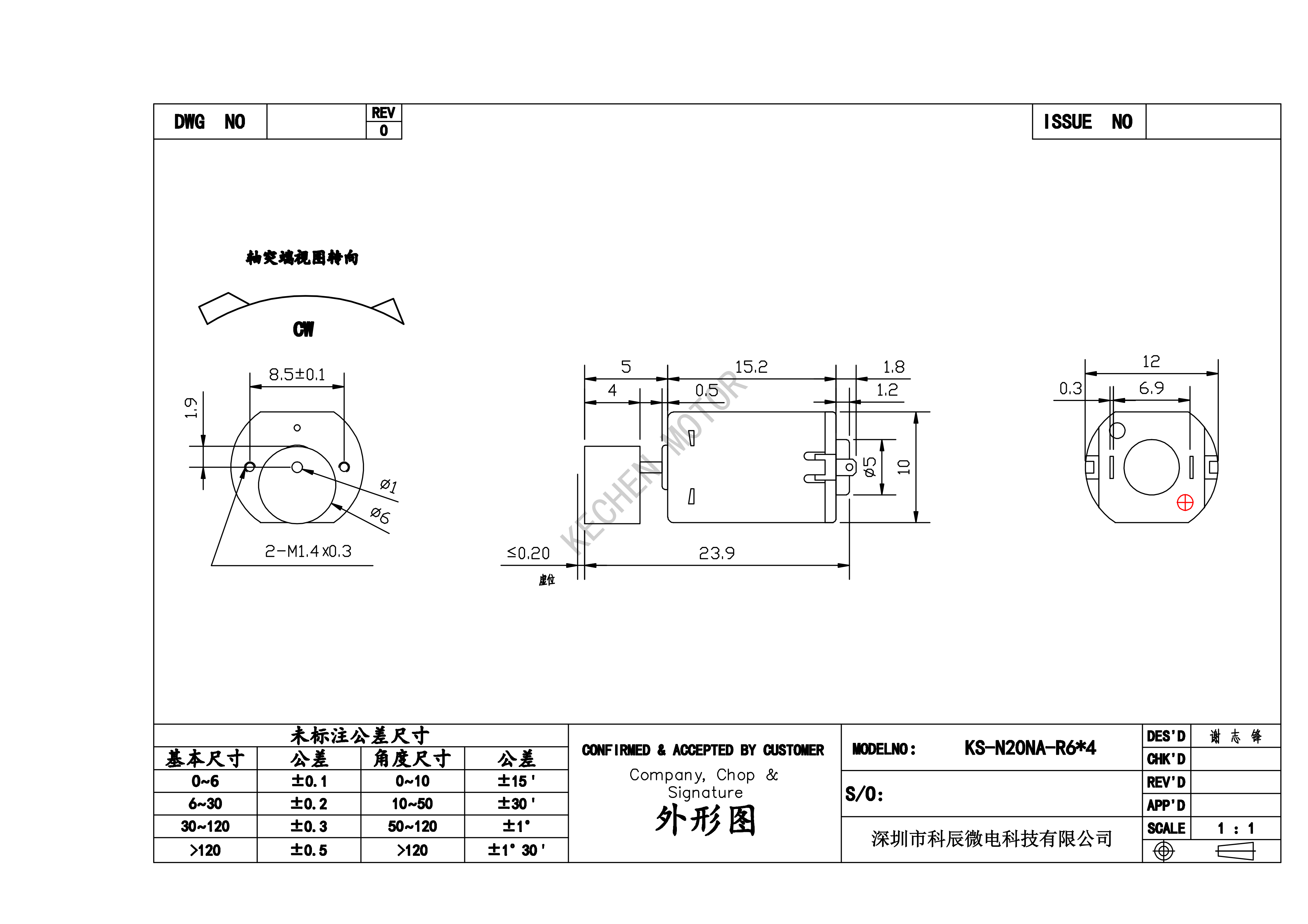

Product Image 2
Product Image 3
Product Image 4
Common Application Areas
Beauty devices (facial cleansing devices, iontophoresis devices, eye massagers)
Medical testing equipment
Wearable devices
Smart home devices
Car seat massagers, backrest massagers
Adult products
Smart toys
Application Area Image
Recommend Products
Recommend Product 1
Recommend Product 2
Motor Raw Materials
Motor raw materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Manufacturing Facility
Manufacturing Facility
Certifications
Certifications
Application Scenario
Application Scenario Image
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market 1
Global Market 2
Global Market 3
FAQ
Q What's your main products?
We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Coreless Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q What certifications do you have?
We currently have CE, ROHS, ISO13485, IATF16949 and REACH certifications.
