12V/24V Brushless DC Micro Motors 42mm Bldc with Permanent Magnet 3000rpm 5A Fan Pump Machine Direct from Manufacturer

Product Description

Products Description

42mm Small inner rotor Brushless DC Motor

42mm Small Inner Rotor Brushless DC Motor

  • Model Number: KC-BL4260I

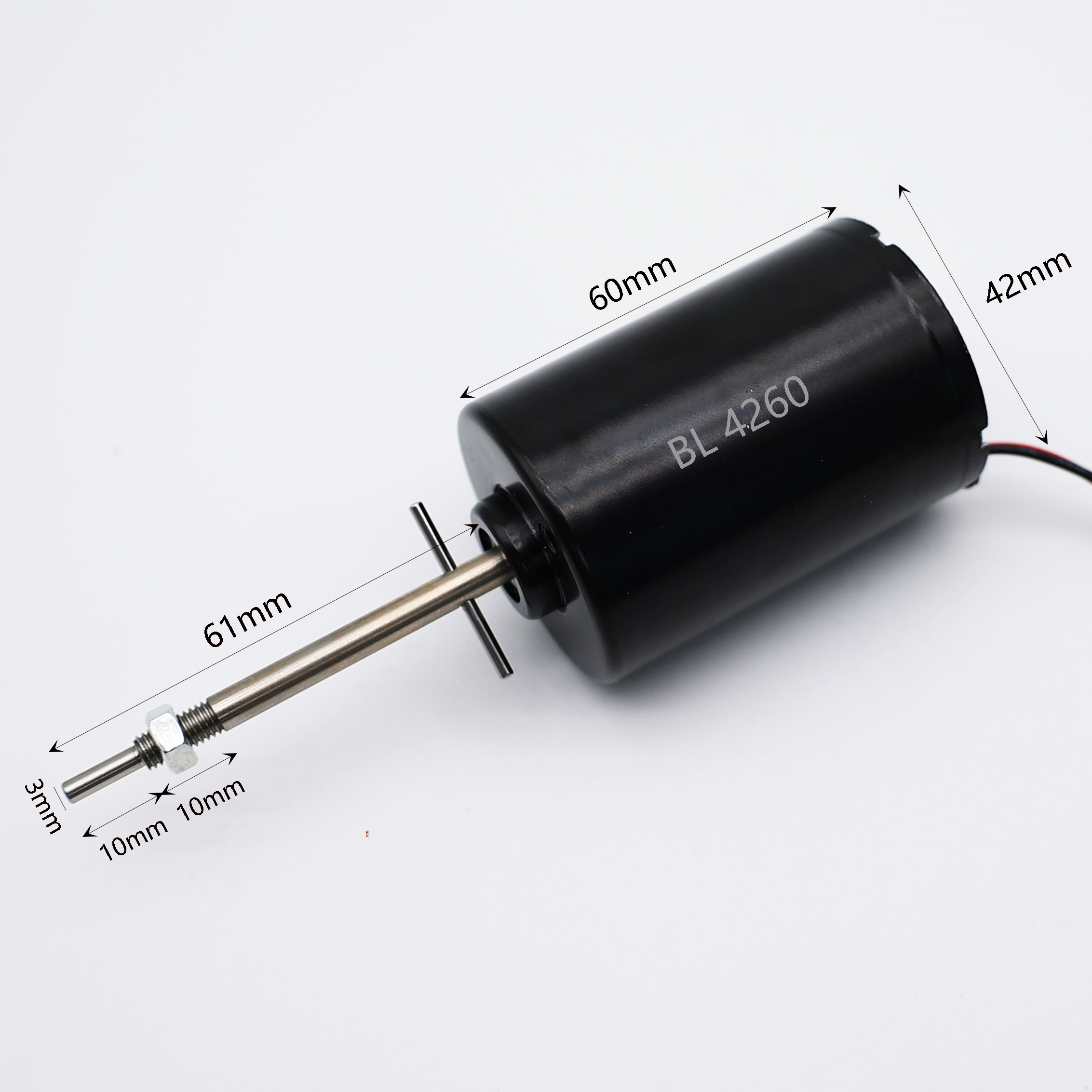

  • Shell Stator Size: Φ 42 * L 60 mm (Φ 1.65 inch * 2.36 inch)
  • Shaft: Φ 5.0mm [0.197 inch], screw lead, D shape, etc.
  • Shaft Length: Free customization
  • Rated Output Power: 10W - 78W
  • Rated Voltage: DC 6V - 24V
  • Rated Torque: up to 1000 gf-cm (98mNm)
  • Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
  • Driver (Optional): built-in driver PCB with MCU
  • Construction: Permanent Magnet
  • Commutation: Brushless-PWM drive
  • Speed Control: PWM pulse wide speed range
  • EMC & Noise: Low EMC | Low noise
  • Lifespan: Long lifespan up to 20,000 hours

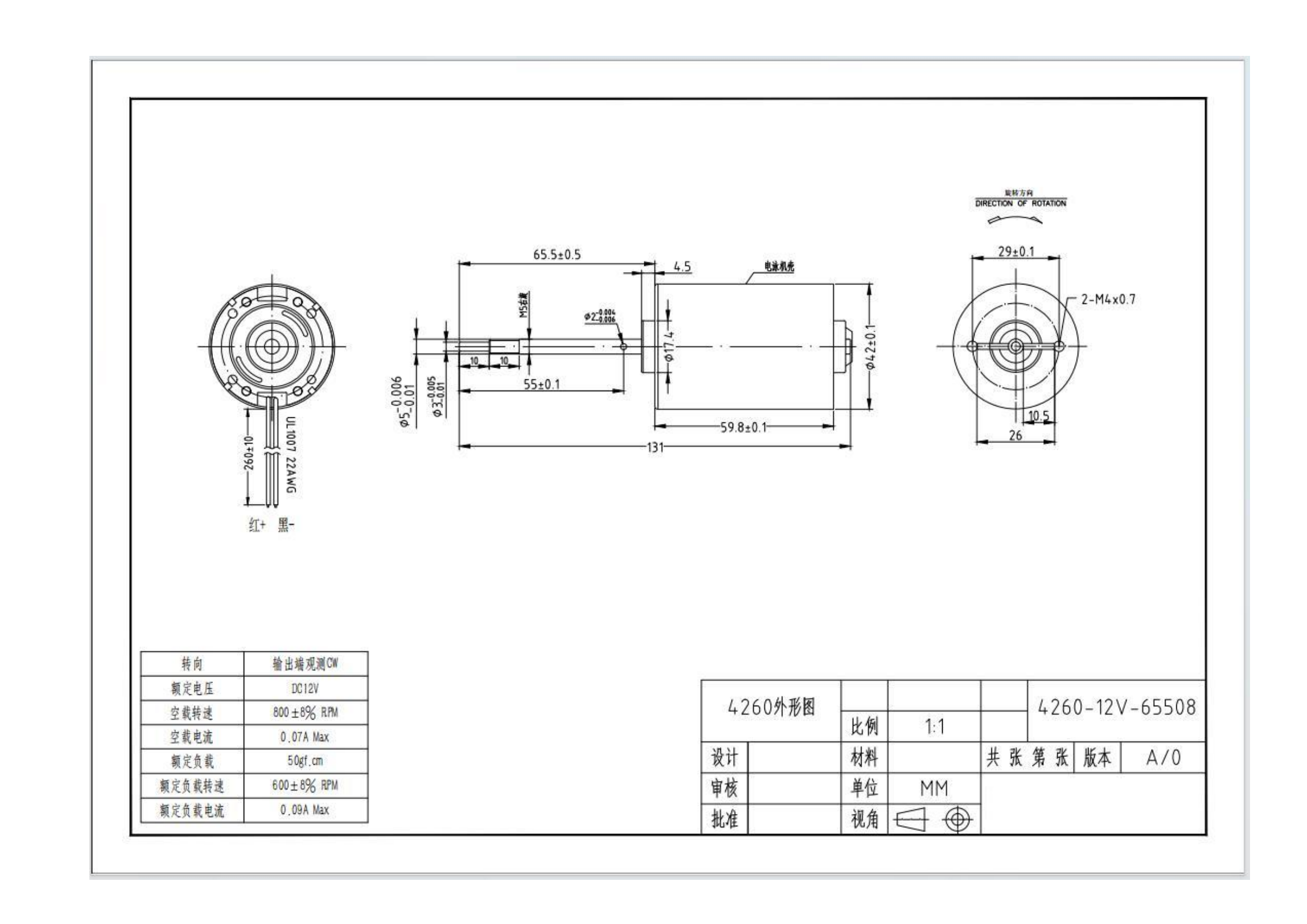

Technical Drawing

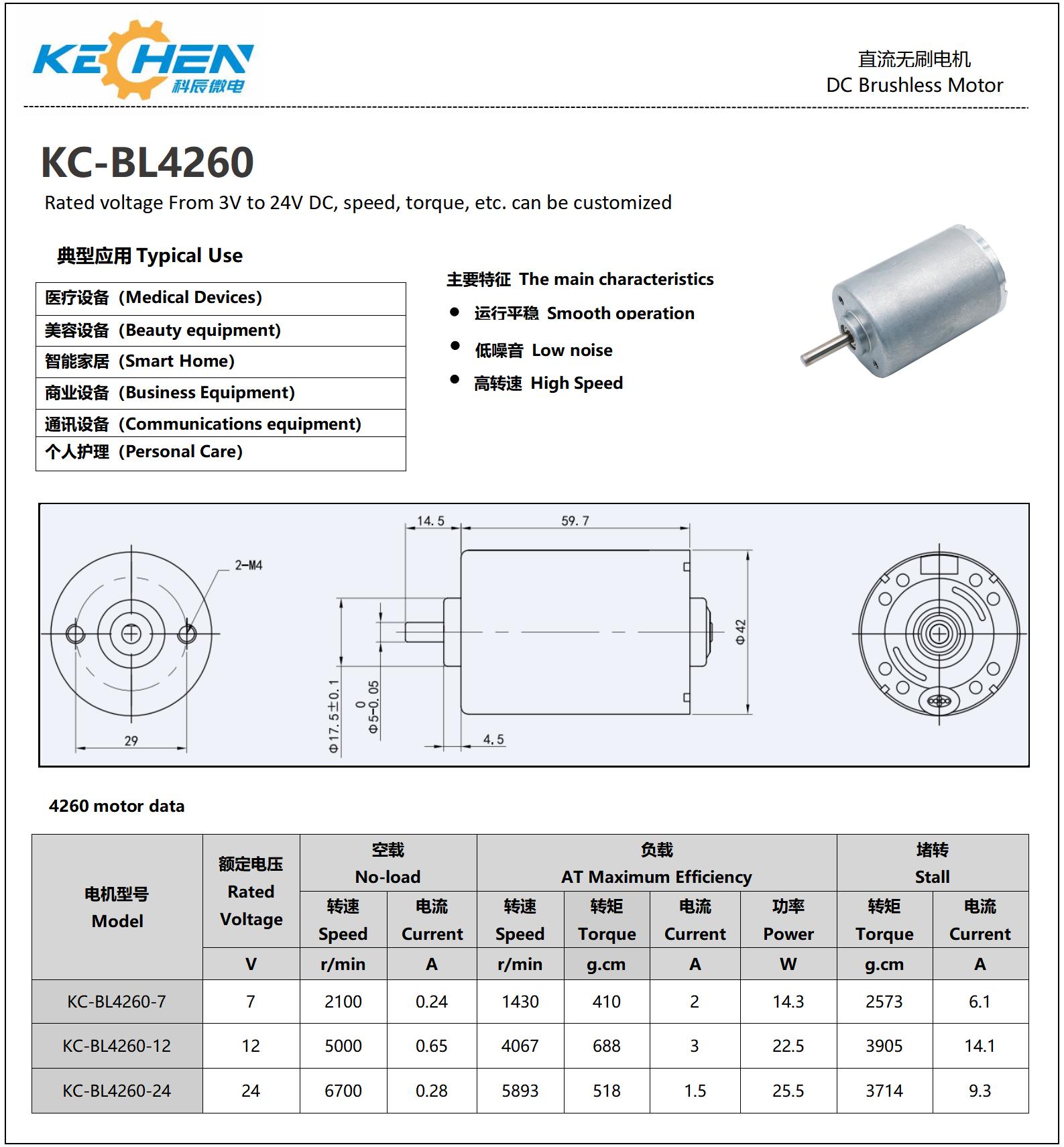

Performance Curve

Recommend Products

Recommended Products

Motor Raw Materials

Motor Raw Materials

Production Equipment

Production Equipment 1
Production Equipment 2
Production Equipment 3

Manufacturing Profile

We are a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. Our main products include various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Our micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, and more.

Since establishment, we have adhered to the concept of a "people-oriented, pioneering, and innovative spirit." Through rapid development, we maintain a group of young, pragmatic, professional, and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to satisfy continuously improving product standards, reduce energy consumption, ease production, and enhance efficiency.

Manufacturing Facility

Certifications

Product Certifications

Application Scenarios

Application Scenarios Overview
Medical Equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric Powered Equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Market Distribution Map 1
Market Distribution Map 2
Market Flow

Frequently Asked Questions

What are the primary specifications of the KC-BL4260I brushless motor?
The motor operates on a DC 6V - 24V rated voltage range, delivering 10W - 78W of output power. It features a shell stator size of Φ 42* L 60 mm and a rated torque reaching up to 1000 gf-cm (98mNm).
Can the motor shaft configuration be customized?
Yes, we support free customization of the shaft length. Standard and custom configurations like screw leads, D-shape shafts, and others are available depending on your requirements.
How long is the expected operational lifespan of this brushless DC motor?
Due to its high-quality brushless design, permanent magnet construction, and built-in components, this motor provides a long operational lifespan of up to 20,000 hours under rated operating conditions.
Does this motor model support integrated speed control?
Yes, the motor features a Brushless-PWM drive commutation system that enables a wide range of speed control using PWM pulse width signals. An optional built-in driver PCB with MCU is also available.
What are the main application areas for these micro motors?
These motors are widely applicable in medical devices, business machines, smart home electronics, electric powered tools, food & beverage appliances, and automated robotics systems (like AGVs, service, and delivery robots).
