Bl2430 24mm Brushless DC Motor 12V 500RPM with Permanent Magnet Construction for Home Appliance & Cosmetic Instrument Use

Product Description

Products Description

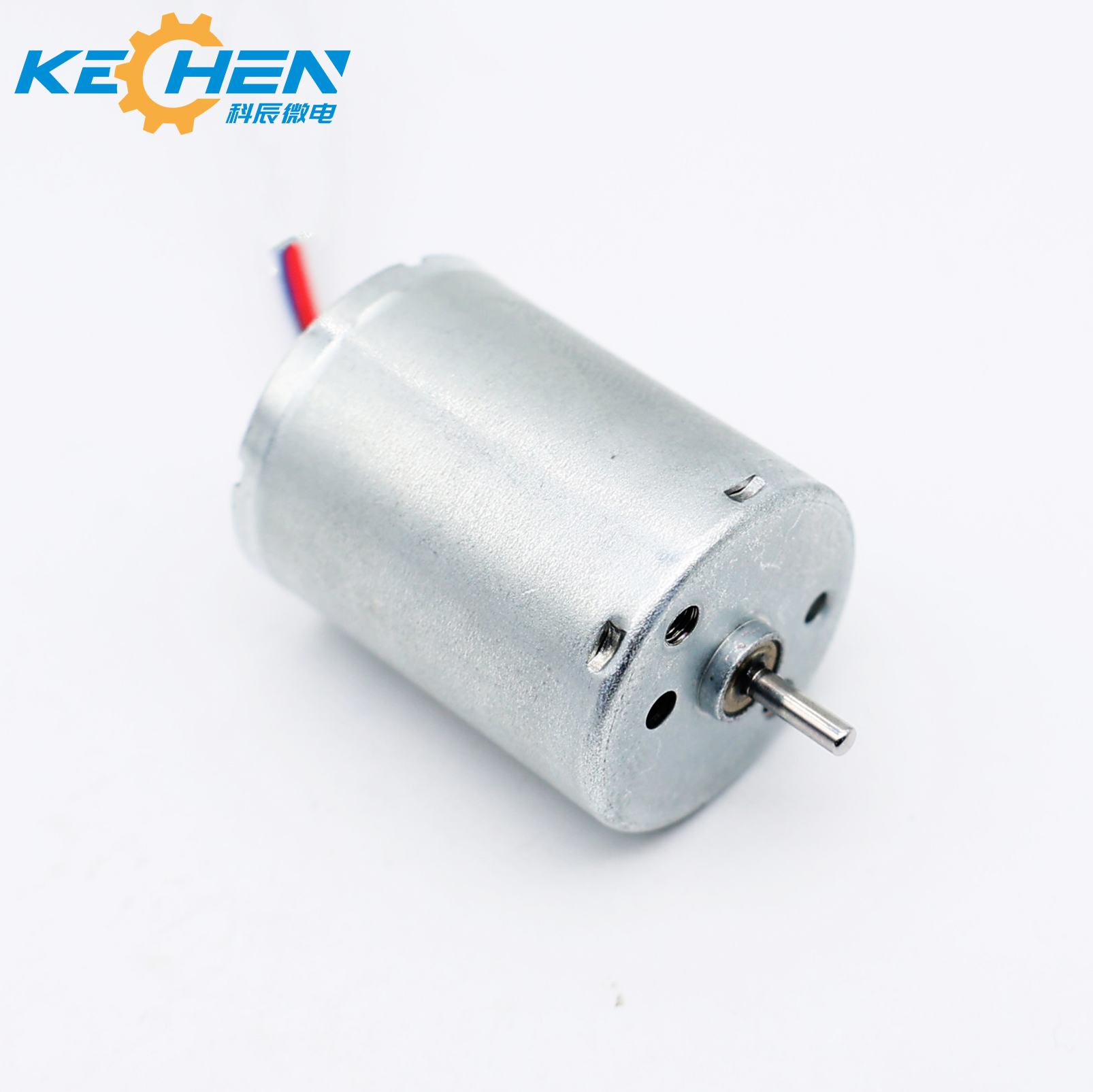

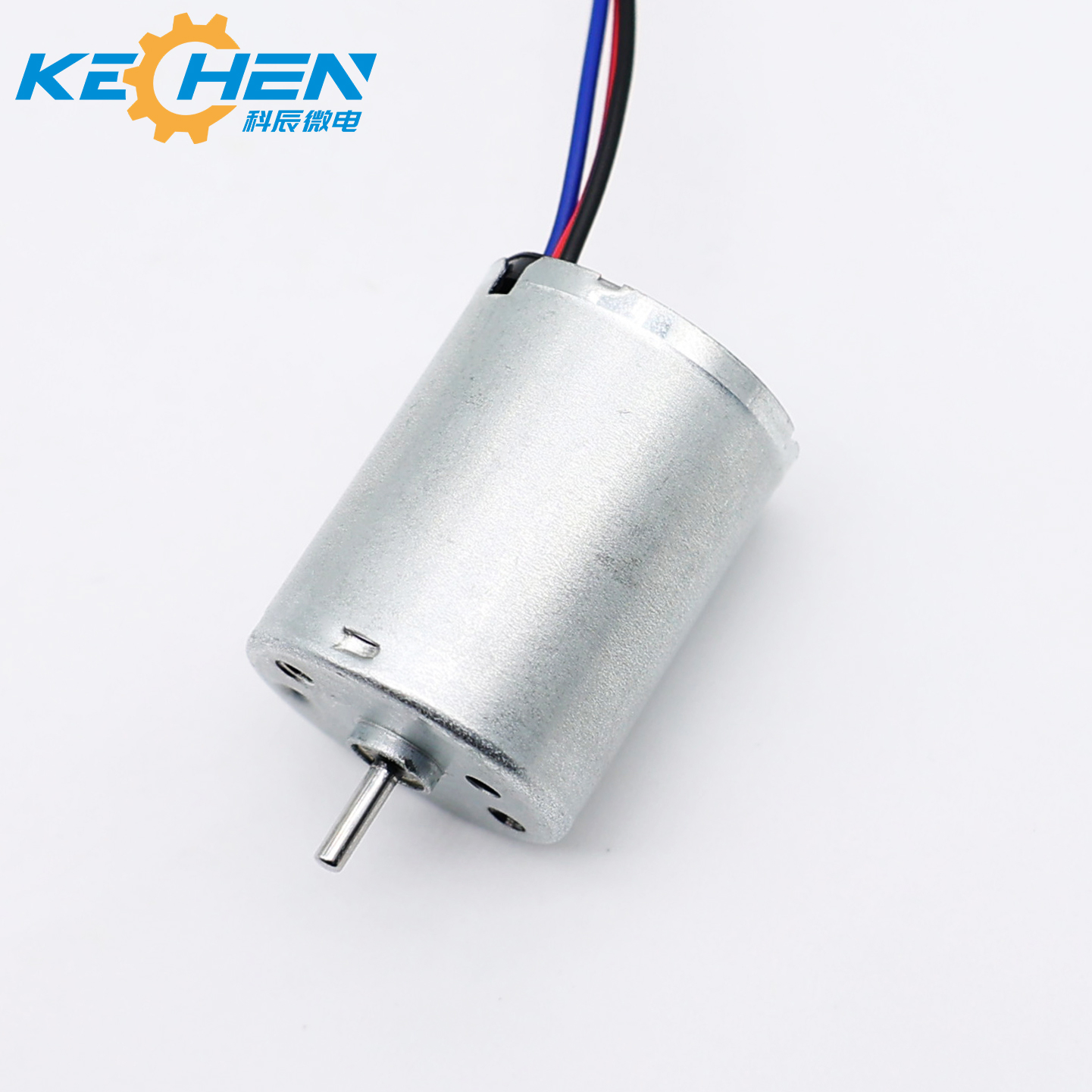

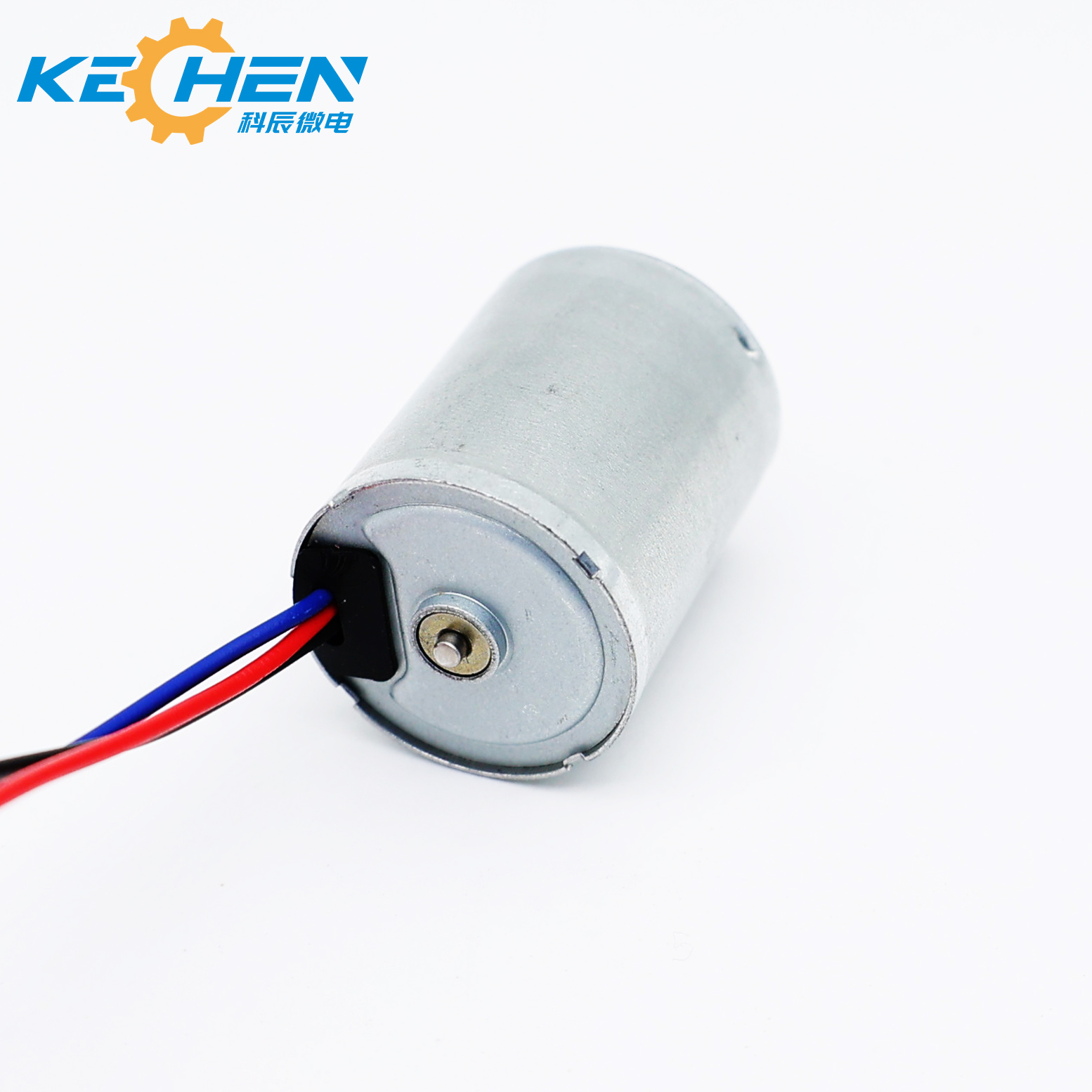

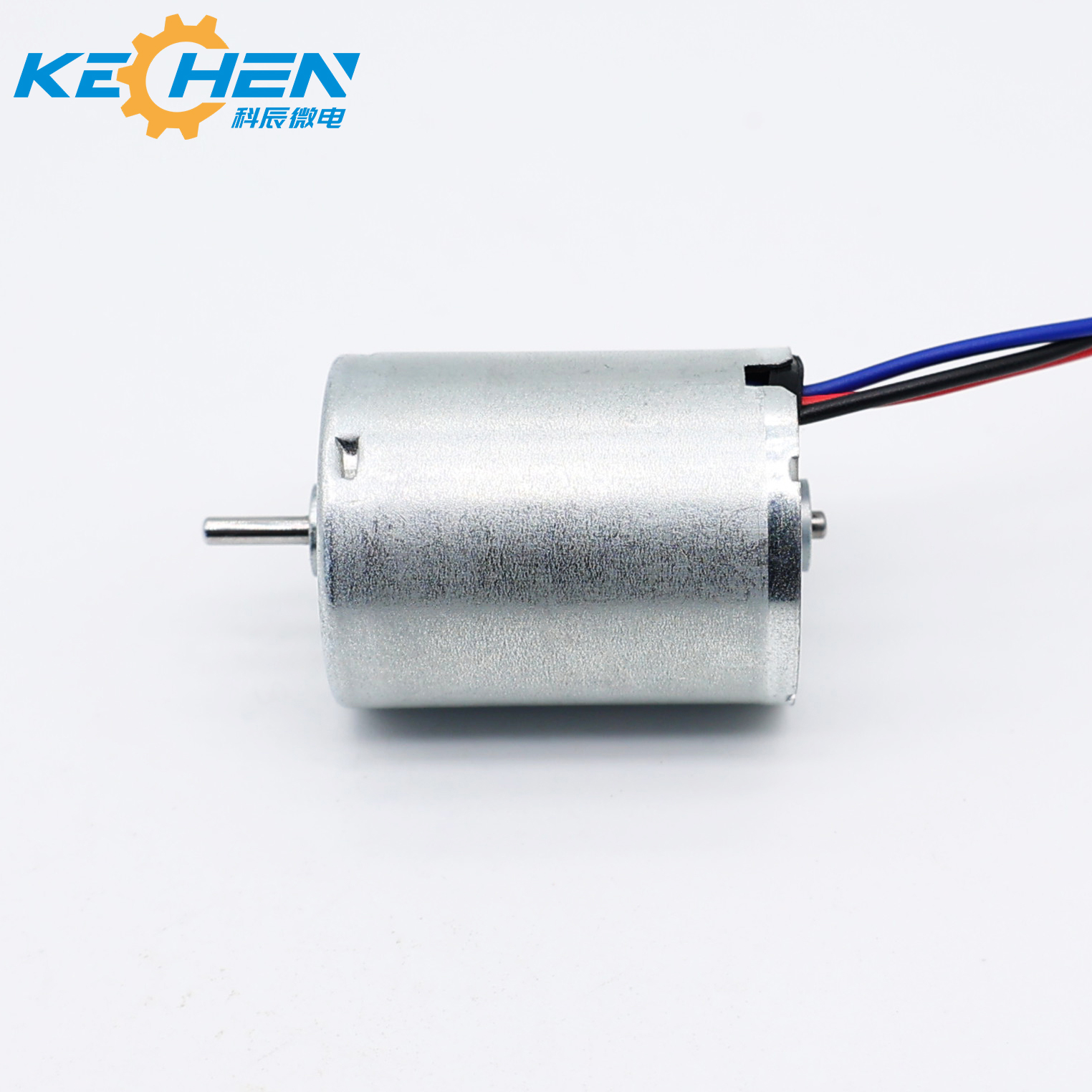

24mm inner rotor brushless dc motor
24mm inner rotor brushless dc motor
Model Number: BL2430

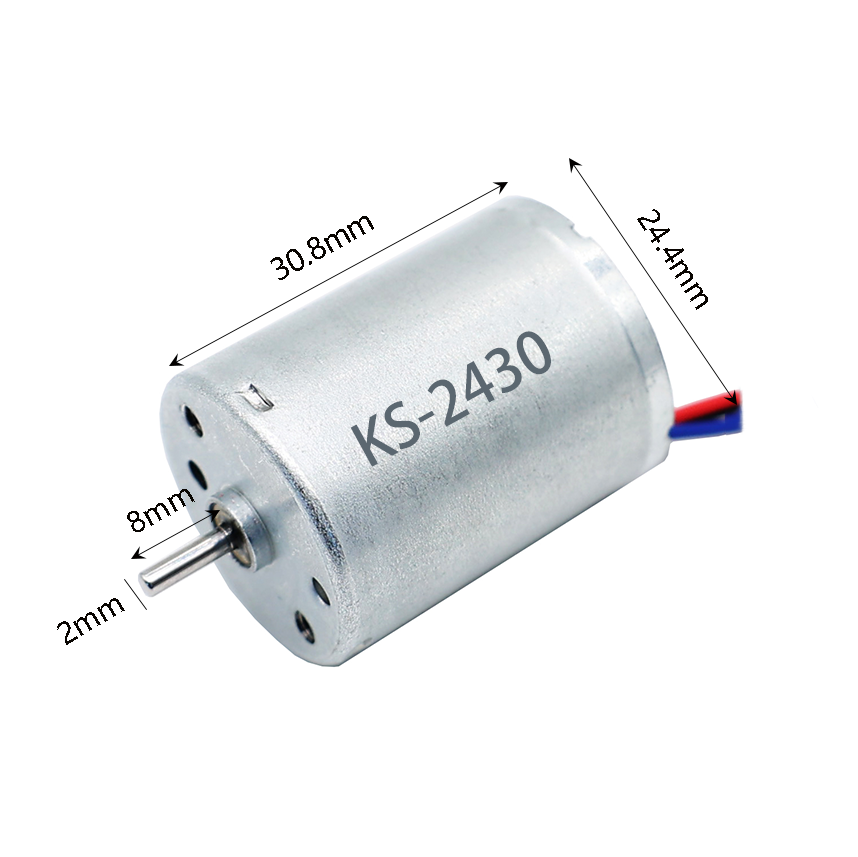

Shell Stator Size: Φ24* L 30 mm(Φ 0.945 inch * 1.18 inch)
Shaft: Φ2.0mm[0.079 inch]), screw lead, D shape, etc.
Shaft length: free customization
Rated Output Power: 1W - 9W
Rated Voltage: DC 6V - 24V
Rated Torque: up to 75 gf-cm(7.35 mNm)
Rotor: Inner rotor with Nd2Fe14B strong magnet
Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
Driver(Optional): built-in driver PCB with MCU
Construction: Permanent Magnet
Commutation: Brushless-PWM drive

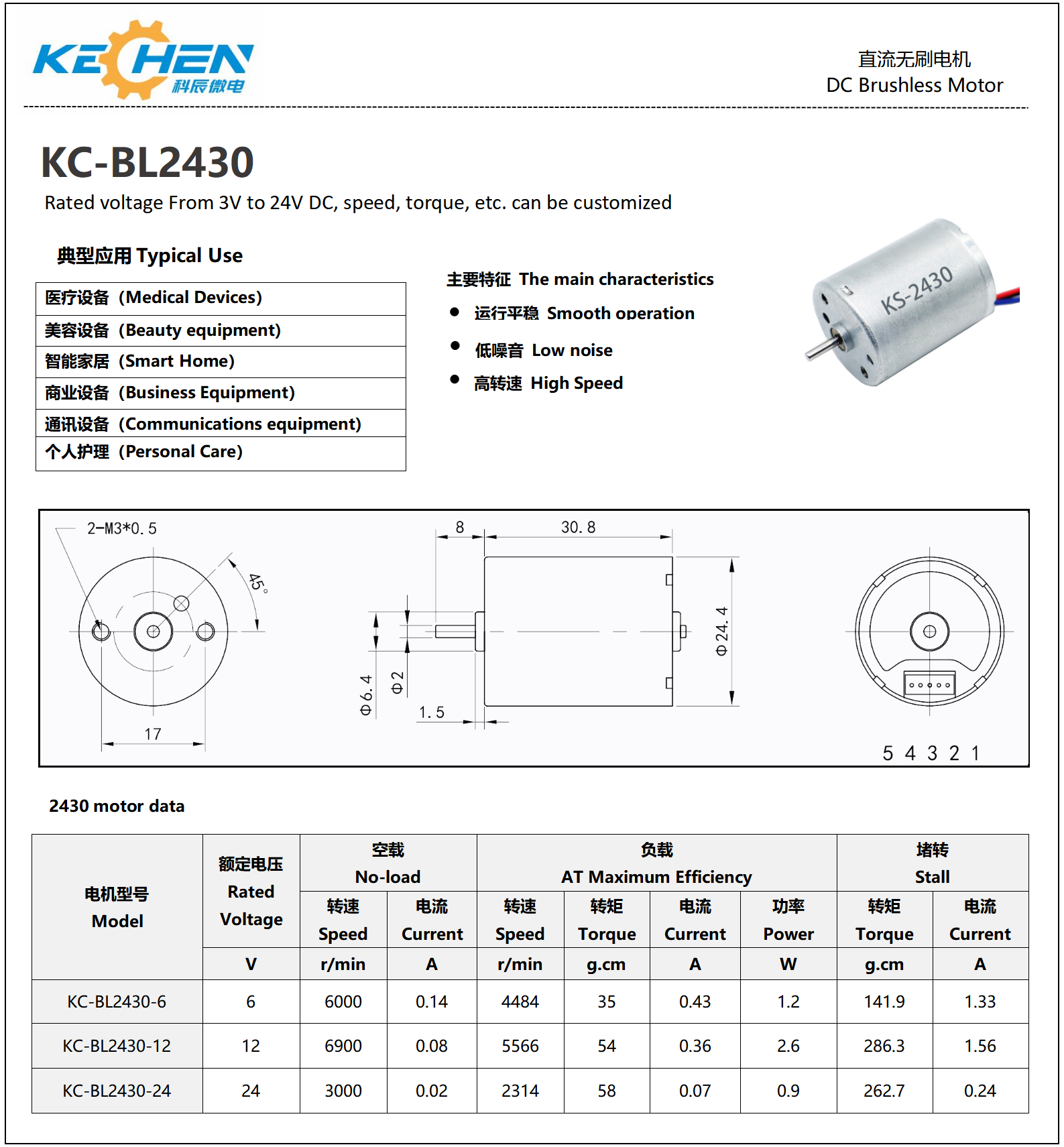

Product detail diagram
Recommend Products
Recommend products list
Motor raw materials
Motor raw materials details
Production Equipment
Company Profile
Company Facility

Established in August 2009, it is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications
Certificates
Application Scenario
Application Scenarios map
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map 1
Global Market Map 2
Distribution layout
Frequently Asked Questions (FAQ)
Q1: Can the motor shaft be customized?
A1: Yes, the shaft length and shape (such as screw lead, D shape, etc.) can be fully customized according to your specifications.
Q2: What are the main applications of these micro motors?
A2: They are widely used in medical equipment, business machines, smart home systems, food & beverage appliances, robotics, and electric powered equipment.
Q3: Does the BL2430 motor include a driver?
A3: The motor supports an optional built-in driver PCB with MCU based on your system requirements.
Q4: What is the rated voltage and output power range for the BL2430?
A4: The rated voltage ranges from DC 6V to 24V, and the rated output power ranges from 1W to 9W.
Q5: What kind of rotor magnet and structure does this motor use?
A5: It features an inner rotor with Nd2Fe14B strong magnet and is structured with 3 phases, 9 slots, 12 poles, and 3 hall sensors.
