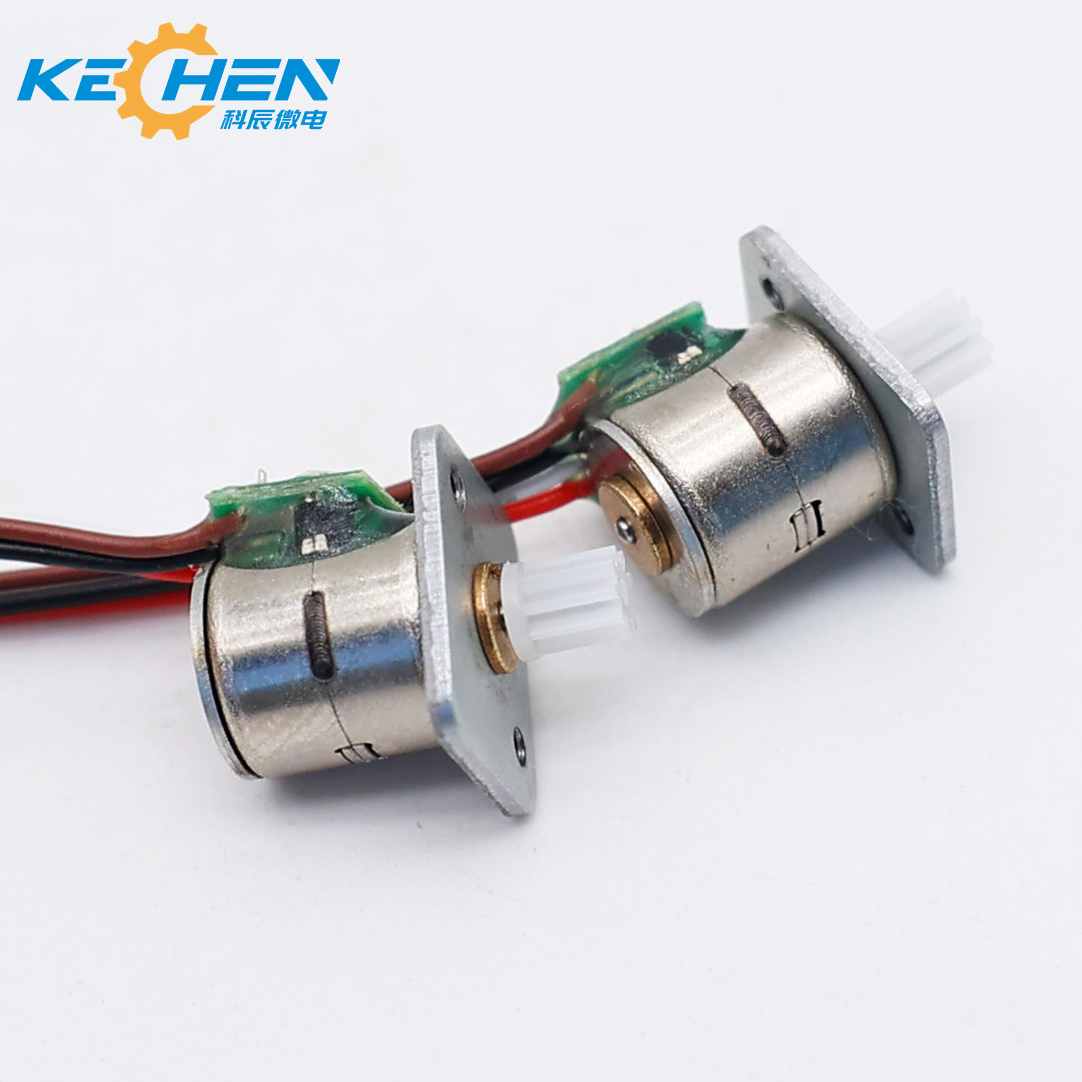

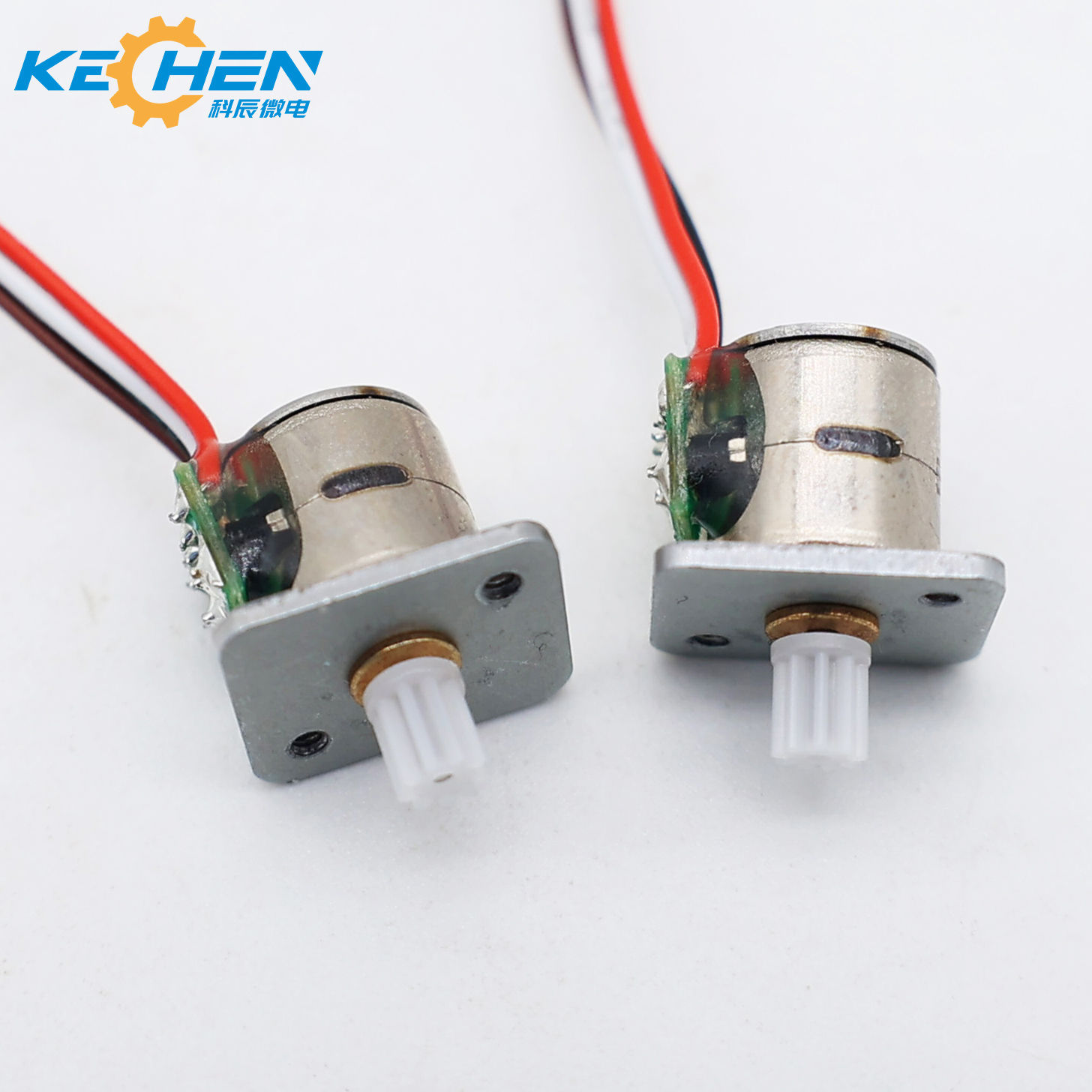

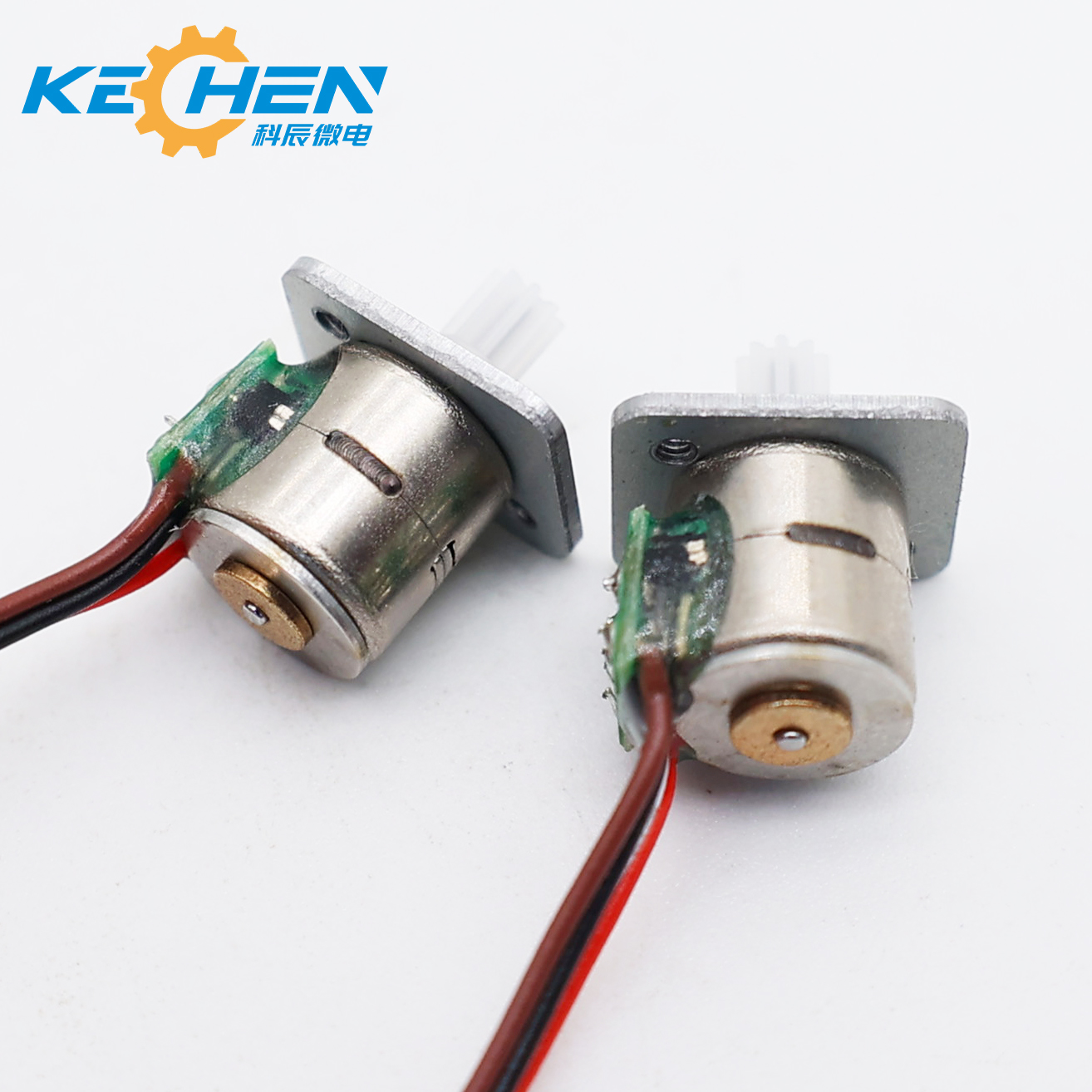

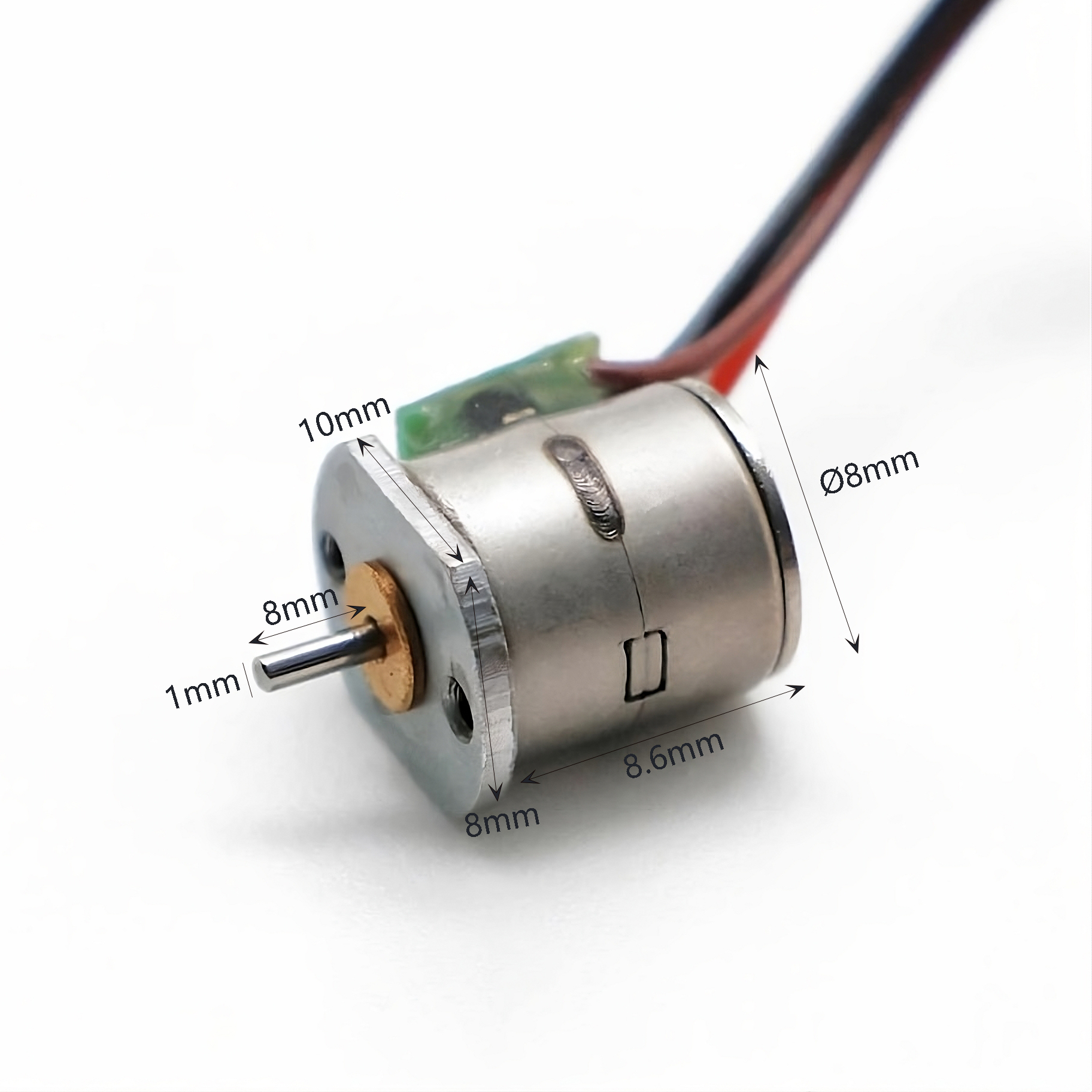

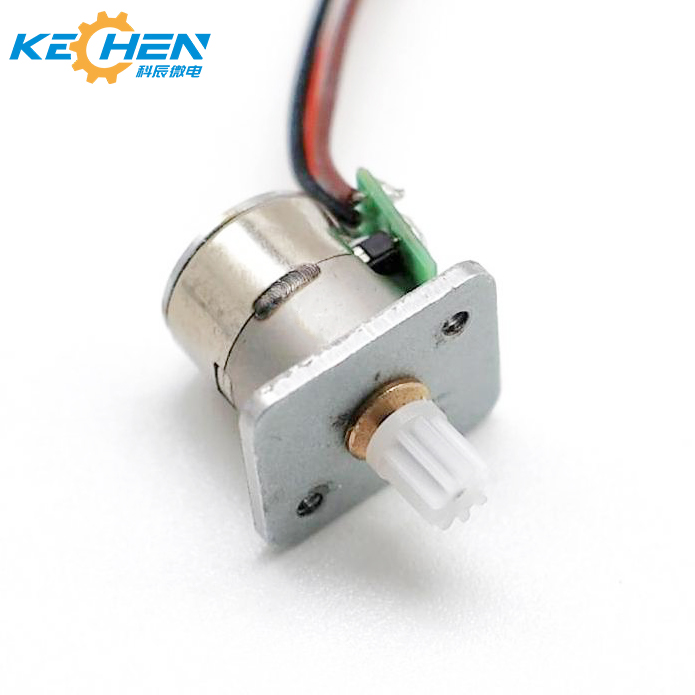

8mm 3V/5V 2-Phase 18 Degree Micro Stepping Permanent Magnet Stepper Motor for Medical Equipment

Product Description

Products Description

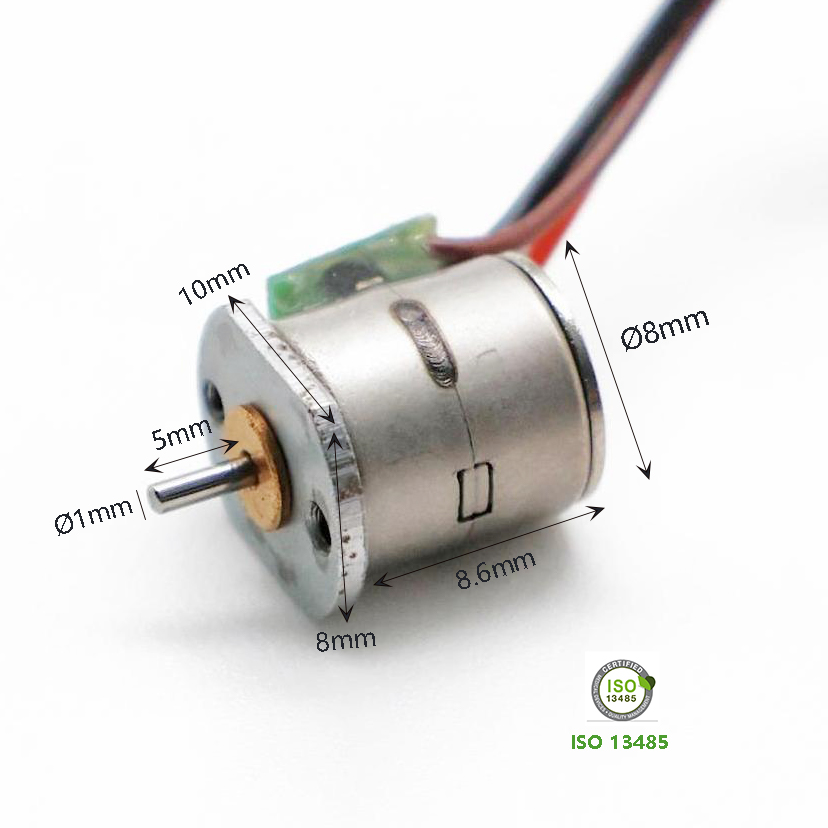

Stepper Motor Specifications

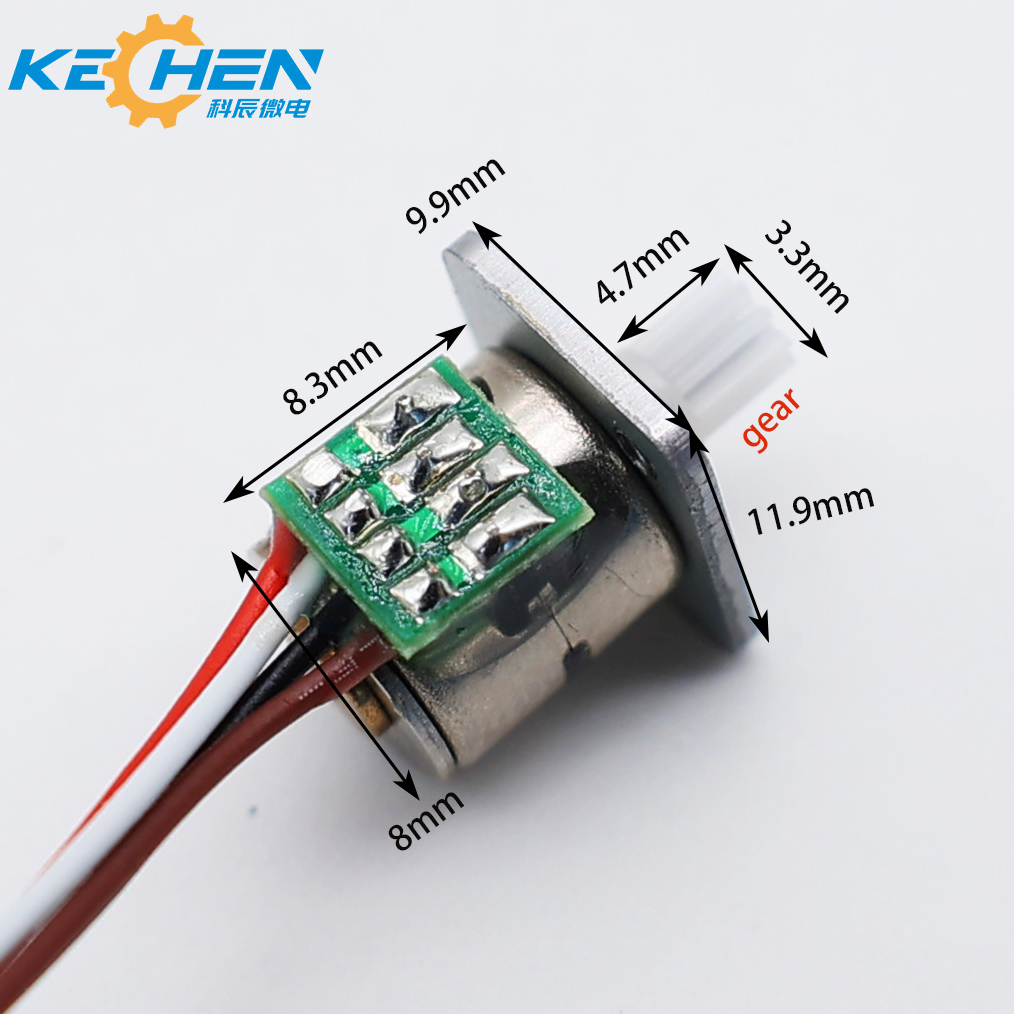

Stepper Motor Details

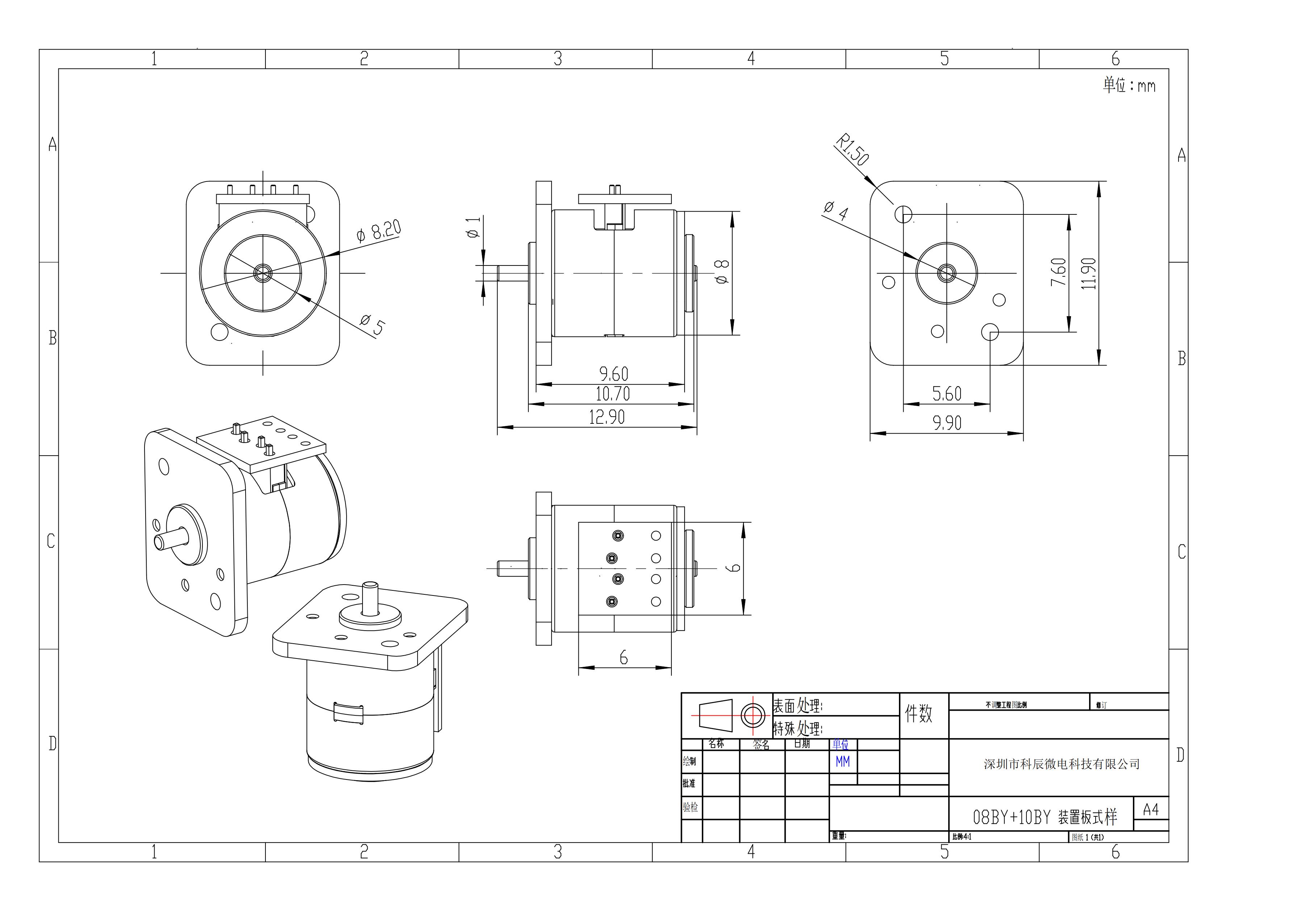

Stepper Motor Technical Drawing
Model Step angle Excitation Mode Rated Voltage Resistance Phase Current Phase Detent Torque Holding Torque Insulation resistance
degree V Ω mA gf.cm gf.cm
08BY2510-N 18 2-2 Phase 3.7 10 300 5.0 10.0 300VDC
50MΩ↑
08BY2520-N 18 2-2 Phase 3.3 20 120 5.0 8.0
08BY2540-N 18 2-2 Phase 3 40 62.5 5.0 7.0
Motor Technical Data (800PPS)
Recommend Products
Recommend Micro Motors
Motor raw materials
Premium Motor Raw Materials
Production Equipment
Advanced Production Equipment 1
Advanced Production Equipment 2
Advanced Production Equipment 3
Company Profile
Manufacturing Center Overview

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications
Product Certifications and Quality Control
Application Scenario
Micro Motor Applications
Global Market Distribution
Global Market Map
Global Supply Chain and Logistics
Frequently Asked Questions (FAQ)
What are the primary applications for these micro stepper motors?
Our micro stepper motors are extensively used in high-precision fields such as medical equipment, financial security devices, smart home appliances (like intelligent commercial locks and smart switches), automotive components, AI robotics, and outdoor smart gear.
What custom options are available for the stepper motor series?
We support customized configurations for rated voltage, resistance, current per phase, holding torque, and shaft designs to suit the specific physical and electric requirements of your applications.
What is the standard insulation resistance of these motors?
The standard insulation resistance of our micro stepper motors is 50MΩ or higher under 300V DC, ensuring high safety standards and operational stability.
What steps do you take to guarantee raw material quality?
We implement a strict raw material sourcing process, opting for high-quality magnetic materials, bearings, and wiring, all of which undergo rigorous electrical and physical property testing before reaching the production floor.
How do you ensure overall product quality control during manufacturing?
Through automated winding, high-precision assembly equipment, and comprehensive testing protocols (including resistance, voltage, torque, and insulation tests), we ensure each micro motor matches our rigorous quality standards before shipping.
