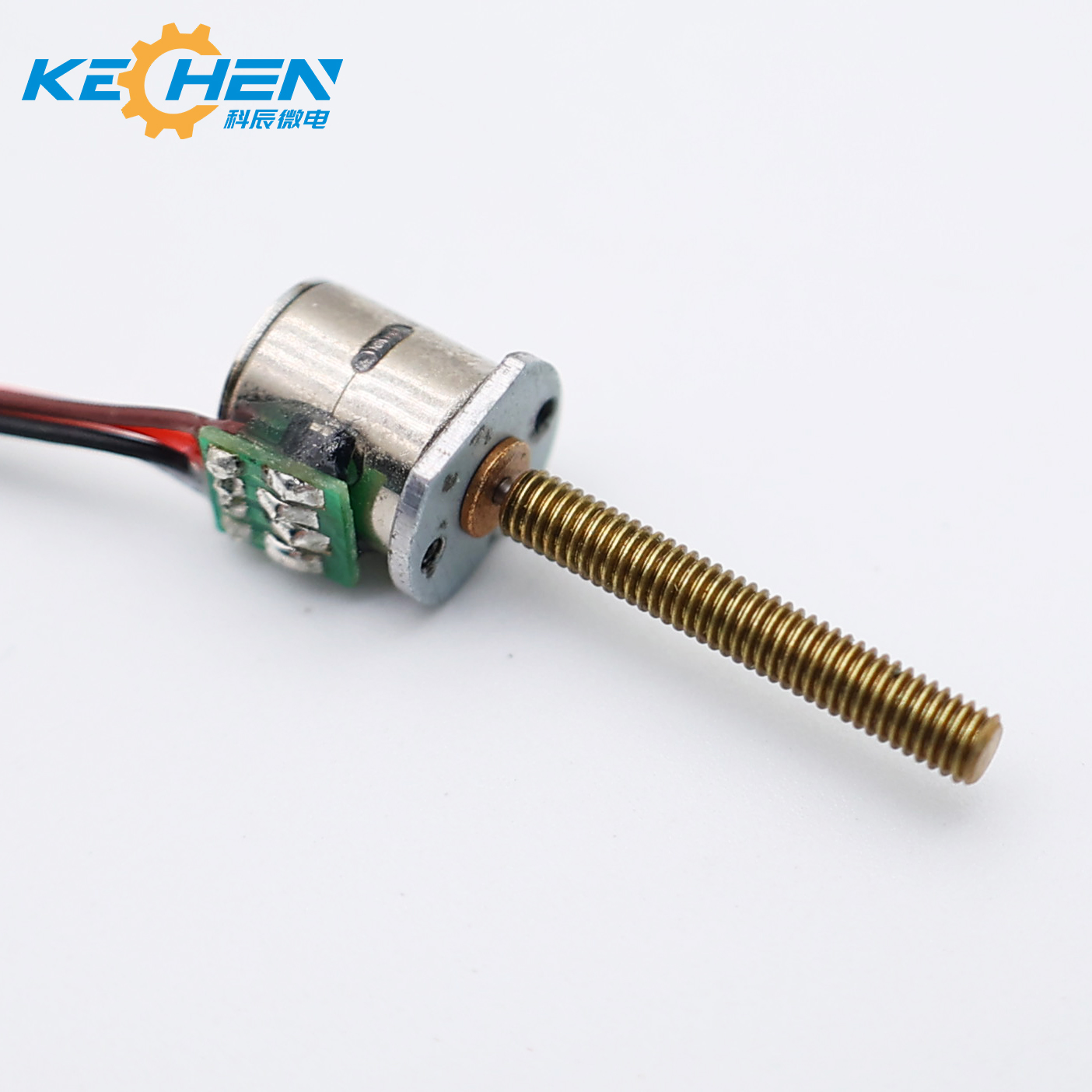

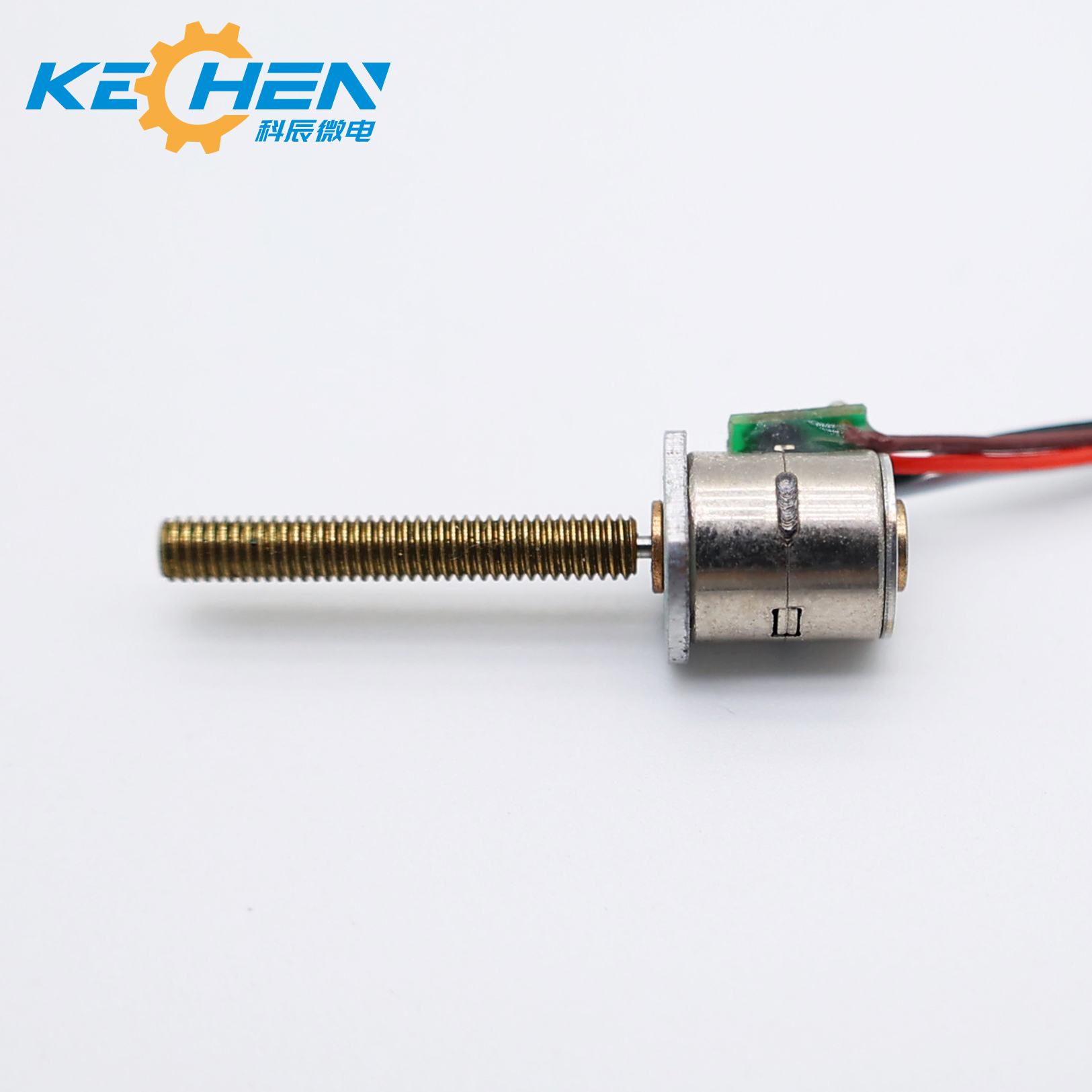

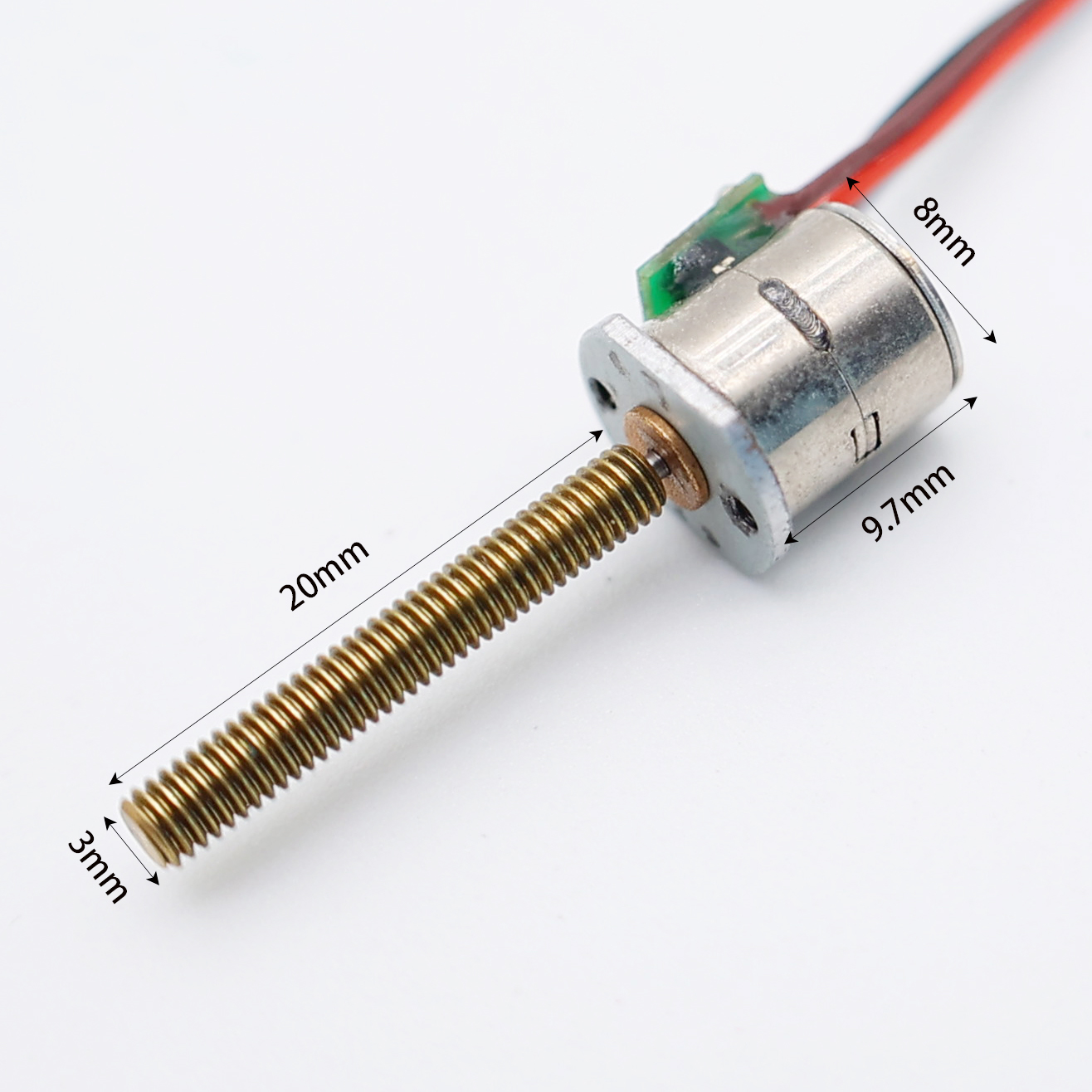

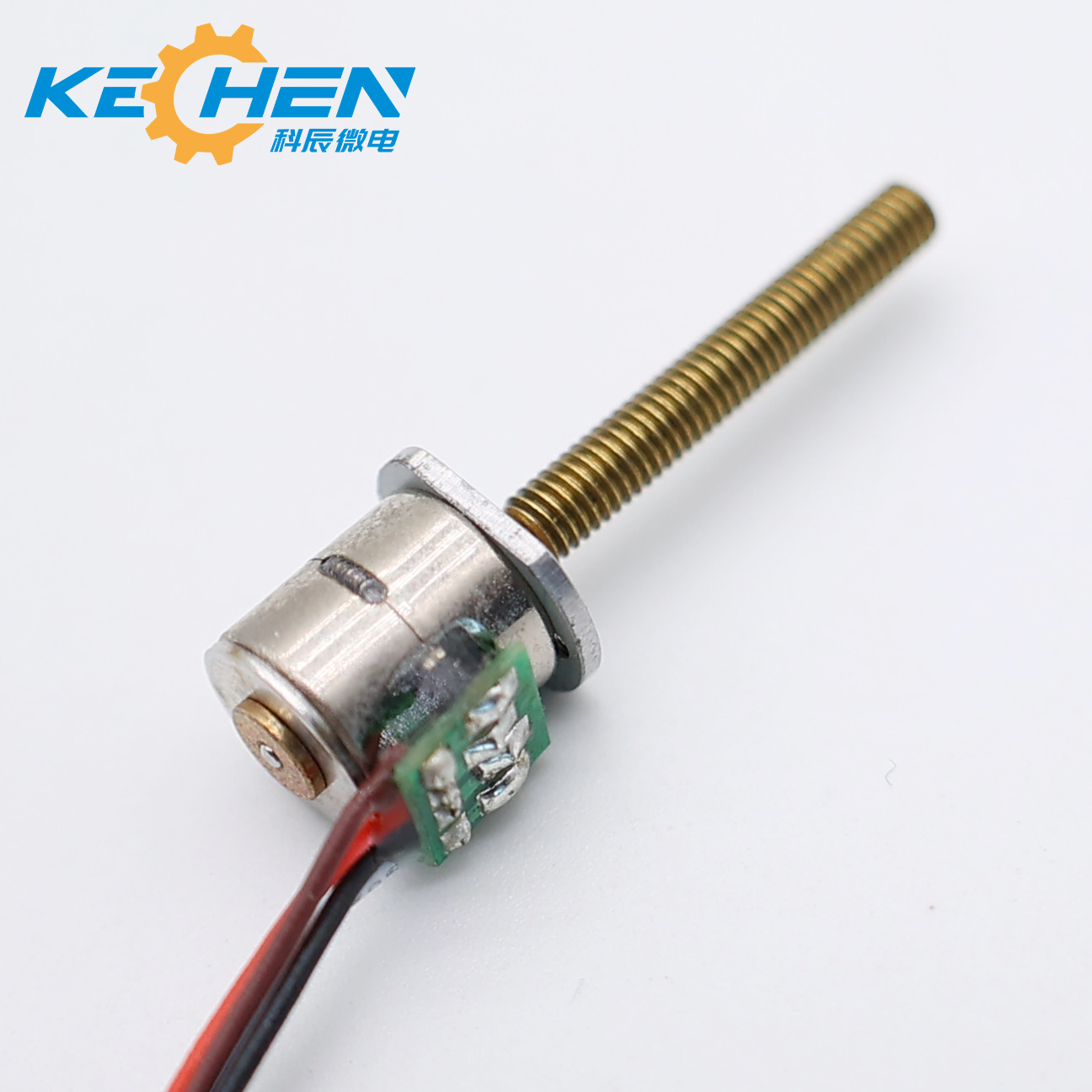

Customized 3V 3.7V 5V Stepper Motor 8mm Diameter 20mm Lead Screw Stepper Motor

Product Description

Products Description
Products Description
Model Step angle Excitation Mode Rated Voltage Resistance Phase Current Phase Detent Torque Holding Torque Insulation resistance
degree V Ω mA gf.cm gf.cm 300VDC 50MΩ↑
08BY2510-N 18 2-2 Phase 3.7 10 300 5.0 10.0 300VDC 50MΩ↑
08BY2520-N 18 2-2 Phase 3.3 20 120 5.0 8.0 300VDC 50MΩ↑
08BY2540-N 18 2-2 Phase 3 40 62.5 5.0 7.0 300VDC 50MΩ↑
Motor Technical Data(800PPS)
Recommend Products

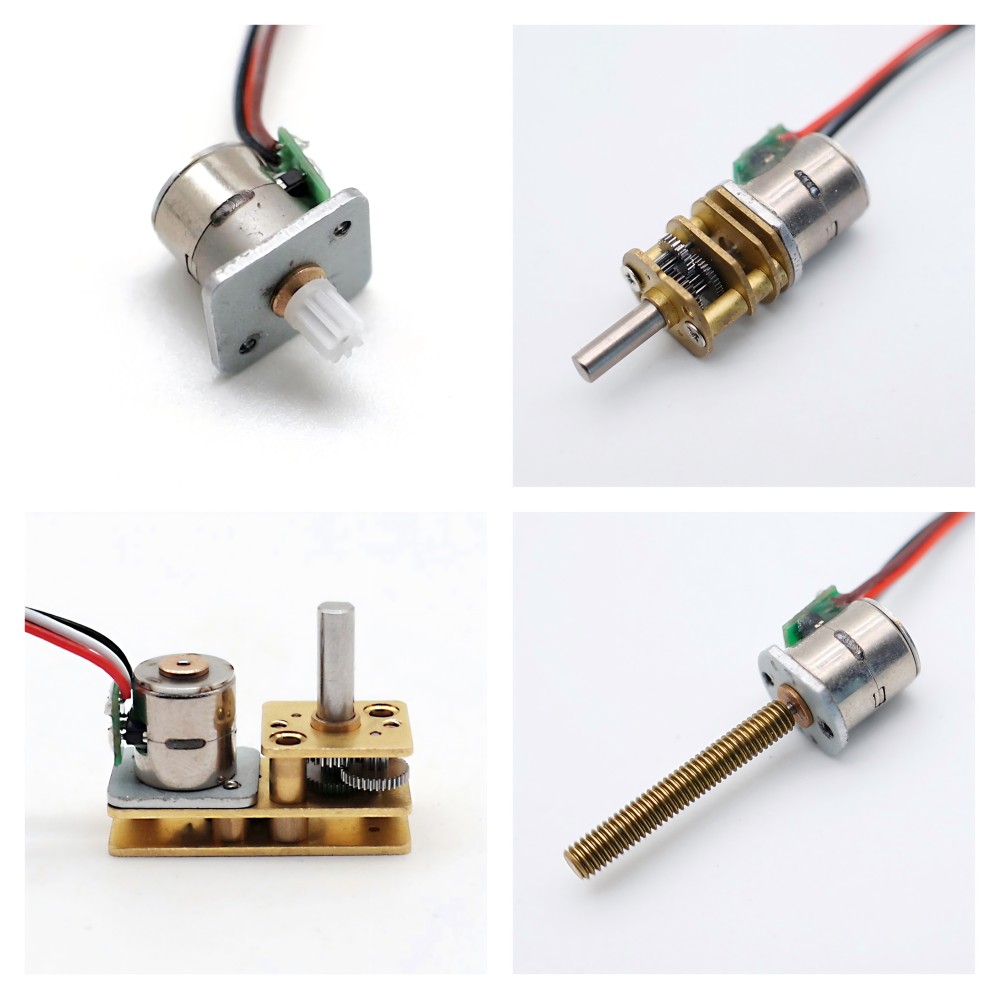

Recommend Product 1 Recommend Product 2
Motor Raw Materials
Motor raw materials
Production Equipment
Production Equipment 1 Production Equipment 2 Production Equipment 3
Manufacturer Profile
Manufacturer Facility
The manufacturer was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Certifications
Application Scenario
Application Scenario
Global Market Distribution
Global Market Map Distribution Chart
Frequently Asked Questions (FAQ)
Q What are the key technical specifications of your micro stepper motors?
Our micro stepper motors feature a step angle of 18 degrees and operate in a 2-2 phase excitation mode. Depending on the model (08BY2510-N, 08BY2520-N, or 08BY2540-N), the rated voltage ranges from 3V to 3.7V, with holding torques up to 10.0 gf.cm.
Q What applications are these micro stepper motors suitable for?
These precision motors are widely utilized in medical equipment, medical detection and analysis, financial security devices, 5G applications, automotive appliances, smart home products, commercial smart locks, robotic equipment, and electric tools.
Q What is the insulation resistance level of the motors?
The motors have a rated insulation resistance of 50MΩ or higher at 300VDC, ensuring high safety standards and stability during operation.
Q How do different models compare in resistance and current?
The 08BY2510-N model has a resistance of 10Ω and a current of 300mA. The 08BY2520-N has 20Ω resistance with 120mA current. The 08BY2540-N model is designed with 40Ω resistance and operates at 62.5mA.
Q What quality control standards and equipment are used in production?
We utilize advanced production and testing facilities to monitor performance parameters like detent torque, holding torque under 800PPS conditions, and insulation limits. All materials and final assemblies conform to strict quality guidelines shown in our certifications.
