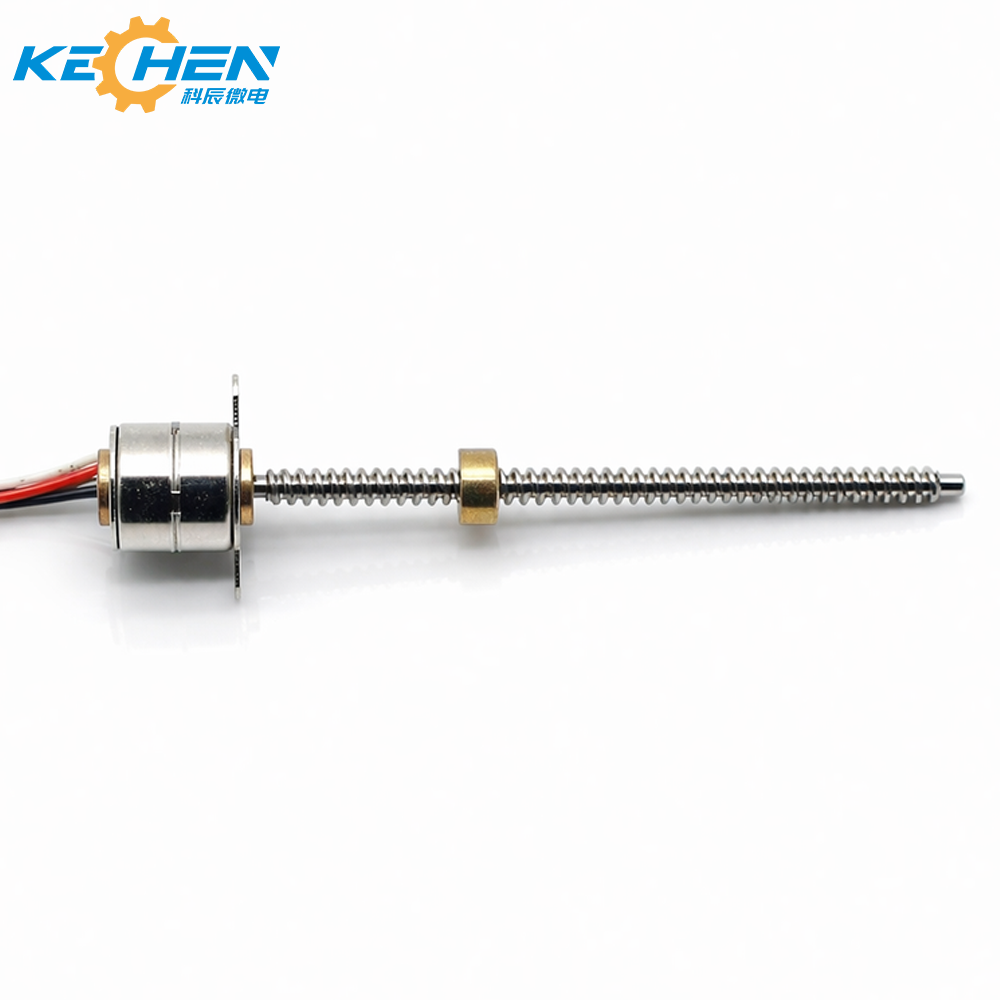

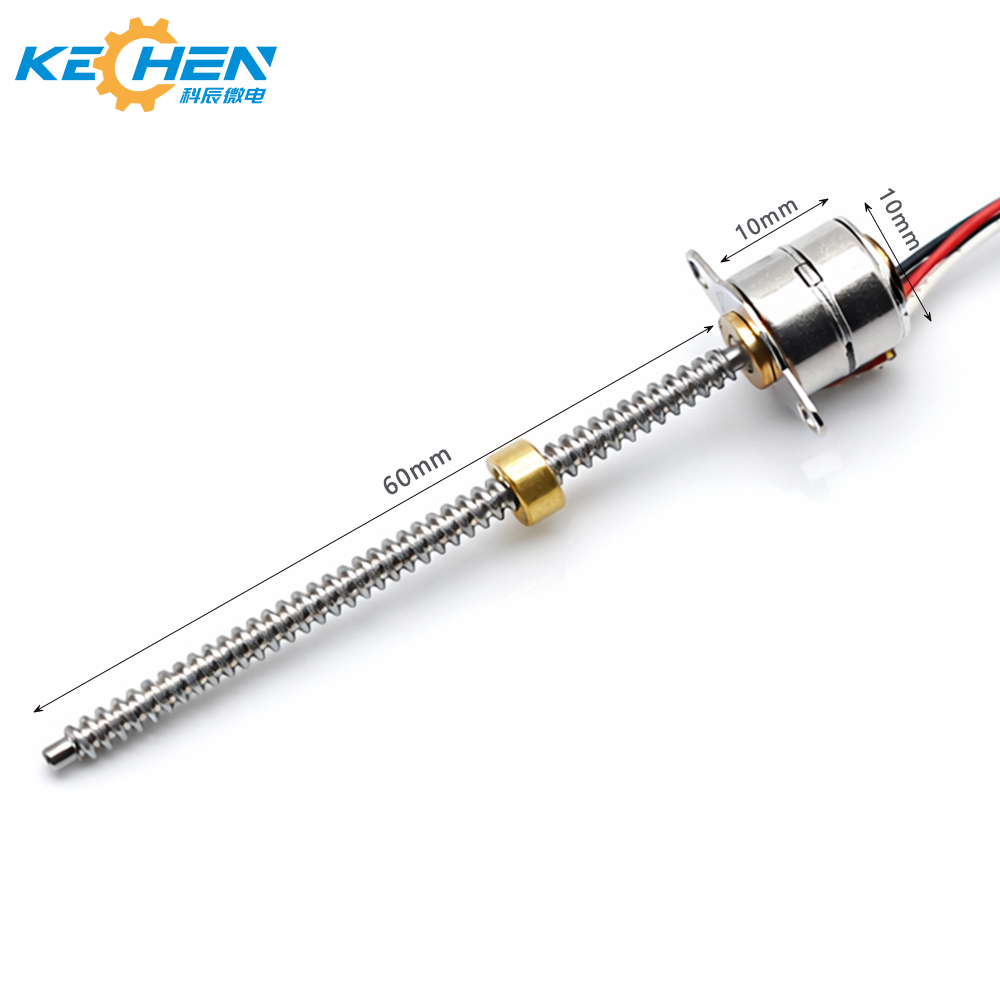

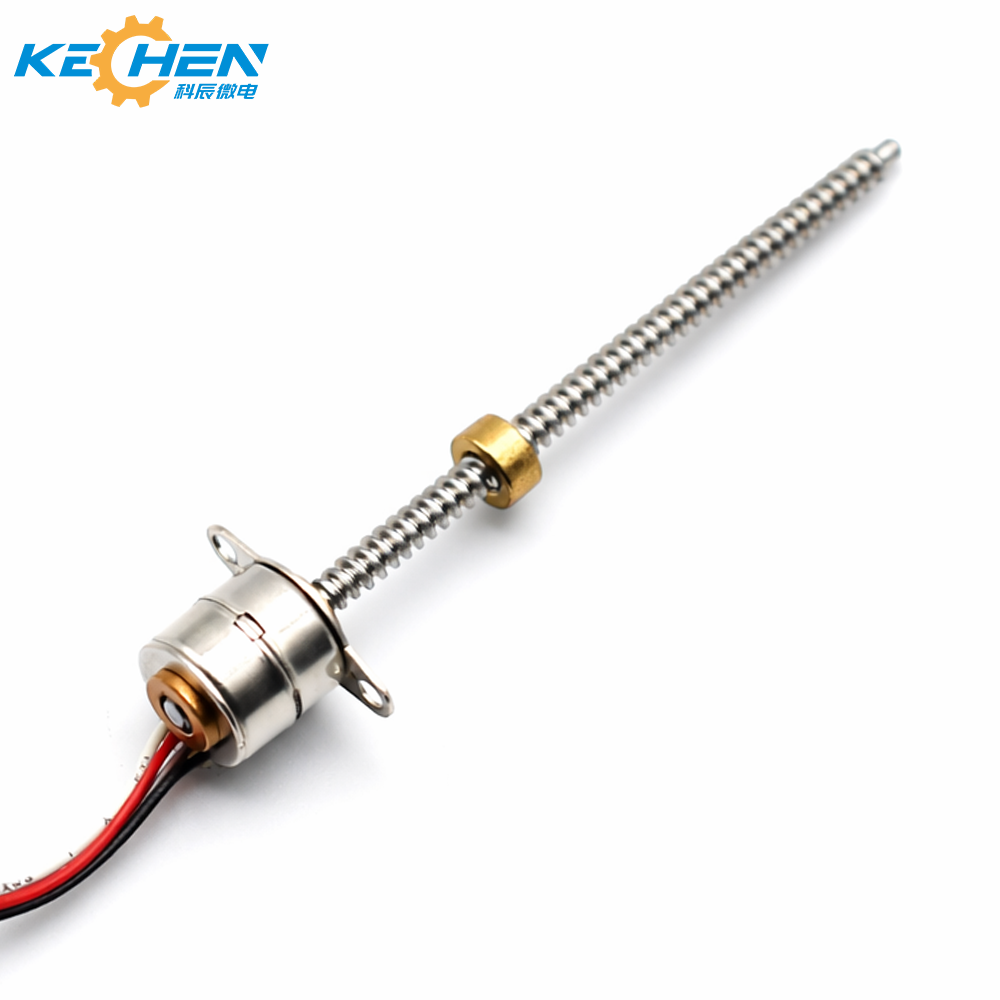

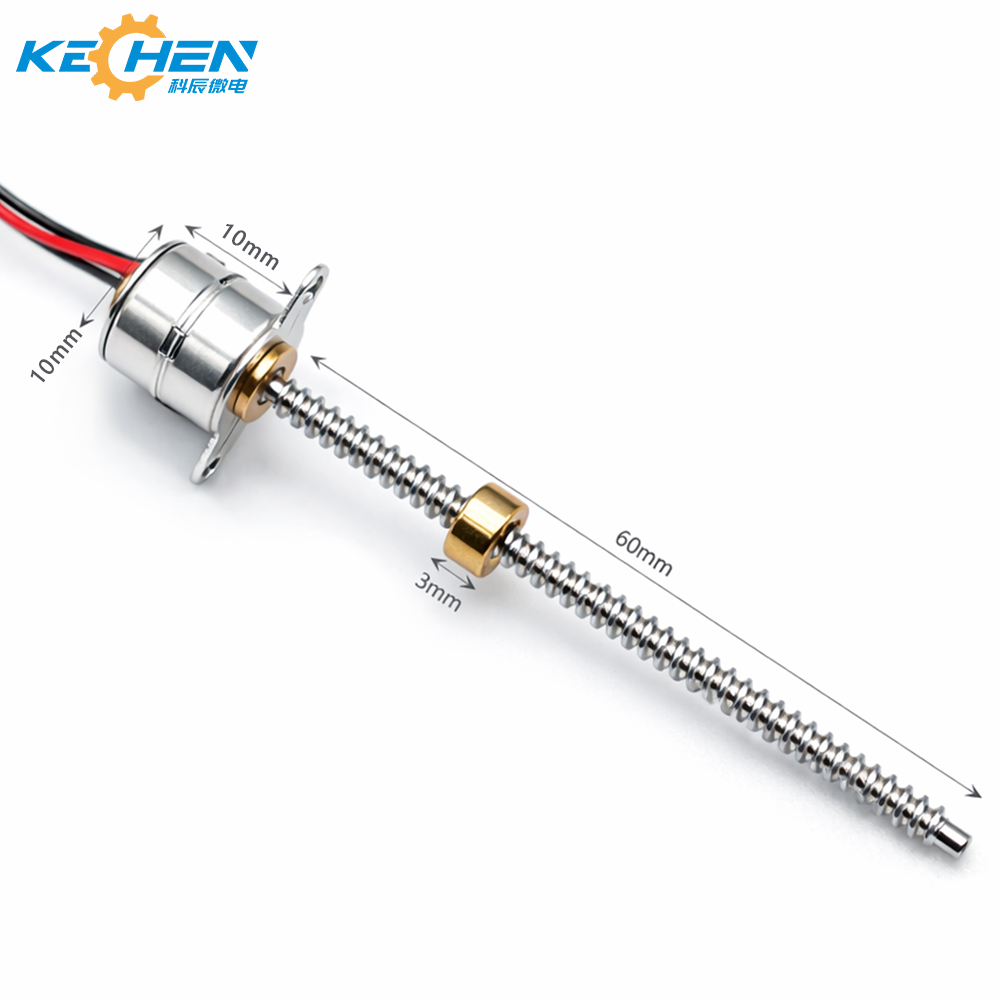

Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft
Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft
Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft
Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft
Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft
1 / 5
Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft
Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft
Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft
Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft
Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft

Customized 10mm Permanent Magnet Stepper Motor 3V 5V with 18 Degree Step Angle and Customizable Lead Screw Shaft

Send Inquiry

Product Description

Products Description

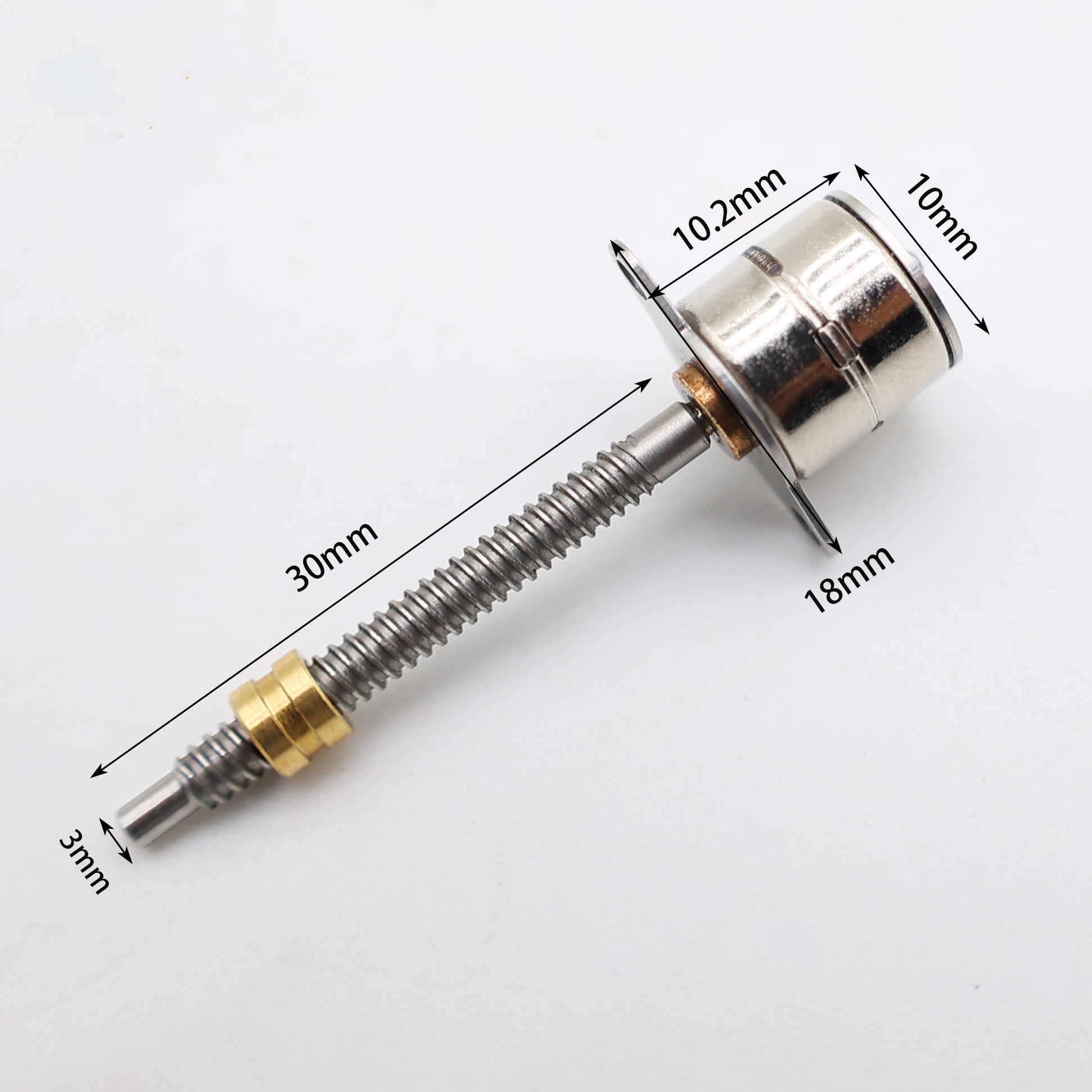

Product Description Image 1

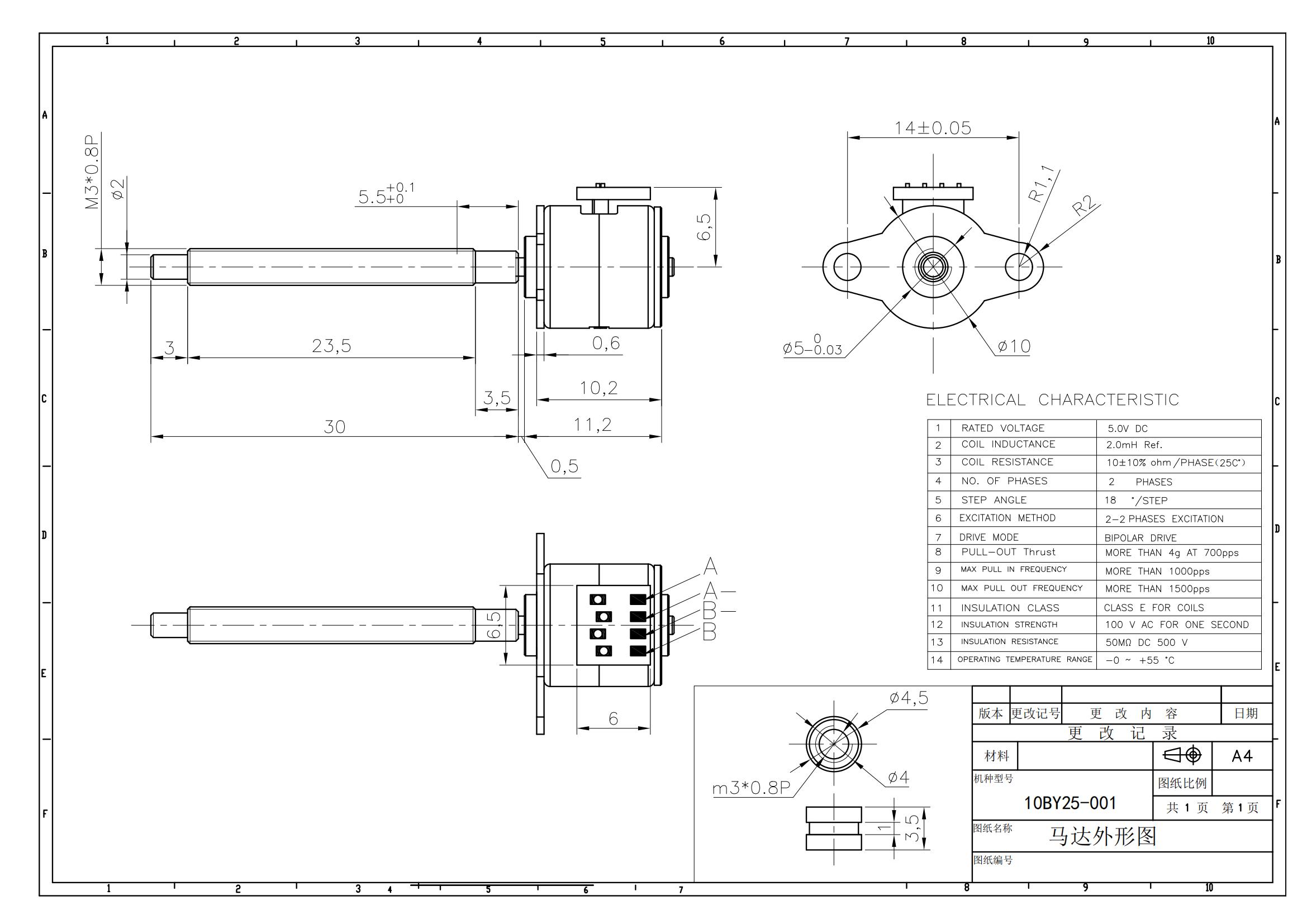

Product Description Image 2
Model Step angle Excitation Mode Rated Voltage Resistance Phase Current Phase Detent Torque Holding Torque Insulation resistance
degree V Ω mA gf.cm gf.cm
10BY2510-N 18 2-2 Phase 5.0 10 630 6.0 20.0 300VDC
50MΩ↑
10BY2520-N 18 2-2 Phase 5.0 20 310 6.0 20.0
10BY2530-N 18 2-2 Phase 5.0 40 150 6.0 18.0
Motor Technical Data (800PPS)
Recommend Products

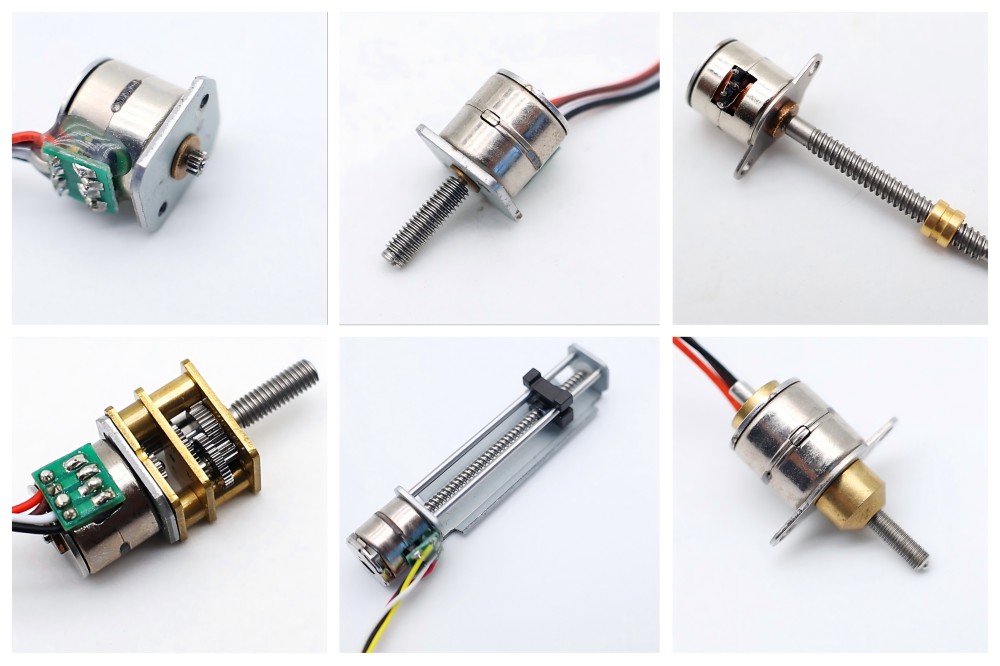

Recommend Product 1
Recommend Product 2
Motor Raw Materials
Motor Raw Materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile
Established in August 2009, the company is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Company Profile Overview
Certifications
Product Certifications
Application Scenario
Application Scenarios
Global Market Distribution
Global Market Map
Distribution Network Details
Frequently Asked Questions (FAQ)
Q1: What kinds of micro motors do you manufacture?
We specialize in a comprehensive range of micro motors, including precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Q2: What are the typical applications for your micro motors?
Our products are widely utilized across various high-tech fields, such as medical equipment, diagnostic tools, financial security systems, 5G applications, automotive appliances, smart home systems, commercial smart locks, intelligent robots, power tools, and beauty apparatuses.
Q3: What is the standard step angle and excitation mode for the 10BY stepper motor series?
The 10BY series stepper motors feature a step angle of 18 degrees and utilize a 2-2 Phase excitation mode.
Q4: What are the electrical ratings for the 10BY25 series motors?
They are rated at a voltage of 5.0V, with current ratings ranging from 150mA to 630mA, and coil resistances of 10Ω, 20Ω, or 40Ω depending on the specific model.
Q5: What is the insulation resistance performance of these motors?
The motors support a minimum insulation resistance of 50MΩ at a test voltage of 300VDC, ensuring high reliability and safe operation.
Q6: Are the motors suitable for energy-conscious integrations?
Yes, our micro motors are developed to optimize efficiency, lower energy consumption, simplify final production workflows, and support elevated device performance.
