Customized GM13-050SH Brush DC Permanent Magnet Miniature Metal Gear Speed Reduction Motor 3V/6V/12V/24V Home Appliance Home

Product Description

Products Description
GM13-050 DC Spur Gear Motor

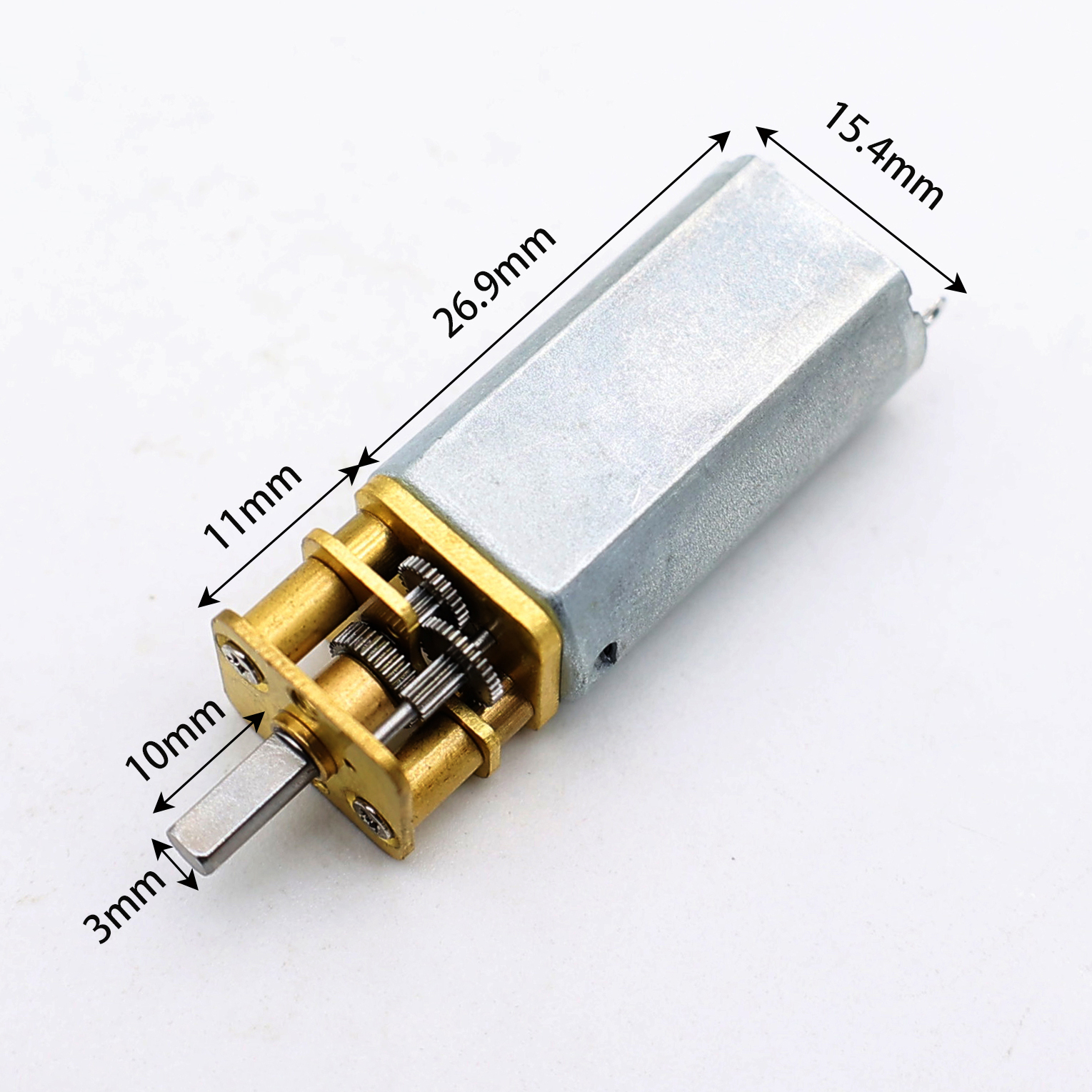

GM13-050 13mm DC Spur Gear Motor

  • Model: GM13-050
  • Gearbox: 13 mm metal spur gear reducer
  • Rated Voltage: DC 3V, 4.5V, 5V, 6V, 9V, 12V, 24V
  • Rated Torque: Max. 2.3Kgf-cm
  • Size: Φ13 * L TBD
  • Shaft: Φ3mm D-cut 0.5mm, M3, M4, custom
  • Encoder: magnetic encoder available
  • Commutation: Carbon brush/Graphite brush/Metal brush
  • Construction: micro Permanent Magnet iron cored dc electric motor
  • MOQ: 500 pcs
Technical Specifications and Dimensions
Gearbox with motor Data: GM13-050SH-11155-3V
Reduction Ratio 6 20 52 85 118 170 215 250 297
Length (mm) 11 11 11 11 11 11 11 11 11
No-load speed (rpm) 675 203 78 48 34 24 19 16 14
Rated speed (rpm) 517 155 60 36 26 18 14 12 10
Rated torque (kg.cm) 0.02 0.07 0.16 0.26 0.30 0.43 0.54 0.63 0.74
Stalling Torque (kg.cm) 0.10 0.30 0.67 1.09 1.26 1.81 2.29 2.66 3.17
Gearbox with motor Data: GM13-050SH-08285-24V
Reduction Ratio 52 85 118 170 215 250 297 360 1000
Length (mm) 11 11 11 11 11 11 11 11 13.2
No-load speed (rpm) 352 215 155 108 85 73 62 51 18
Rated speed (rpm) 327 200 144 100 79 68 57 47 17
Rated torque (kg.cm) 0.16 0.26 0.30 0.43 0.54 0.63 0.74 0.90 1.50
Stalling Torque (kg.cm) 2.20 3.59 4.15 5.98 7.57 8.80 10.45 12.67 21.12
Recommend Products
Recommended Motor Product 1
Recommended Motor Product 2
Recommended Motor Product 3
Motor Raw Materials
High Quality Motor Raw Materials
Production Equipment
Production Facility 1
Production Facility 2
Production Facility 3
Manufacturer Profile
Manufacturing Factory Environment
Our enterprise was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Our micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grids, smart homes, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since our establishment, we have adhered to the concept of a "people-oriented, pioneering, and innovative spirit". After years of rapid development, we have a group of young and pragmatic, professional, and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Product Quality Certifications
Application Scenario
Motor Application Scenarios
Global Market Distribution
Global Market Map
Global Operations
Frequently Asked Questions

What is the voltage range available for the GM13-050 gear motor?

The GM13-050 DC Spur Gear Motor operates across a range of rated voltages including DC 3V, 4.5V, 5V, 6V, 9V, 12V, and 24V, depending on your application requirements.

Can the shaft specifications be customized?

Yes, customization options are available for the motor shaft. Standard configurations include a Φ3mm D-cut 0.5mm, M3, and M4 threads, but custom designs can be requested to match your specifications.

What is the Minimum Order Quantity (MOQ) for this product?

The standard Minimum Order Quantity (MOQ) for the GM13-050 micro gear motor is 500 pieces per order.

What type of commutation system does the motor use?

The motor can be configured with a Carbon brush, Graphite brush, or Metal brush commutation depending on the performance life cycle required for your project.

Are encoders available for the GM13-050 gear motor?

Yes, a magnetic encoder is available as an optional add-on for projects that require precise speed and position control.

What are the primary applications of this micro DC gear motor?

This motor is widely used in medical equipment, smart home appliances, intelligent commercial locks, AI robots, outdoor smart gear, and beauty tools, owing to its compact size and high torque output.
