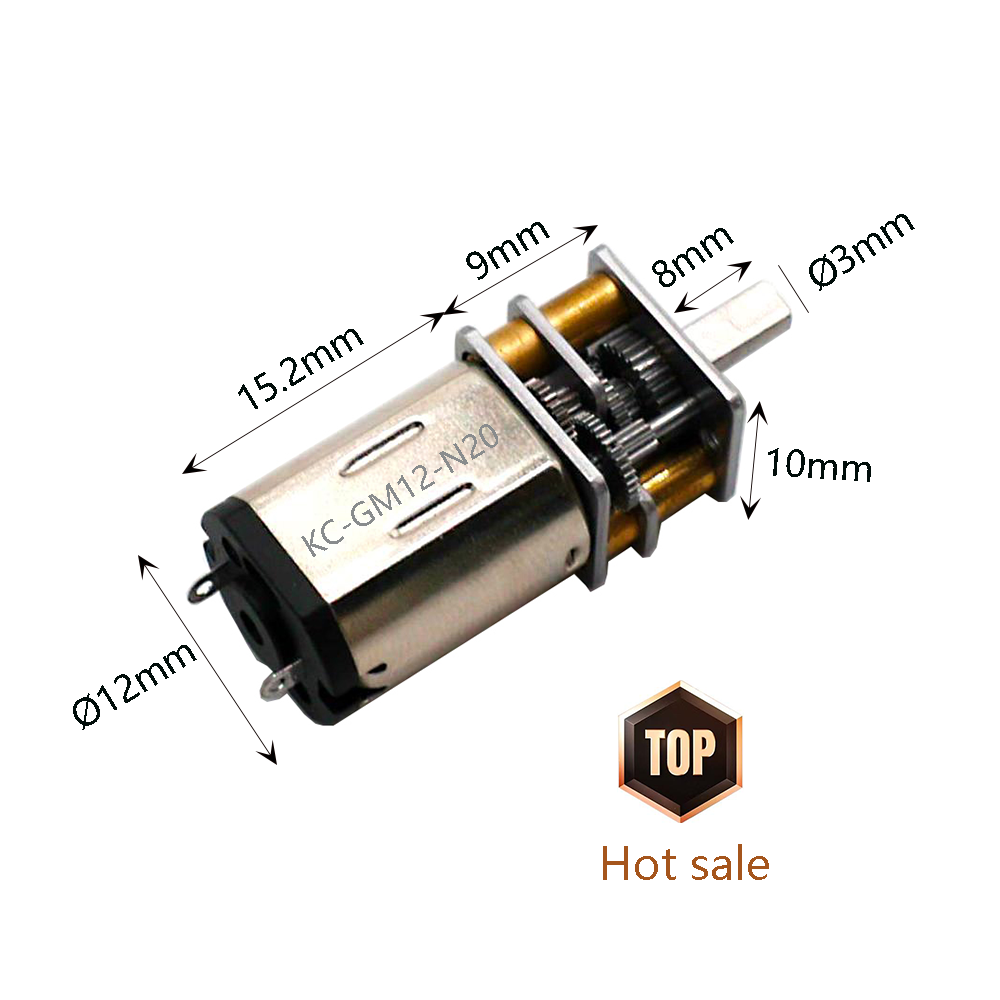

Shaft: Concentric driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom
Commutation: Carbon brush / Graphite brush
Construction: Permanent Magnet iron cored motor
Encoder: Magnetic encoder 3ppr / 7ppr
MOQ: 500 pcs
Gearbox with motor Data: GM12-N20-09170-3.0V
Reduction
10
30
50
100
150
210
250
298
330
Length(mm)
9
9
9
9
9
9
9
9
9
No-load speed(rpm)
960
320
192
96
64
46
38
32
29
Rated speed(rpm)
730
243
146
73
49
35
29
24
22
Rated torque(kg.cm)
0.02
0.04
0.06
0.12
0.15
0.21
0.25
0.30
0.33
Stalling Torque (kg.cm)
0.07
0.18
0.25
0.50
0.63
0.88
1.04
1.24
1.38
Gearbox with motor Data: GM12-N20-07310-12.0V
Reduction
50
100
150
210
250
298
330
380
1000
Length(mm)
9
9
9
9
9
9
9
9
12
No-load speed(rpm)
460
230
153
110
92
77
70
61
23
Rated speed(rpm)
410
205
137
98
82
69
62
54
21
Rated torque(kg.cm)
0.06
0.12
0.15
0.21
0.25
0.30
0.33
0.38
0.60
Stalling Torque (kg.cm)
0.55
1.10
1.38
1.93
2.30
2.74
3.04
3.50
5.52
Recommend Products
Motor raw materials
Production Equipment
Company Profile
The enterprise was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Application Scenario
Global Market Distribution
Frequently Asked Questions
What are the primary features of the GM12-N20VA-ED spur gear motor?
The motor is built with a durable metal spur gear reducer, supports a wide range of rated voltages (DC 1.5V to 24V), delivers a maximum rated torque of 1.5kgf-cm, and features a compact Φ12mm size with an optional magnetic encoder.
Can the output shaft of this 12mm DC motor be customized?
Yes, we support extensive shaft customizations, including concentric driveshafts, Φ3mm D-cut (0.5mm), O-cut, M3/M4 threaded shafts, and other bespoke configurations as per your project requirements.
What industries commonly utilize these micro gear motors?
These motors are widely integrated into medical devices, financial security equipment, smart home appliances, intelligent commercial locks, robotic systems, electric tools, and AI devices.
What is the Minimum Order Quantity (MOQ) for this model?
The standard minimum order quantity (MOQ) for the GM12-N20VA-ED spur gear DC motor is 500 pieces.
Does the motor support position and speed feedback?
Yes, the motor can be equipped with an integrated magnetic encoder offering 3ppr or 7ppr options to provide highly accurate speed and position control feedback.
What commutation options are available for the GM12 series?
We offer both high-durability Carbon brushes and Graphite brushes to suit different operational life cycles and performance requirements.
