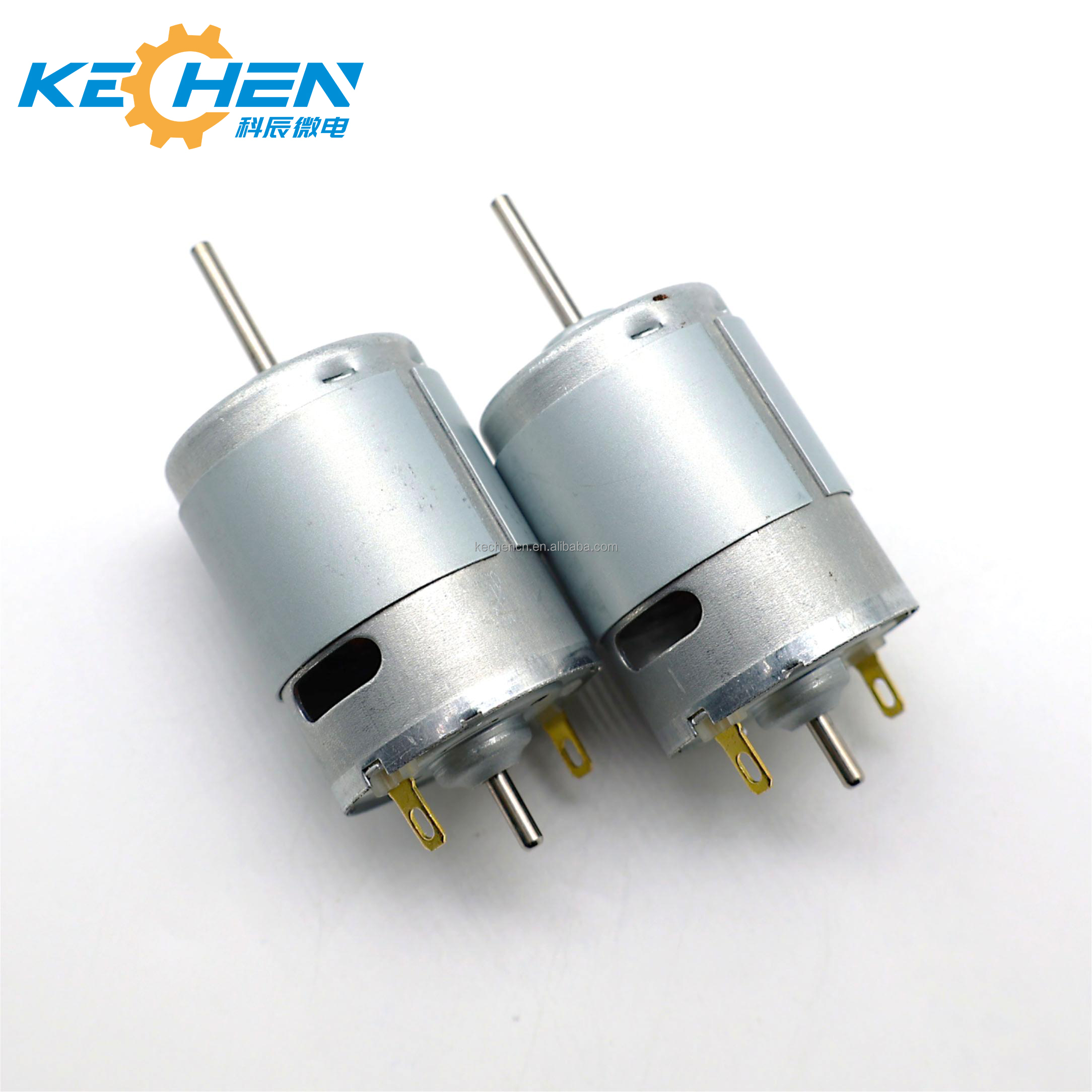

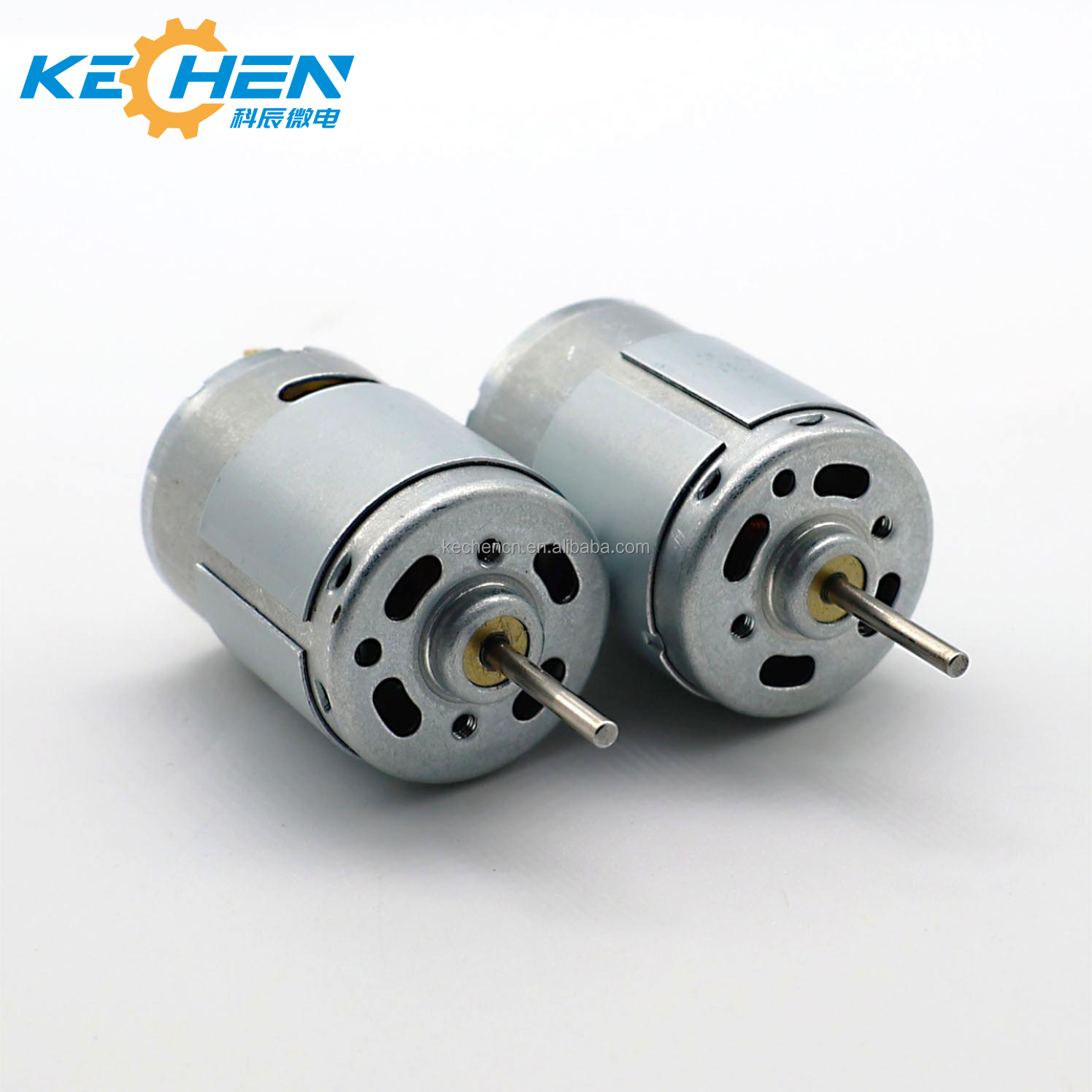

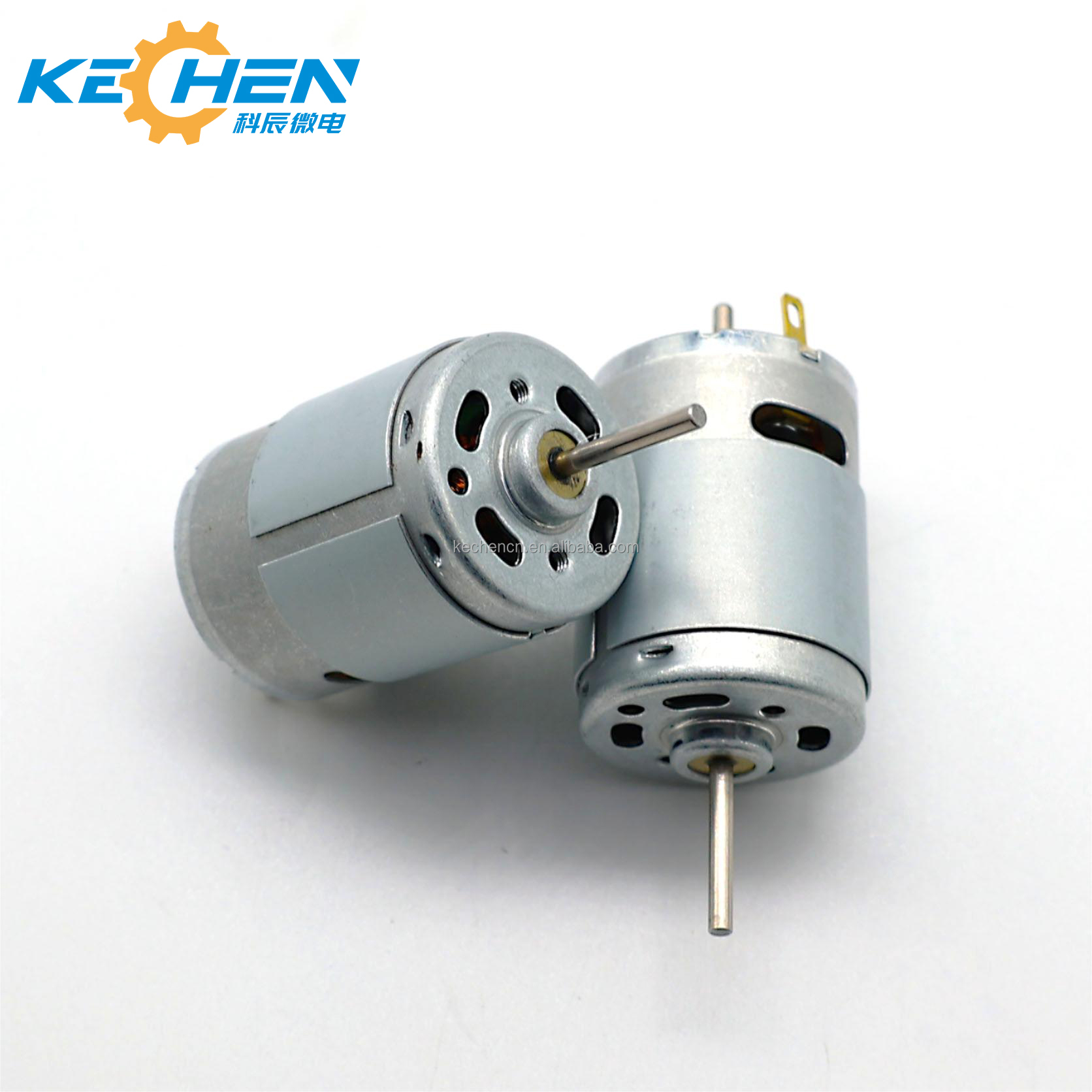

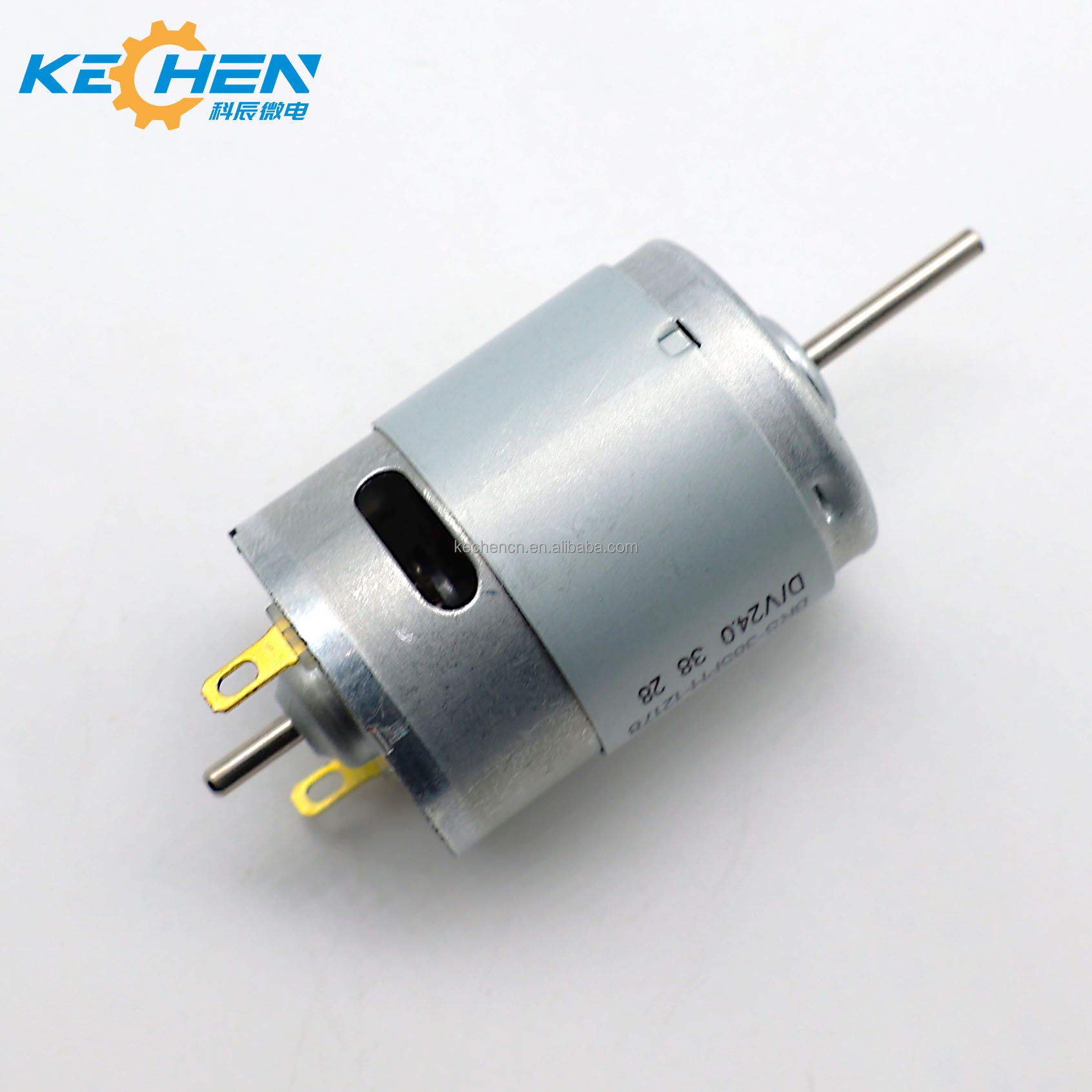

24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use
24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use
24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use
24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use
24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use
1 / 5
24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use
24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use
24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use
24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use
24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use

24V 0.1Nm High Speed High Torque Brush DC Motor 20000rpm with Permanent Magnet Construction for Home Appliance & Smart Home Use

Send Inquiry

Product Description

Products Description
385SH 12v Dc Motor

385SH 12v Dc Motor

  • Model Number: KC-385SH, KC-385SA, KC-385PA, KC-385PH

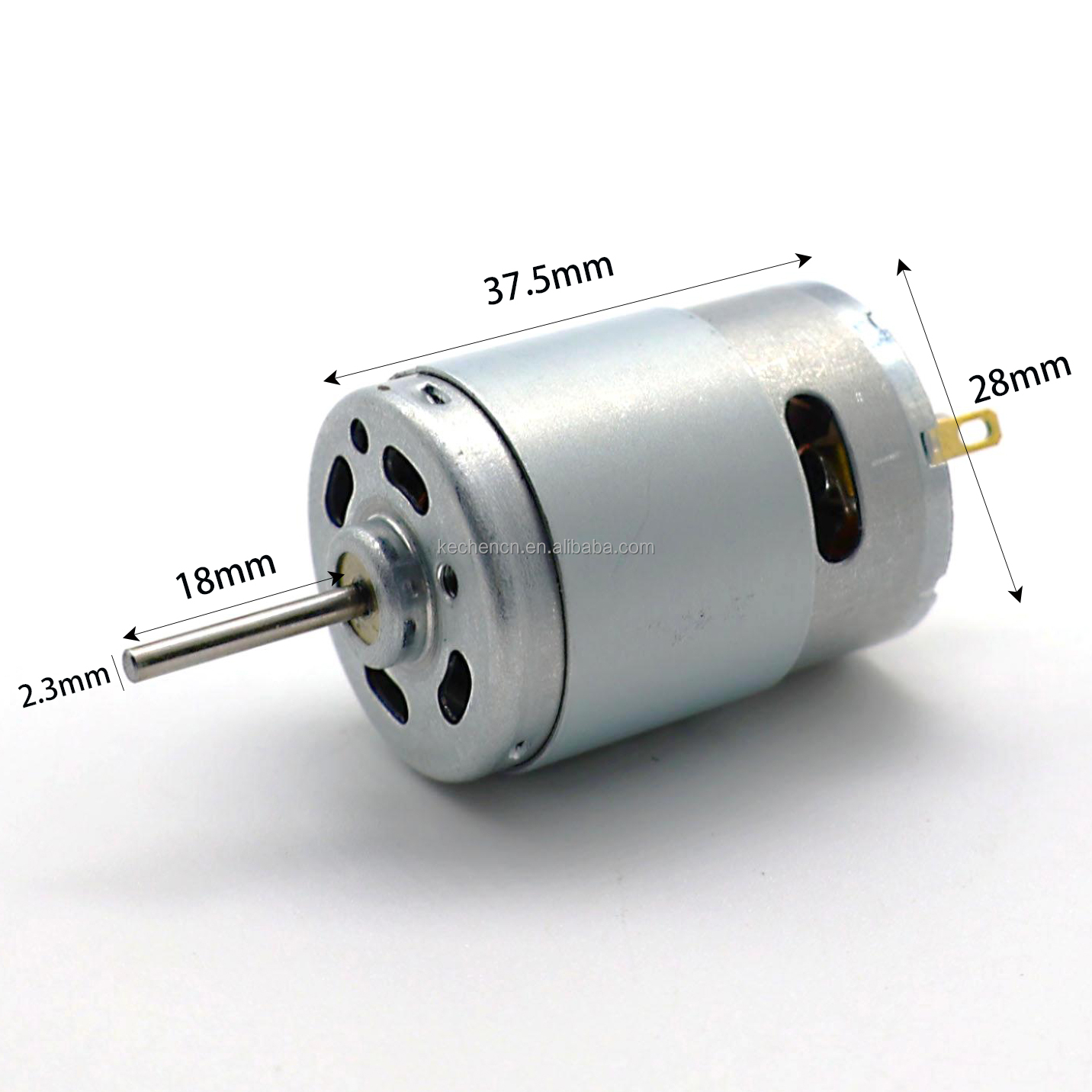

  • Shell Stator Size : Φ27.7* L 37.8 mm (Φ 1.09 inch * 1.488 inch)
  • Shaft : Φ2.3mm (0.09 inch), D shape, etc.
  • Shaft length free customization
  • Rated Output Power: up to 40W
  • Rated Voltage: DC 1.5V - 24V
  • Rated Torque: up to 140 gf-cm (13.72 mN-m)
  • Construction: Permanent Magnet
  • Commutation: Metal brush
  • Clockwise/counter-clockwise rotation (CW & CCW)

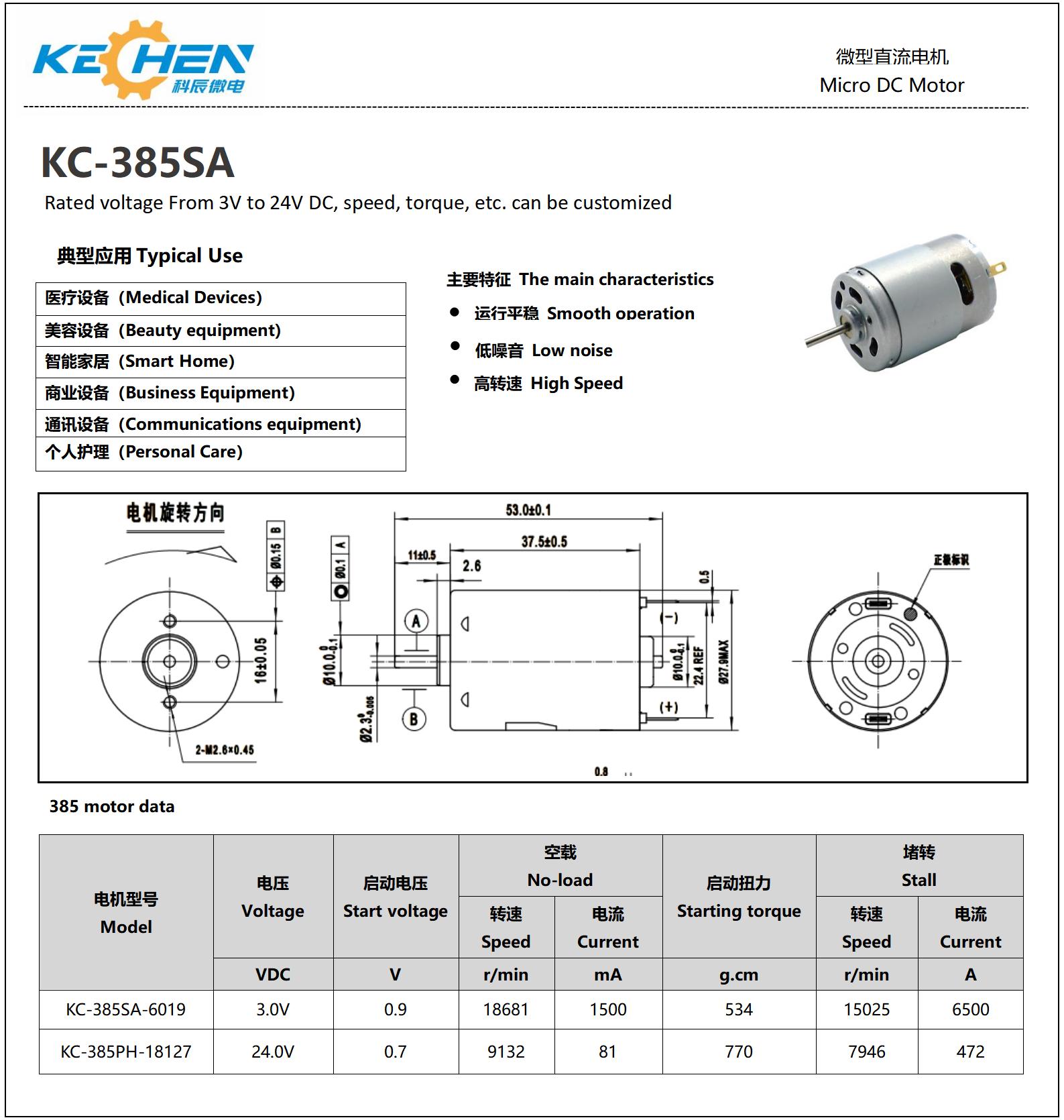

DC Motor Specs Sheet
Recommend Products
Recommend Product 1 Recommend Product 2
Motor raw materials
Motor raw materials
Production Equipment
Equipment 1 Equipment 2 Equipment 3
Manufacturing Facility Profile
Manufacturing Plant
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc.
Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Certifications
Application Scenario
Application Scenarios Diagram
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map Market Distribution Graphic
Frequently Asked Questions (FAQ)
What are the main technical parameters of the 385SH DC motor?
The motor has a shell stator size of Φ27.7 * L 37.8 mm, supports a rated voltage range of DC 1.5V to 24V, and provides a rated output power up to 40W with a rated torque up to 140 gf-cm.
Can the motor shaft design be customized?
Yes, we support free customization of the shaft length and configurations such as D-shape or other custom dimensions to suit your specific requirements.
What types of motor configurations do you specialize in?
Our technical capabilities cover a wide range of precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Which industries commonly utilize these micro motors?
These motors are widely integrated into medical equipment, business machines, smart home appliances, electric powered tools, food & beverage machinery, and robotics applications.
Do the motors support bidirectional rotation?
Yes, these motors are designed for both clockwise and counter-clockwise rotation (CW & CCW) to accommodate different drive and mechanical requirements.
