Company Profile
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
These micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Backed by a professional and efficient work team, advanced production facilities, efficient management, excellent quality, and high-quality services, the enterprise continuously meets the needs of customers by improving product levels, reducing energy consumption, facilitating production, and improving efficiency.
Frequently Asked Questions (FAQ)
Q1: What are the primary specifications of the BL3657 Brushless DC Gear Motor?

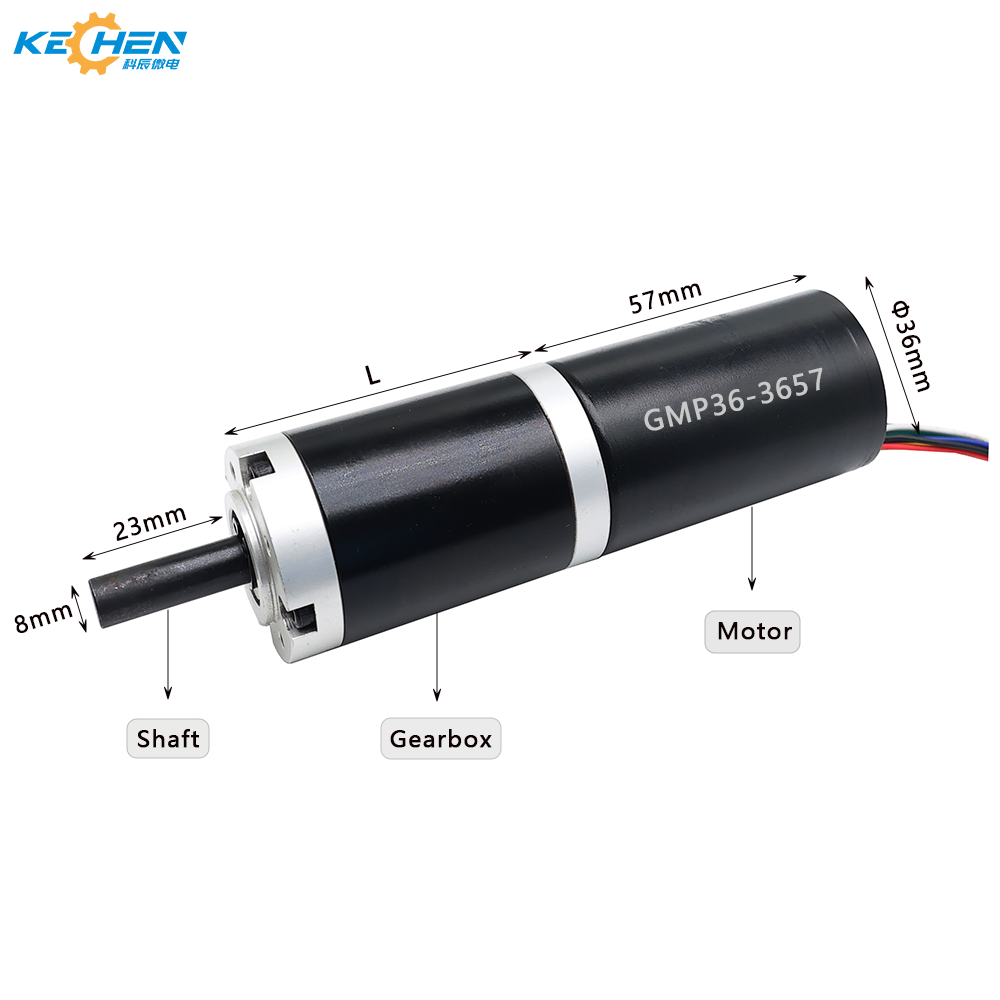

The BL3657 motor features an outer diameter of 36 mm, motor length of 57 mm (without gearbox), and operates on a rated voltage range of 3 V to 24 V. Under 12 V, it delivers a rated speed of 5,000 rpm and output power of 17 W.
Q2: What gearbox types and reduction ratios are available for this motor?
It uses a high-durability planetary or metal planetary gearhead. The available gear reduction options include ratios of 4, 5, 14, 19, 27, 51, 71, 100, 139, 189, 369, and more to suit varied applications.
Q3: In which applications are these micro brushless DC gear motors commonly used?
These motors are widely integrated into medical equipment, 5G applications, automotive appliances, smart home devices, intelligent robotics, outdoor gear, commercial smart locks, power tools, and beauty equipment.
Q4: What is the stall torque and stall current of the BL3657 motor?
At a typical 12 V configuration, the motor (without gearbox) features a stall torque of approximately 2260 gf·cm (≈0.222 N·m) and a stall current of 12 A.
Q5: What is the typical shaft diameter and shape?
The standard output shaft has a diameter of 8 mm and is commonly manufactured in a D-cut or flat configuration to ensure secure coupling and torque transmission.
Q6: What other types of precision motors are available?
The available precision range includes various DC motors, stepper motors, reduction motors, planetary reduction motors, and advanced brushless motors tailored for intelligent automation systems.
