TT Motor High Torque DC Gear Motor GM1024-N20VA 12V Smart Home Cosmetic Instrument Home Appliance Fan Boat Plastic

Product Description

Products Description

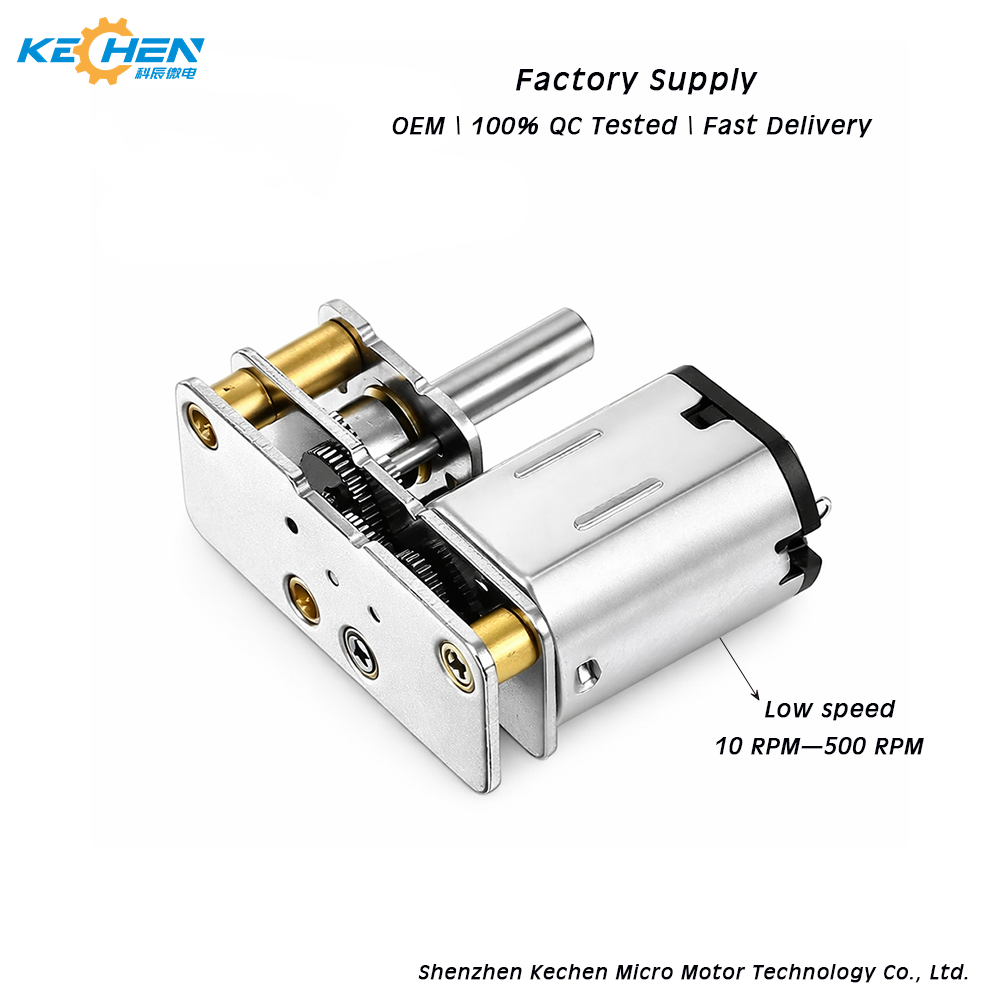

⚙️ GM1024-N20VA Spur Gear DC Motor
  • Micro dc motor N20VA assembled with 24mm metal spur gearbox
  • Model: GM1024-N20 micro metal gearmotor
  • Gearbox: 24 mm metal spur gear reducer
  • Rated Voltage: DC 3V, 4.5V, 5V, 6V, 9V, 12V, 24V
  • Rated Torque: Max. 1.8Kgf-cm
  • Size: Φ24 * L TBD
  • Square Gearbox Size: 12mm*10mm
  • Shaft: Φ3mm D-cut 0.5mm, M3, M4, custom
  • Encoder: Magnetic encoder available
  • Commutation: Carbon brush / Graphite brush / Metal brush
  • Construction: Micro Permanent Magnet iron cored dc electric motor
  • MOQ: 500 pcs

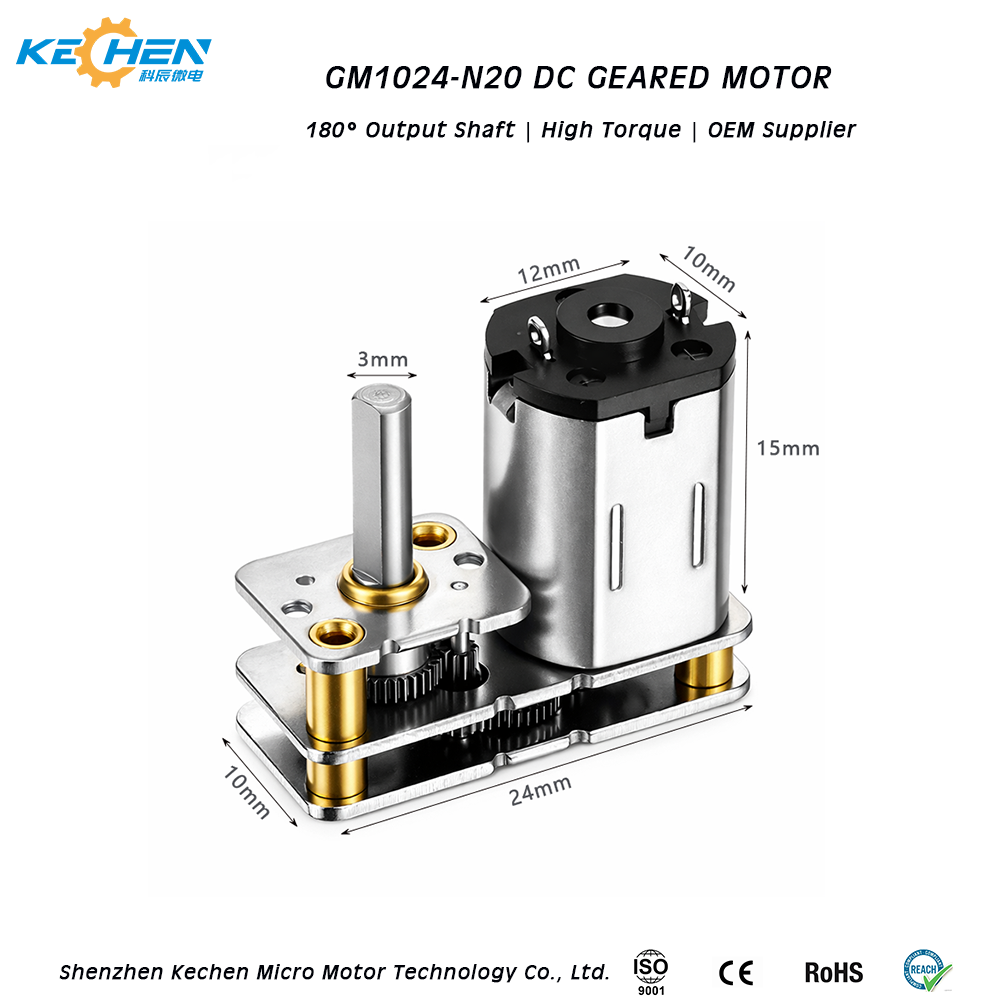

GM1024-N20VA Spur Gear DC Motor Layout

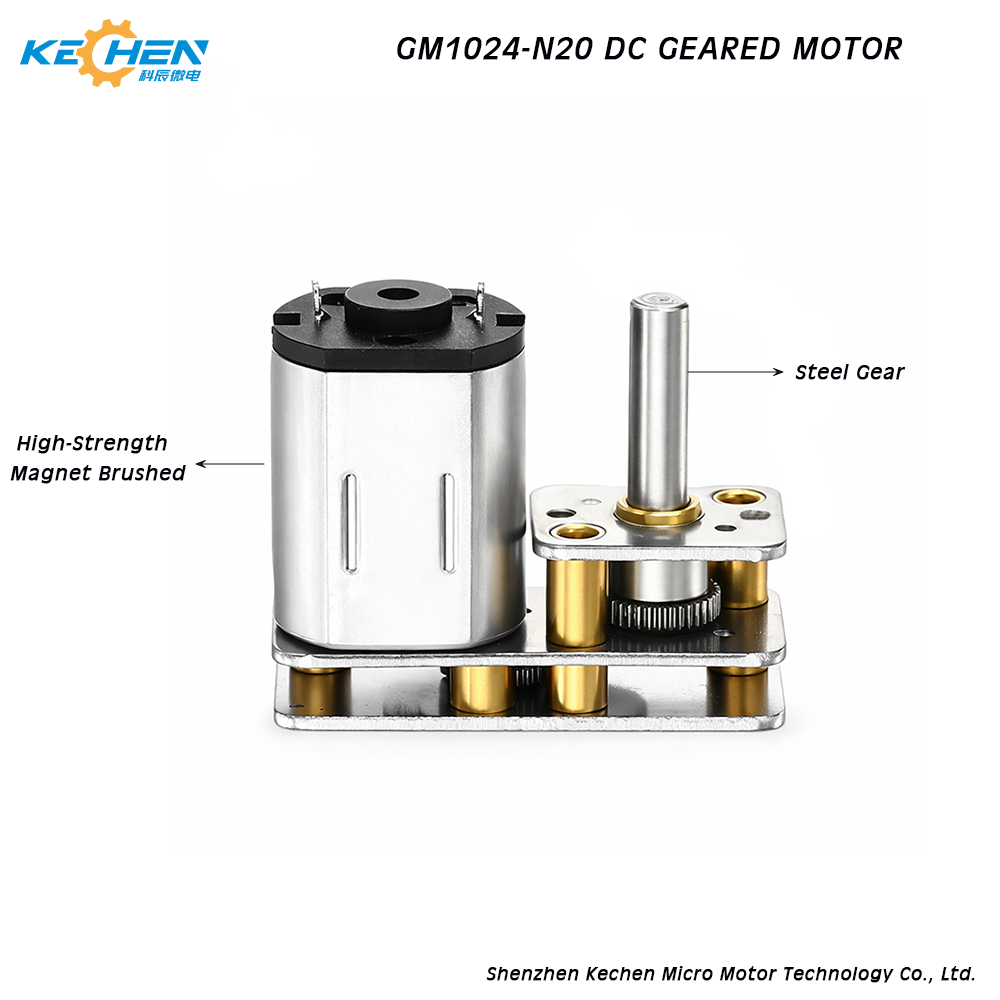

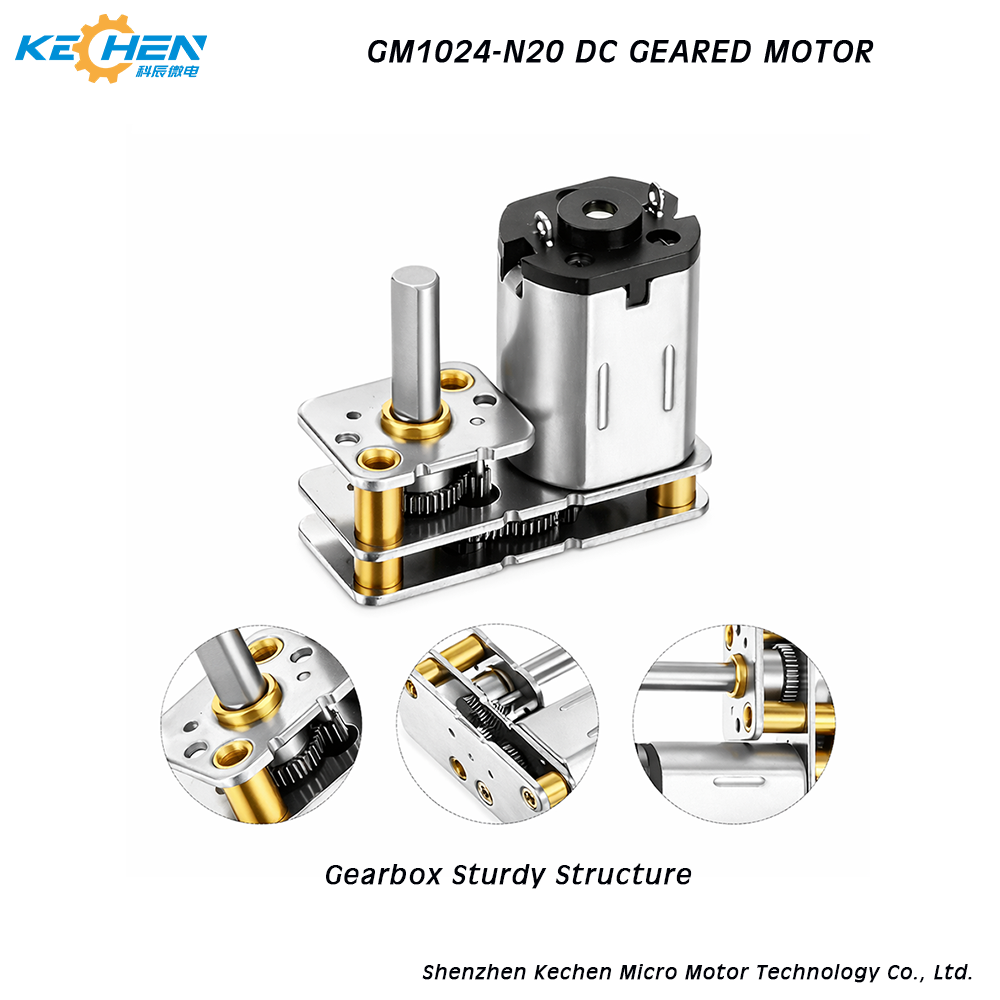

Motor Details View
Gearbox with Motor Data
GM1024-N20-09Z155-6.0V Specification
Reduction Ratio 10 30 50 100 150 218 250 298 350
Gearbox Length (mm) 9 9 9 9 9 9 9 9 9
No-load Speed (rpm) 2250 750 450 225 150 103 90 76 64
Rated Speed (rpm) 2000 667 400 200 133 92 80 67 57
Rated Torque (kg.cm) 0.02 0.04 0.06 0.12 0.12 0.17 0.2 0.24 0.28
Stalling Torque (kg.cm) 0.14 0.32 0.54 1.08 1.08 1.57 1.8 2.15 2.52
GM1024-N20-05540-12.0V Specification
Reduction Ratio 50 100 168 210 250 298 380 500 2000
Gearbox Length (mm) 9 9 9 9 9 9 9 9 12
No-load Speed (rpm) 250 125 74 60 50 42 33 25 6.3
Rated Speed (rpm) 212 106 63 50 42 36 28 21 5.3
Rated Torque (kg.cm) 0.06 0.12 0.13 0.17 0.2 0.24 0.3 0.4 0.8
Stalling Torque (kg.cm) 0.39 0.79 0.88 1.11 1.32 1.57 2.0 2.63 5.26
Technical Drawing Dimensions
Recommend Products
Recommended Motor Model A
Recommended Motor Model B
Recommended Motor Model C
Motor Raw Materials
High Quality Motor Raw Materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Enterprise Profile
Production Workshop Overview
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

These micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since its establishment, the company has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Product Quality Certifications
Application Scenario
Micro Motor Applications Map
Global Market Distribution
Global Network Distribution
International Trade Logistics
Frequently Asked Questions
Q1: What are the main features of the GM1024-N20VA micro gear motor?

A1: It is a micro DC motor integrated with a 24mm metal spur gearbox. It supports a wide rated voltage range from DC 3V up to 24V, provides a maximum rated torque of 1.8Kgf-cm, and features custom shaft configurations.

Q2: Can I get a custom shaft configuration for this motor?

A2: Yes. The standard shaft is Φ3mm D-cut 0.5mm, but we can also offer customized options such as M3, M4, and other specific dimensions as required.

Q3: Are magnetic encoders available for the GM1024-N20 series?

A3: Yes, magnetic encoders can be assembled with this micro metal gear motor for precise speed and position control.

Q4: What types of commutation options do you support?

A4: We support carbon brush, graphite brush, and metal brush commutations to match different lifespans and performance requirements.

Q5: In what applications are these micro DC gear motors commonly used?

A5: They are widely used in smart homes, commercial intelligent locks, medical detection, outdoor equipment, 5G applications, intelligent communication, AI robotics, and beauty tools.

Q6: What is the Minimum Order Quantity (MOQ) for these motors?

A6: The standard Minimum Order Quantity (MOQ) is 500 pieces per order.
